Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
A Connectors - Engine Compartment
A Connectors - Engine Compartment

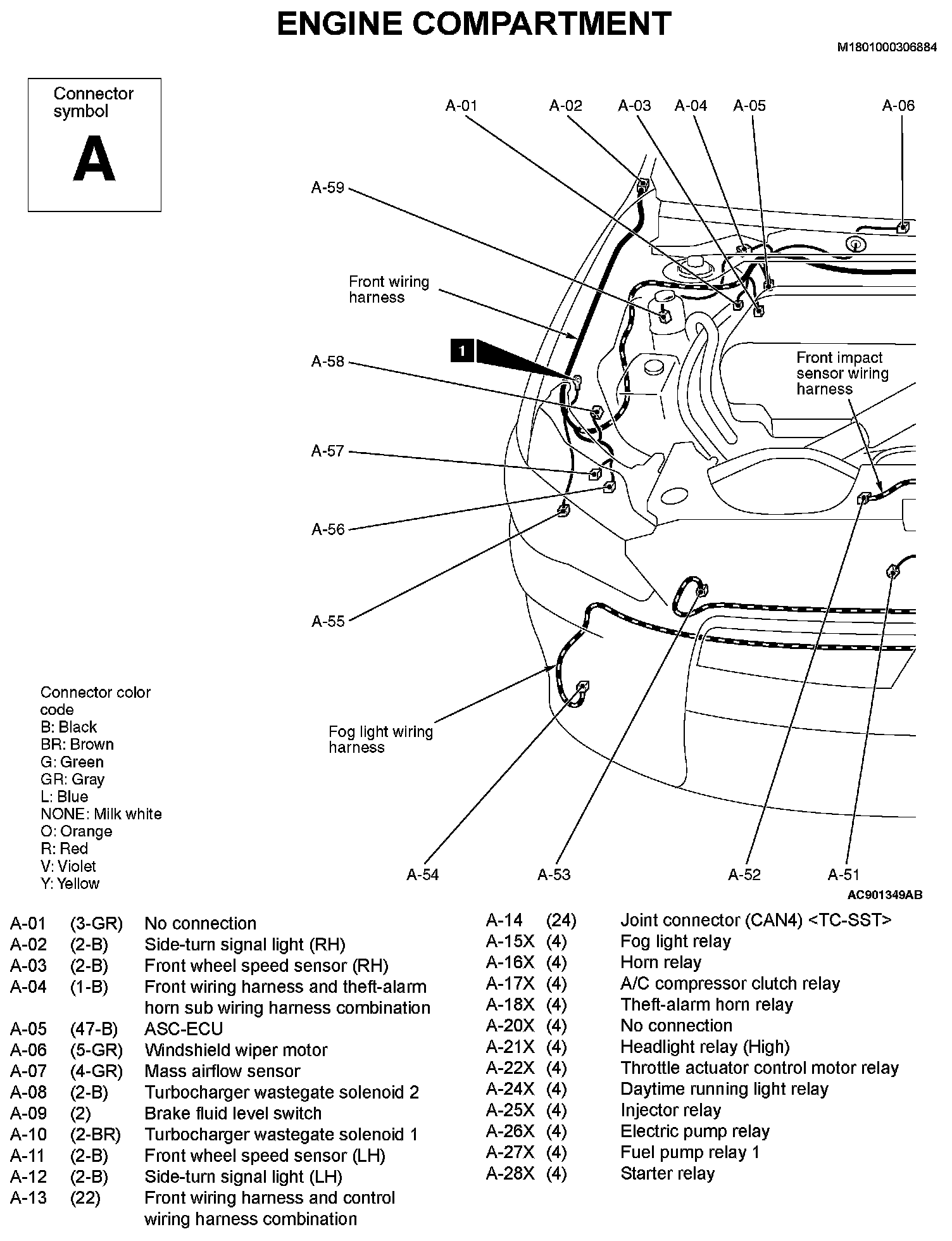

A-01 To A-59 (Part 1):

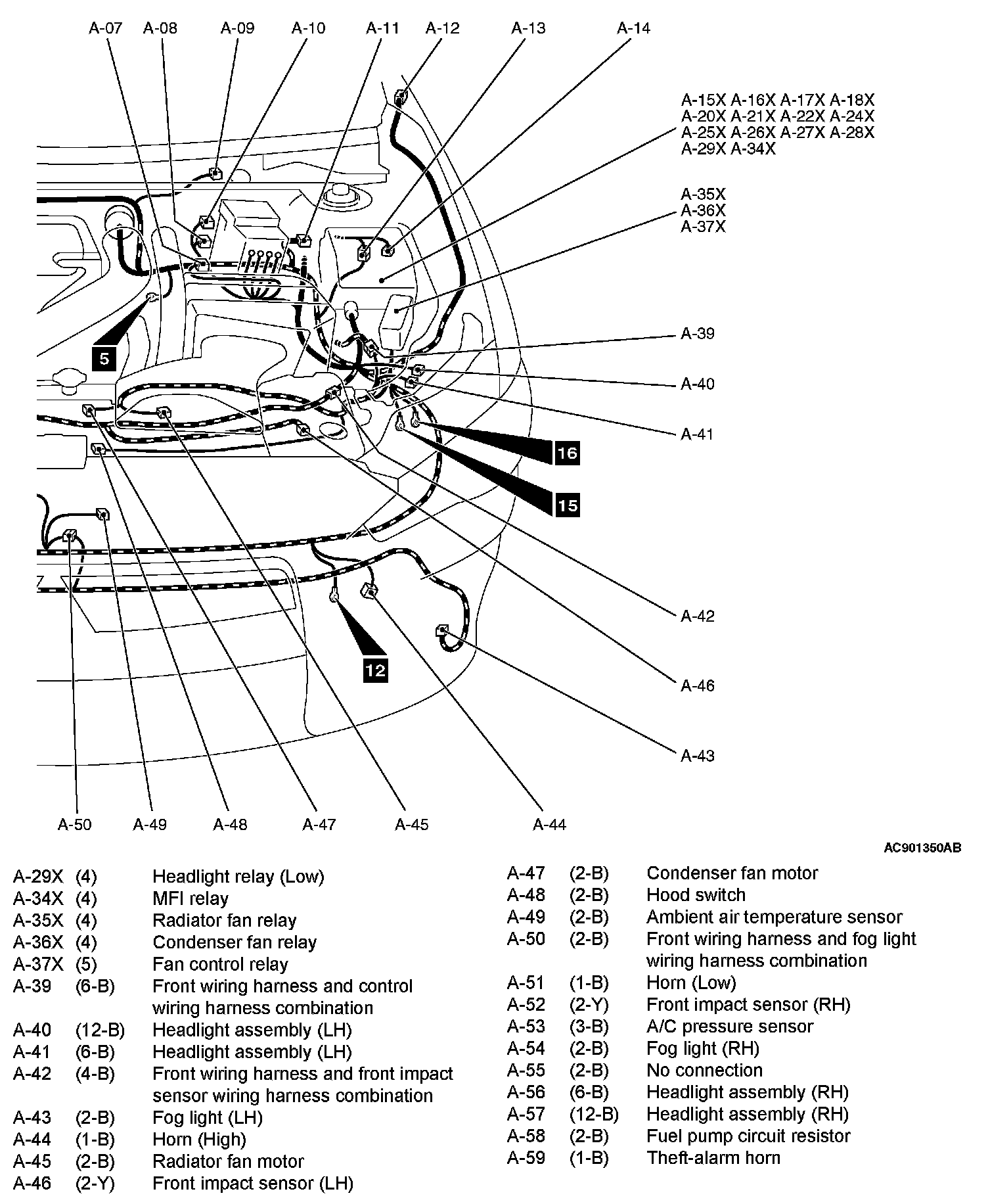

A-01 To A-59 (Part 2):
