Inspection Procedure 1

Inspection Procedure 1: None Of Taillights Illuminates.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

TECHNICAL DESCRIPTION (COMMENT)
If none of taillights illuminates, the taillight switch input circuit or ETACS-ECU may have a problem.

TROUBLESHOOTING HINTS
- Malfunction of column switch
- Malfunction of the ETACS-ECU
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. License plate light operation check
Check that the license plate light illuminates normally.

Q: Does license plate light work normally?

YES : Go to Step 2.

NO : Replace the ETACS-ECU.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

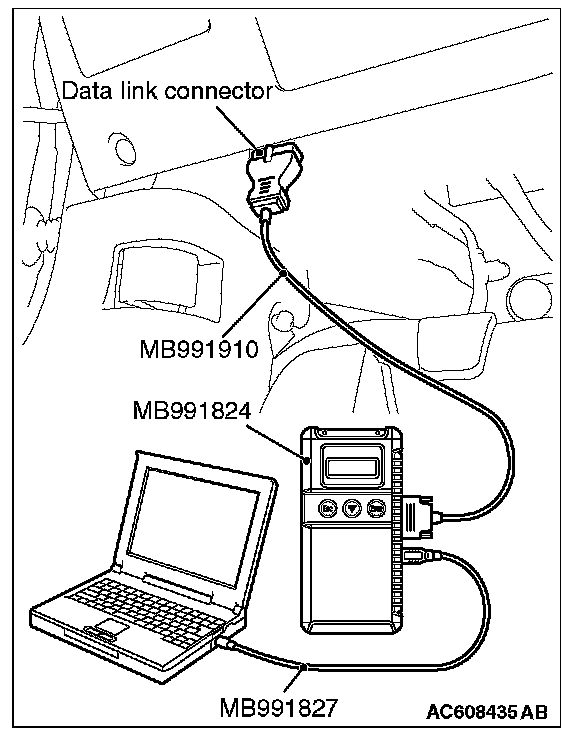

1. Connect scan tool MB991958. Refer to "How to connect scan tool (M.U.T.-III)." How to Connect the Scan Tool (M.U.T.-III)
2. Turn the ignition switch to the "ON" position.
3. Check whether the ETACS-ECU related DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the ETACS-ECU. Refer to ETACS, Diagnosis. Diagnostic Trouble Code Descriptions

NO : Go to Step 3.

STEP 3. Using scan tool MB991958, check data list.

Use the ETACS-ECU data list to check the signals related to the taillight illumination.
- Turn the ignition switch to the "ACC" position.
- Turn the taillight switch to the "ON" position.

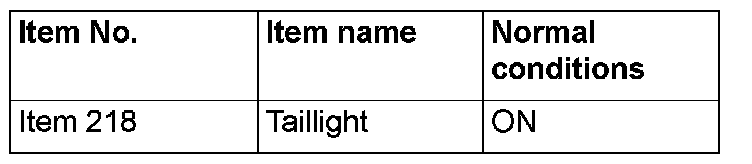

Q: Does scan tool MB991958 display the items "Taillight" as normal condition?

YES : Go to Step 4.

NO : Troubleshoot the ETACS-ECU. Trouble Symptom Chart For Input Signal

STEP 4. Retest the system

Check that the taillight illuminates normally.

Q: Does the taillight work normally?

YES : The trouble can be an intermittent malfunction.

NO : Replace the ETACS-ECU.
