Taillight Removal and Installation
Taillight Removal and Installation

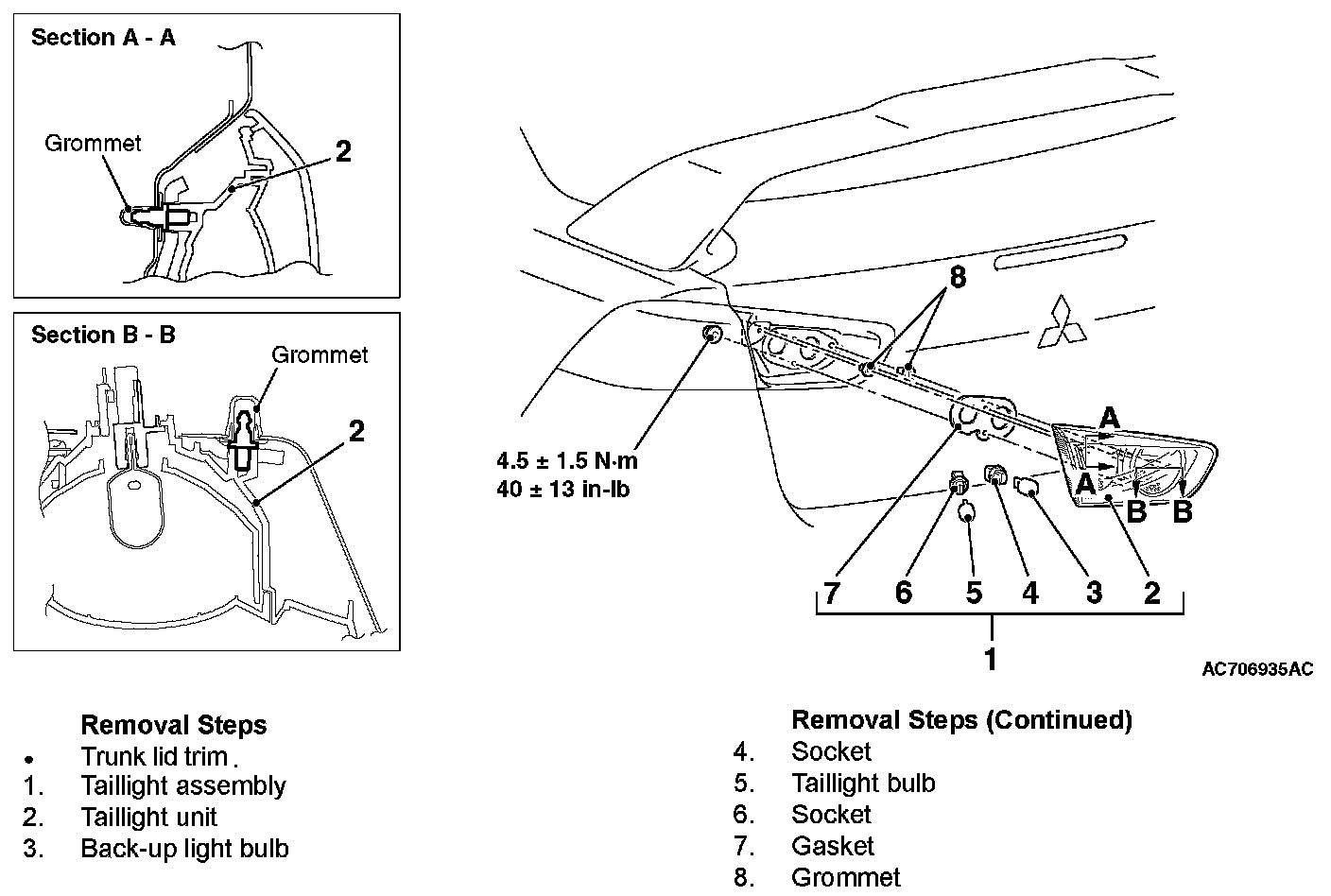

TAILLIGHT REMOVAL AND INSTALLATION
Removal Steps 1-8:
