Horn: Service and Repair

HORN

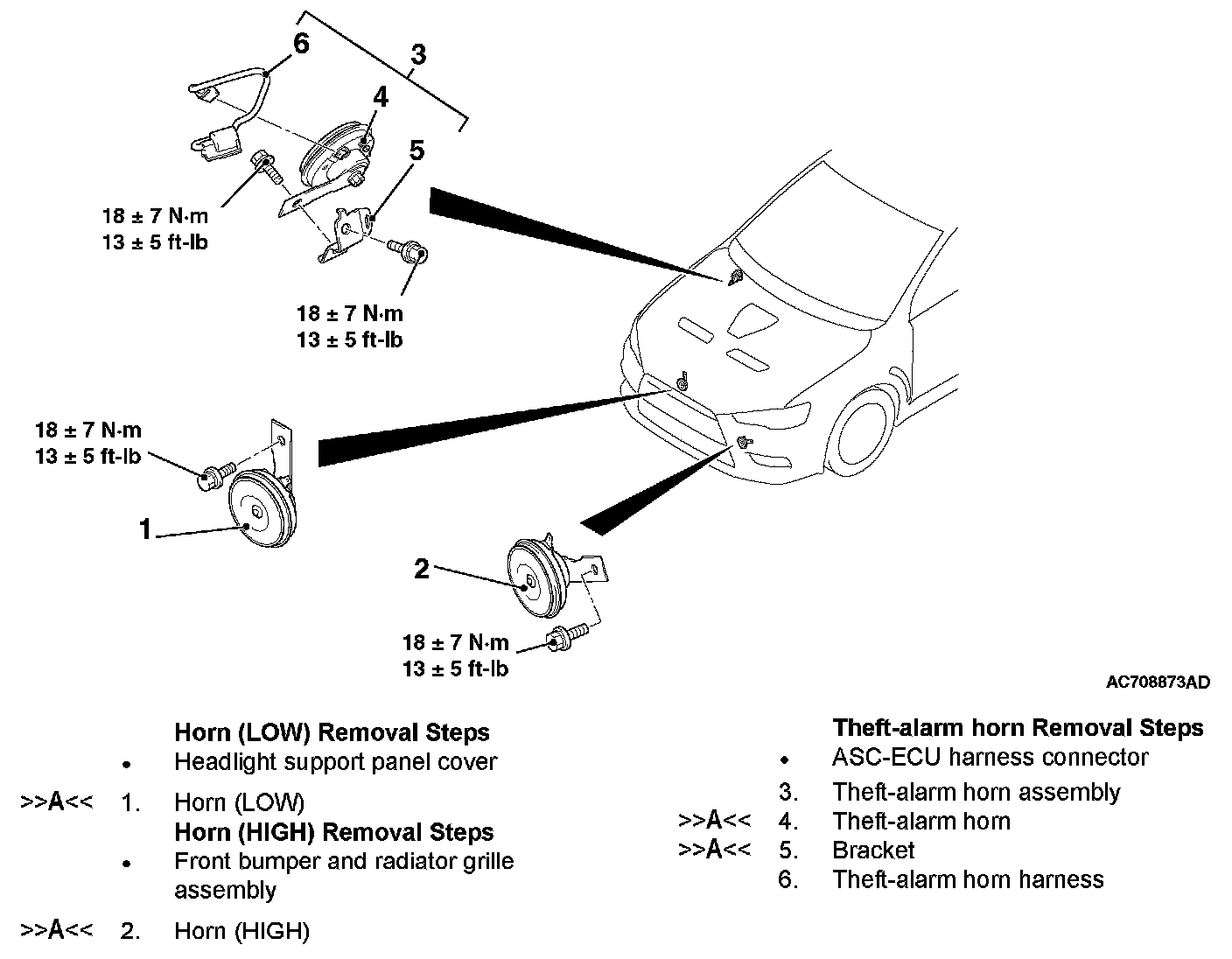

REMOVAL AND INSTALLATION

Removal Steps 1-6:

INSTALLATION SERVICE POINT

]]A[[ BRACKET/THEFT-ALARM HORN/HORN (HIGH)/HORN (LOW) INSTALLATION

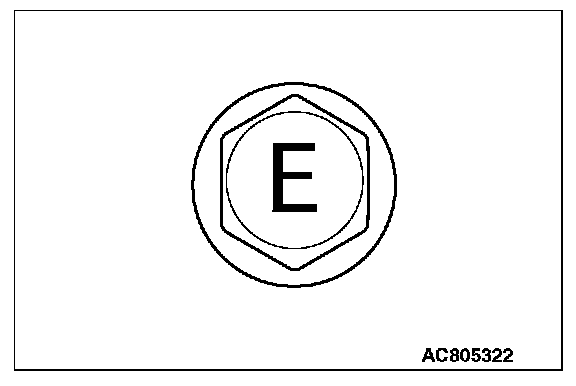

Use the ground bolts as the mounting bolts for bracket, theft-alarm horn, horn (HIGH) and horn (LOW). The ground bolts have "E" mark on the bolt heads.
