Symptom Chart

SYMPTOM CHART

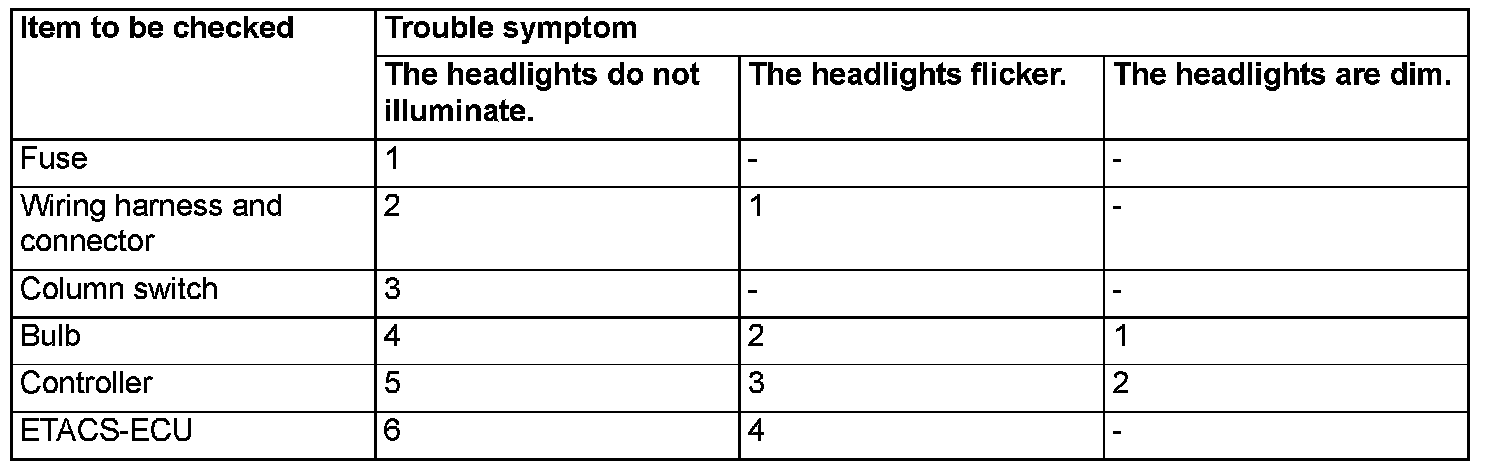

Symptom Chart:

NOTE:
1. The numbers indicate the sequence in which the component is checked.
2. For the troubleshooting of other than the above, refer to Trouble Symptom Chart. Trouble Symptom Chart
3. If ETACS-ECU fails, only the low-beam headlights will illuminate as a fail-safe measure.
