Headlamp Bulb: Service and Repair
REPLACE THE BULBHEADLIGHT BULB (LOW-BEAM) REPLACEMENT [VEHICLES WITHOUT DISCHARGE HEADLIGHT]
CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

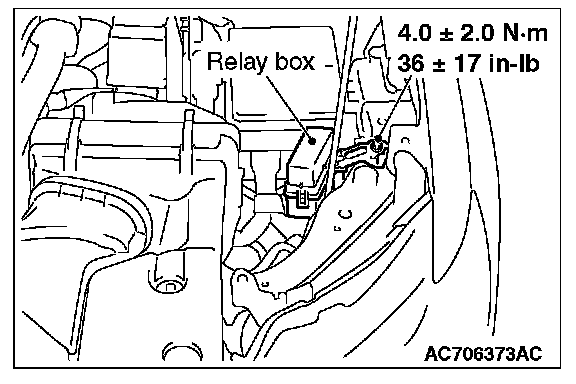

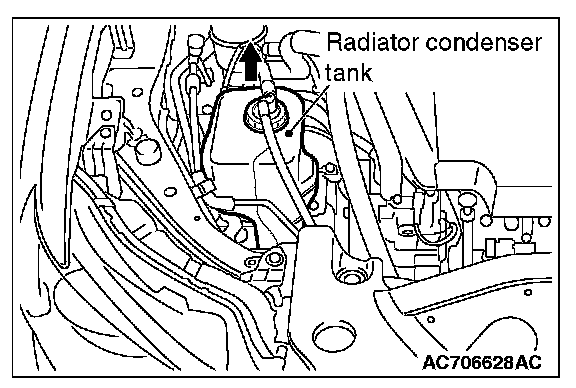

1. When replacing the right bulb, lift the radiator condenser tank upward, and remove it. When replacing the left bulb, remove the relay box.

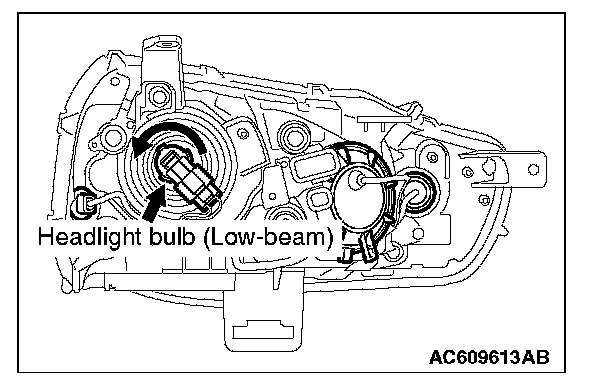

2. Disconnect the connector, and twist the headlight bulb (low-beam) to remove.
HEADLIGHT BULB (HIGH-BEAM) REPLACEMENT [VEHICLES WITHOUT DISCHARGE HEADLIGHT]
CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.
1. Twist the socket cover to remove.
2. Disconnect the connector, and twist the headlight bulb (high-beam) to remove.
DAYTIME RUNNING LIGHT BULB REPLACEMENT [VEHICLES WITH DISCHARGE HEADLIGHT]

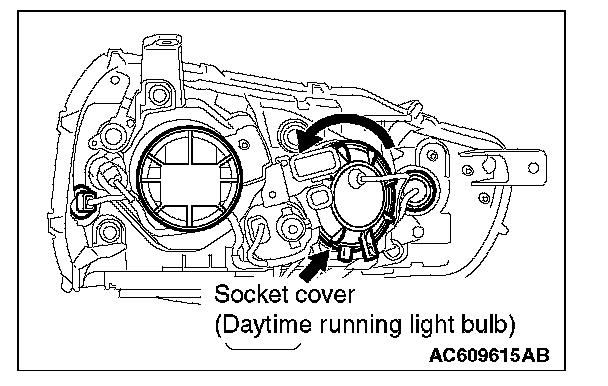

1. Twist the socket cover to remove.
2. Twist the daytime running light socket to remove it.
POSITION LIGHT BULB REPLACEMENT

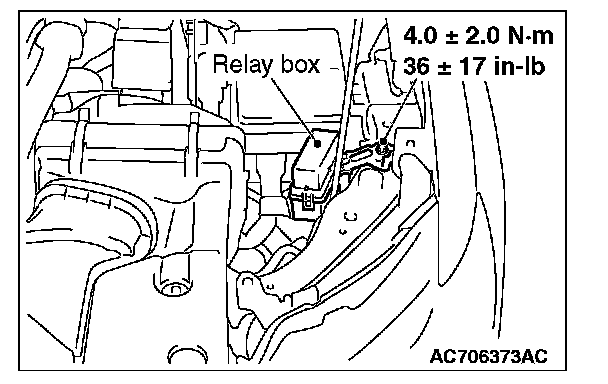

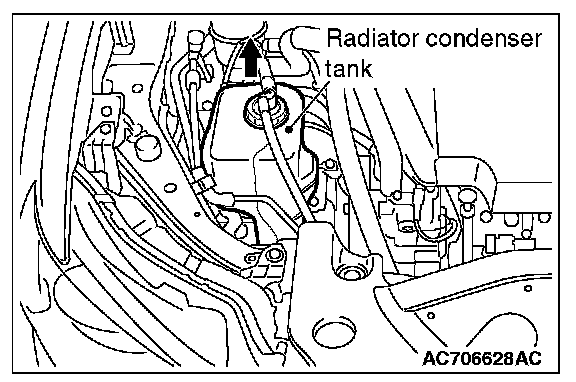

1. When replacing the right bulb, lift the radiator condenser tank upward, and remove it. When replacing the left bulb, remove the relay box. [Vehicles without discharge headlight]

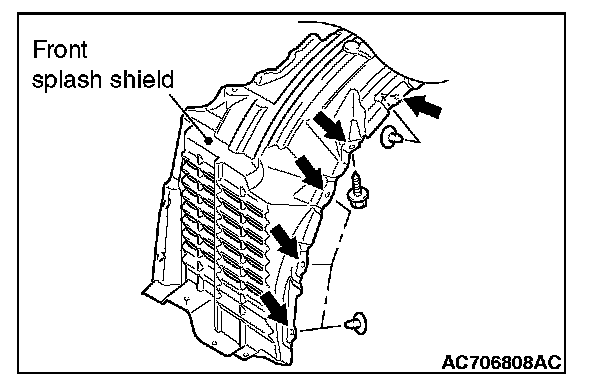

2. Remove the front splash shield assembling clip shown in the figure, and turn up the front splash shield. [Vehicles with discharge headlight]

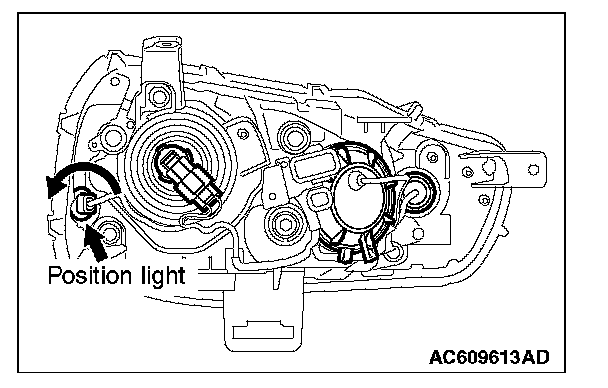

3. Twist the position light socket to remove.
