Headlight Adjustment (Low-Beam)

HEADLIGHT ADJUSTMENT (LOW-BEAM)

1. The low-beam headlight will project on the screen upper edge of the beam (cut-off).

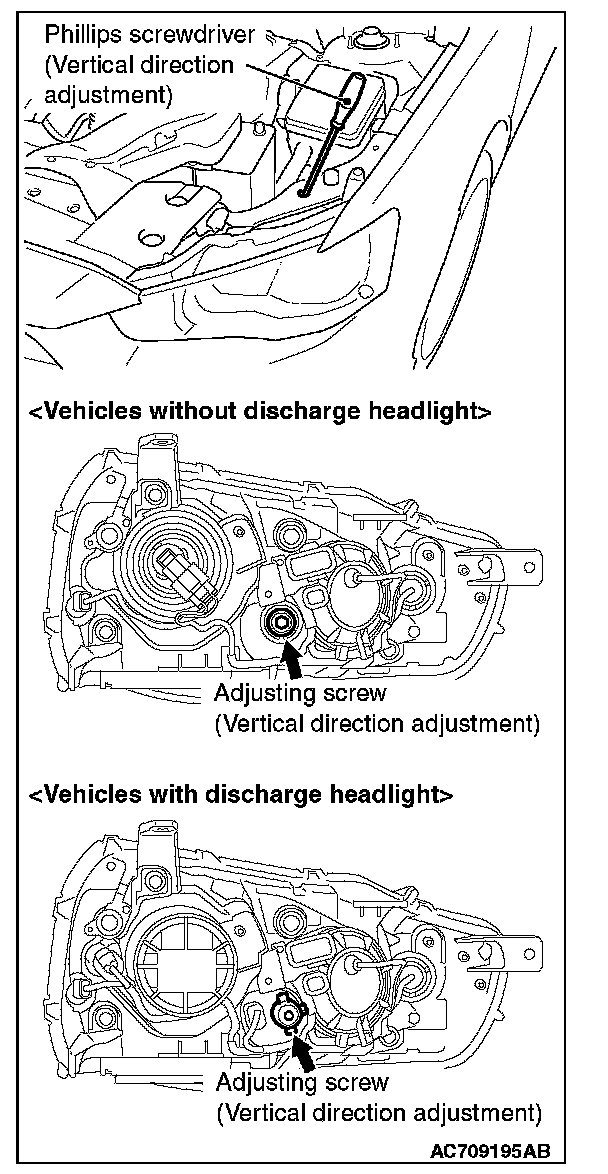

2. Turn the adjusting screw to achieve the specified low-beam cut-off location on the aiming screen.

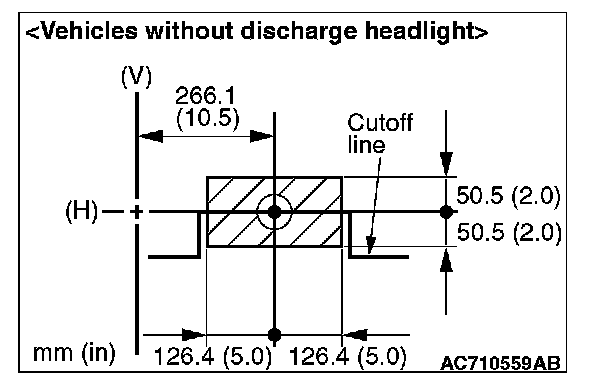

Standard value [Vehicles without discharge headlight]: (Vertical direction) Horizontal line (H) ± 50.5 mm (± 2.0 inches) (± 0.38 degrees angle)
(Horizontal direction): ± 126.4 mm (± 5.0 inches) (± 0.95 degrees angle) from the axis, which is 266.1 mm (10.5 inches) (2 degrees angle) rightward from the vertical line (V)

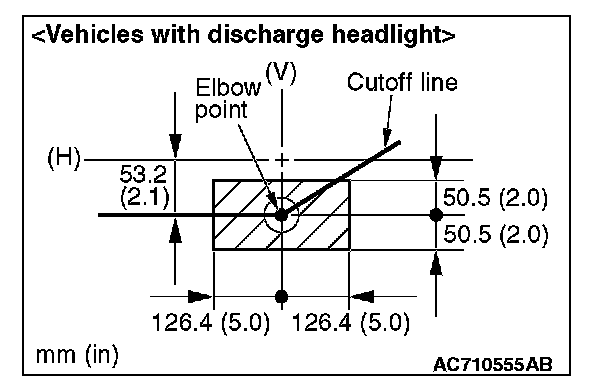

Standard value [Vehicles with discharge headlight]: (Vertical direction) 53.2 mm (2.1 inches) (0.4 degrees) below horizontal line (H). ± 50.5 mm (± 2.0 inches) (± 0.38 degrees angle)
(Horizontal direction): Elbow point intersects the vertical line (V). ± 126.4 mm (± 5.0 inches) ± 0.95 degrees angle)

CAUTION: Do not cover a headlight for more than three minutes to prevent the plastic headlight lens deformation.

NOTE: High-beam pattern should be correct when the low-beams are adjusted properly.
