Fog/Driving Lamp: Service and Repair
REMOVAL AND INSTALLATION

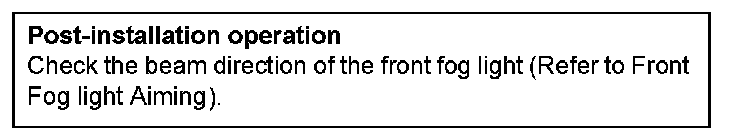

Post-Installation Operation:

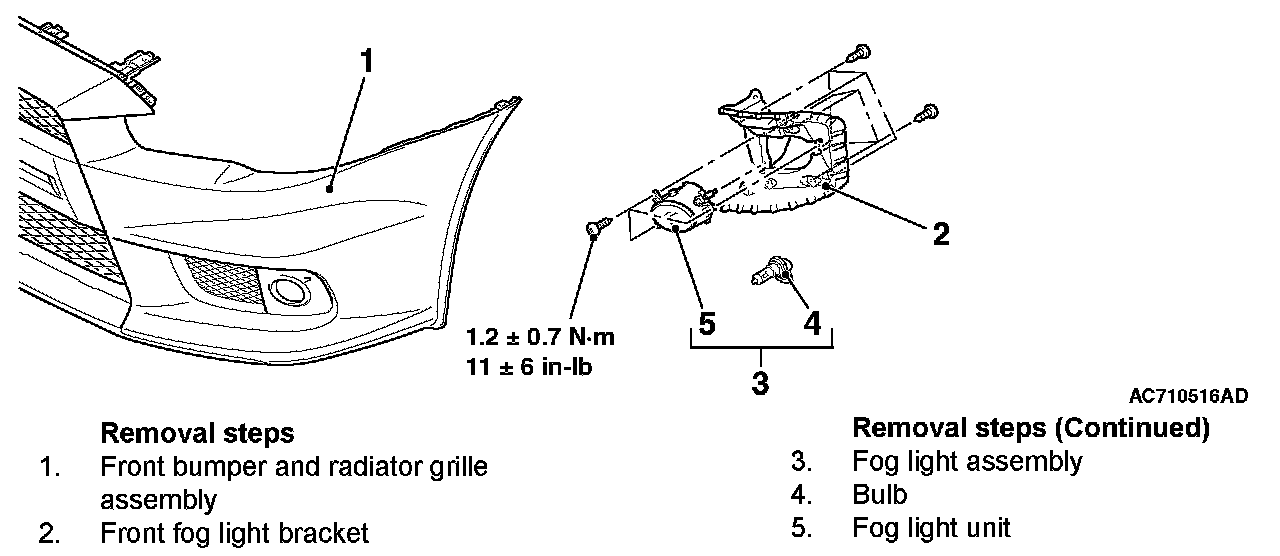

Removal Steps 1-5:
