FOG LIGHT ADJUSTMENT

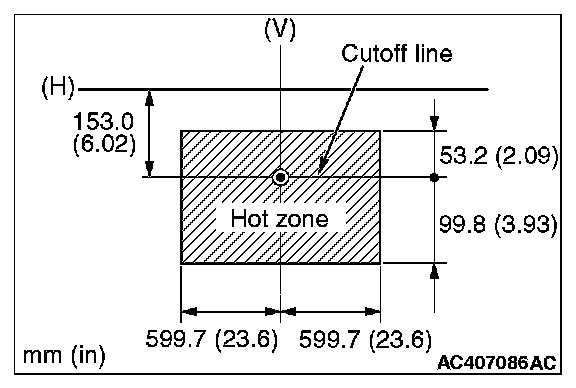

1. Check if the beam shining onto the screen is at the standard value.

Standard value:
(Cutoff line direction): The horizontal line 153.0 mm (6.02 inches) (1.15 degrees angle) below the horizontal line (H)

Limit:
(Vertical direction): Area from 53.2 mm (2.09 inches) (0.4 degrees angle) above the cutoff line to 99.8 mm (3.93 inches) (0.75 degrees angle) below the cutoff line
(Horizontal direction): Vertical line (V) ± 599.7 mm (± 23.6 inches) (± 4.5 degrees angle)

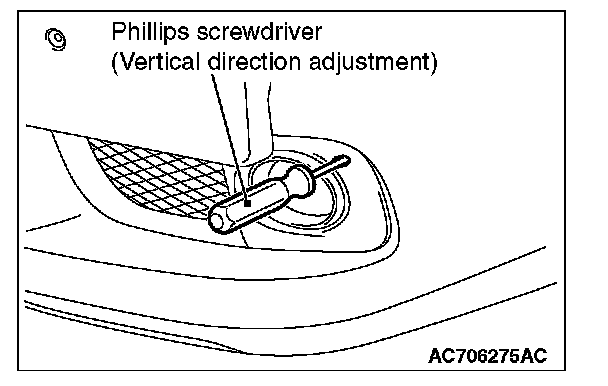

2. If it is not within the standard value range, adjust by turning the adjusting screw.

NOTE: The horizontal direction is non-adjustable. If deviation of the light beam axis exceeds the standard value, check that the mounting location or some other points are not faulty.
