Ambient Light Sensor: Service and Repair

LIGHTING CONTROL SENSOR REMOVAL AND INSTALLATION

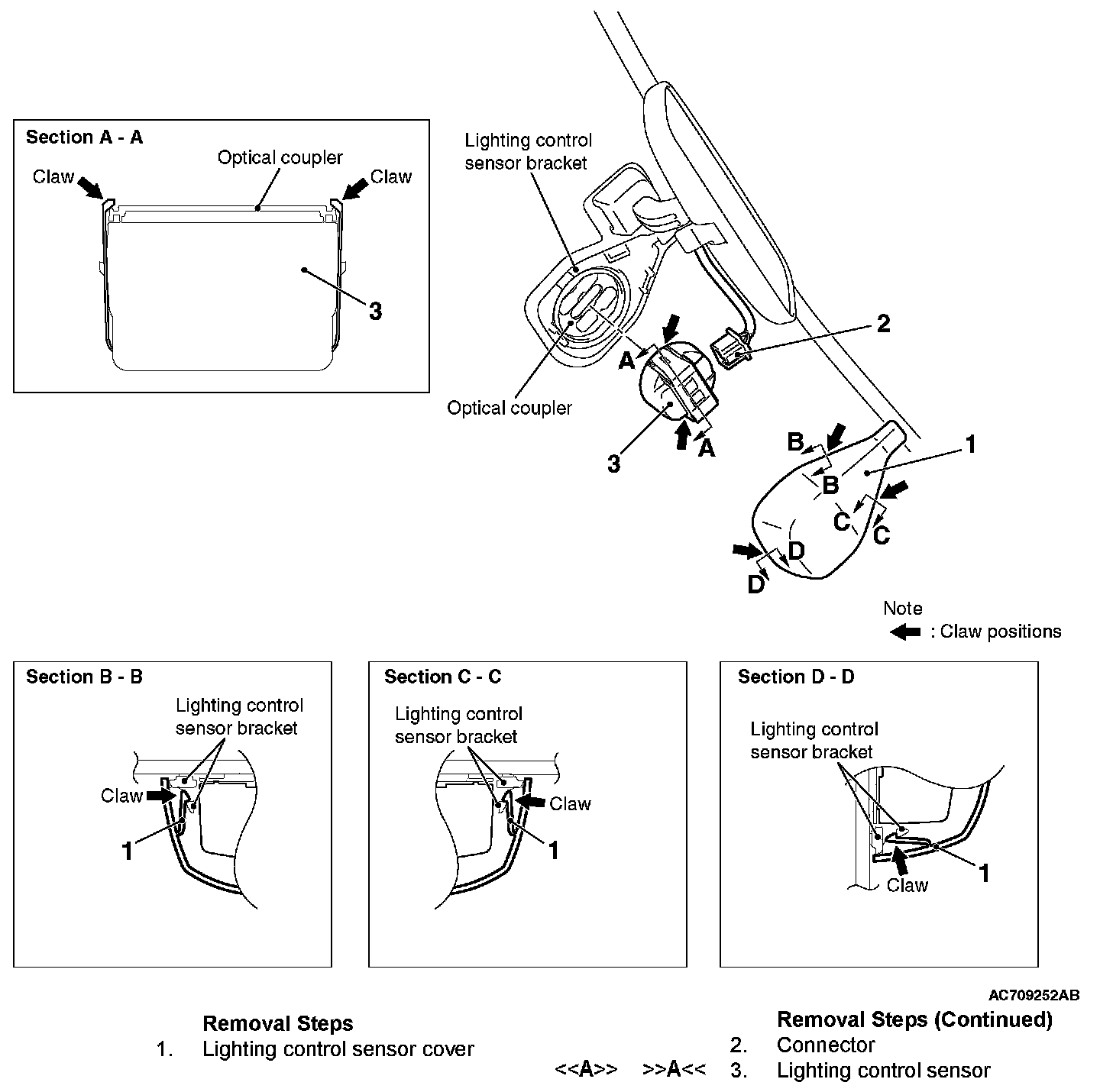

Removal Steps 1-3:

REMOVAL SERVICE POINT

[[A]] LIGHTING CONTROL SENSOR REMOVAL

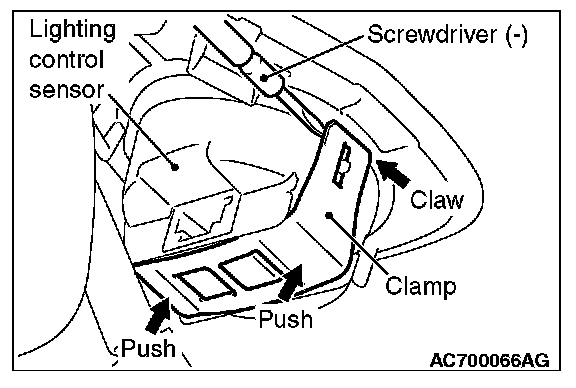

While pushing the clamp to the windshield side, pry up the clamp to disengage the right and left claws using the screwdriver (-), and then remove the lighting control sensor.

INSTALLATION SERVICE POINT

]]A[[ LIGHTING CONTROL SENSOR INSTALLATION

CAUTION: After executing the lighting control sensor (rain sensor) adaptation, do not touch the lighting control sensor (or do not move it from the fixed position).

- Mount the lighting control sensor onto the optical coupler, and then connect the connector.
- When reusing the lighting control sensor or when the lighting control sensor is pushed to check the installation condition, install the connector and the lighting control sensor cover and wipe the windshield thoroughly. When the windshield is dry, execute the lighting control sensor (rain sensor) adaptation. [Refer to - Lighting Control Sensor (Rain Sensor) Adaptation].

NOTE: Be careful not to touch the lighting control sensor receiver. (The lighting control sensor receiver has limited resistance to oil.)
