Instrument Cluster / Carrier: Tools and Equipment

SPECIAL TOOLS

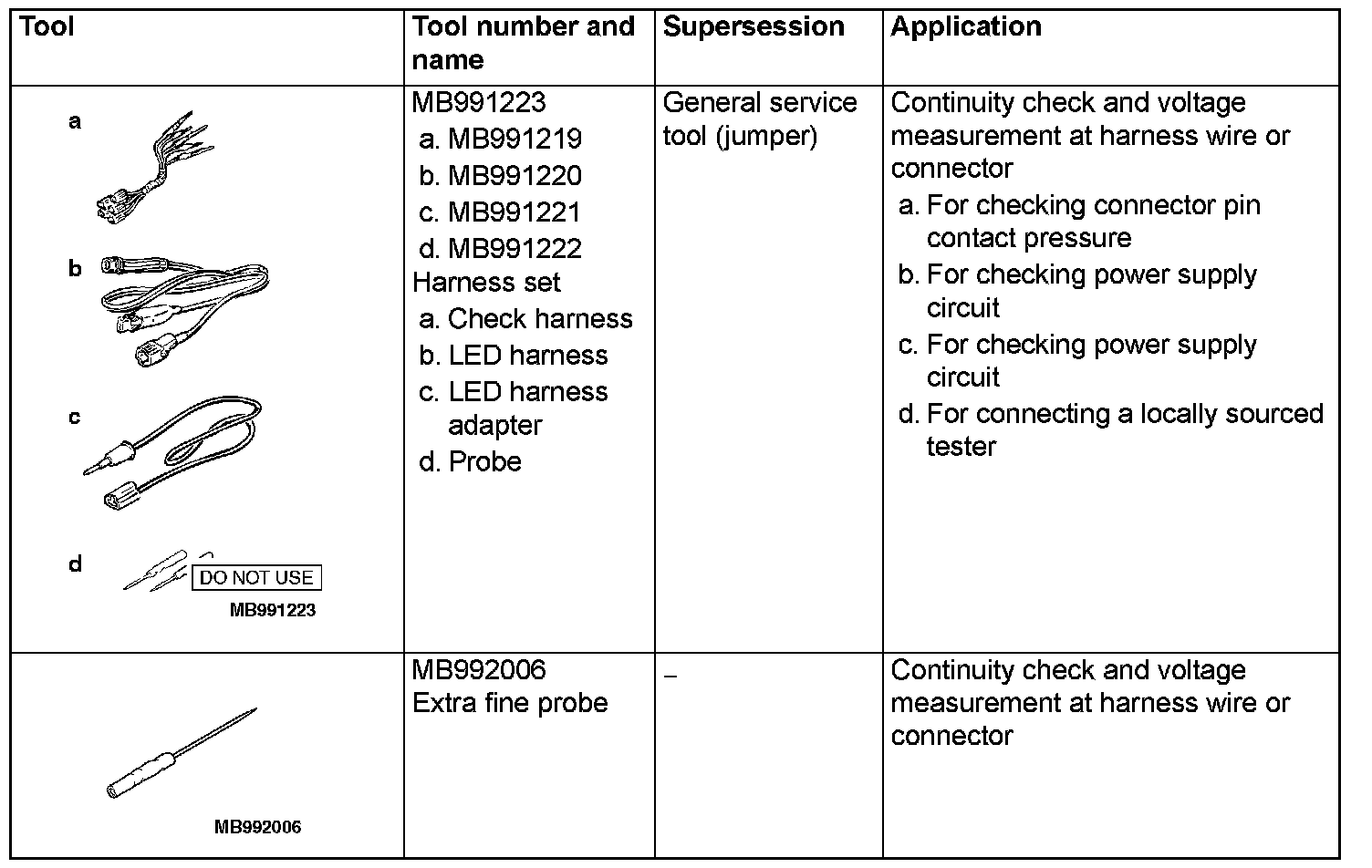

Special Tools (Part 1):




Special Tools (Par 2):
