Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Component Tests and General Diagnostics >> Meter Information Switch Check

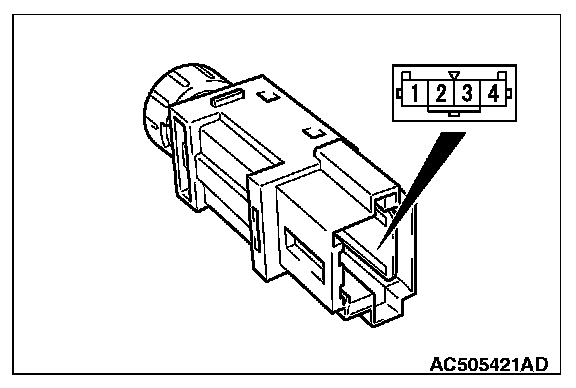

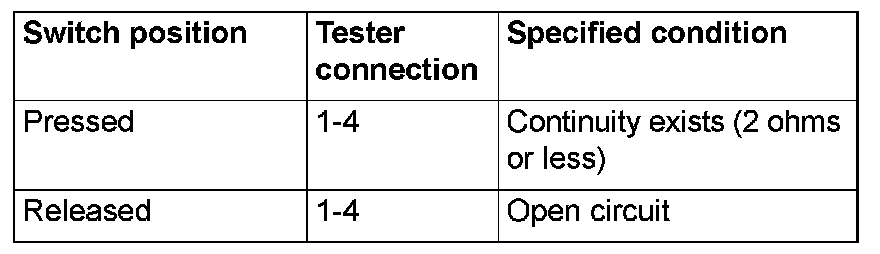

Meter Information Switch Check

METER INFORMATION SWITCH CHECK
