Fuel Level Sensor Float Height

FUEL LEVEL SENSOR FLOAT HEIGHT

1. Remove the fuel pump module (Refer to Fuel Tank). Removal and Replacement

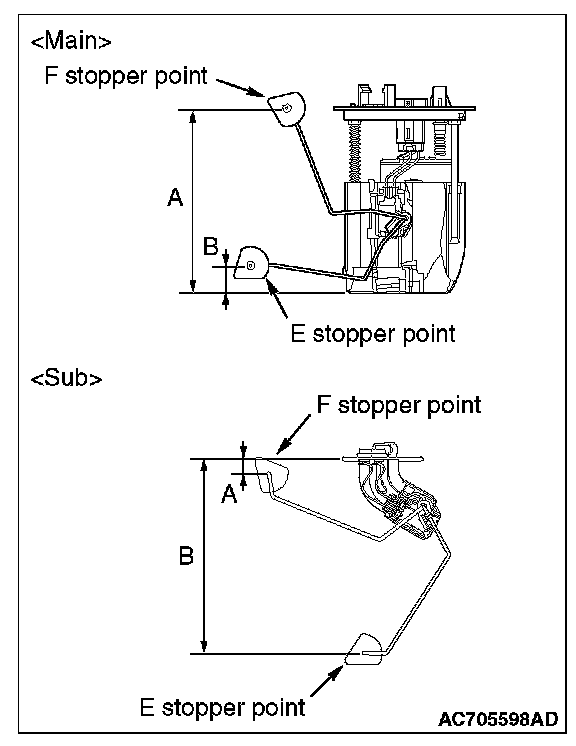

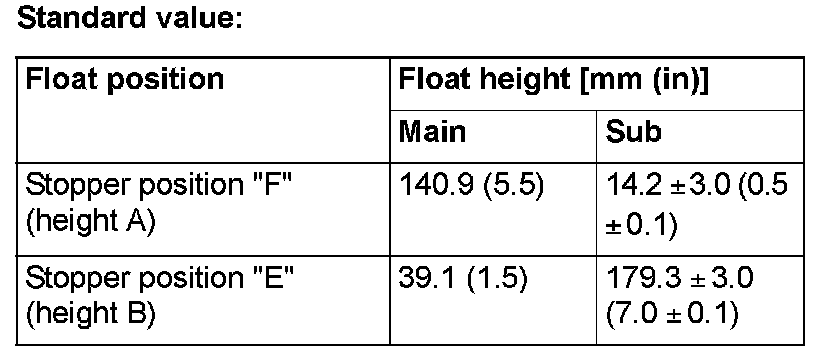

2. When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.
