Fuel Level Sensor Check
FUEL LEVEL SENSOR CHECKNOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR
1. Remove the fuel pump module (Refer to Fuel Tank). Removal and Replacement

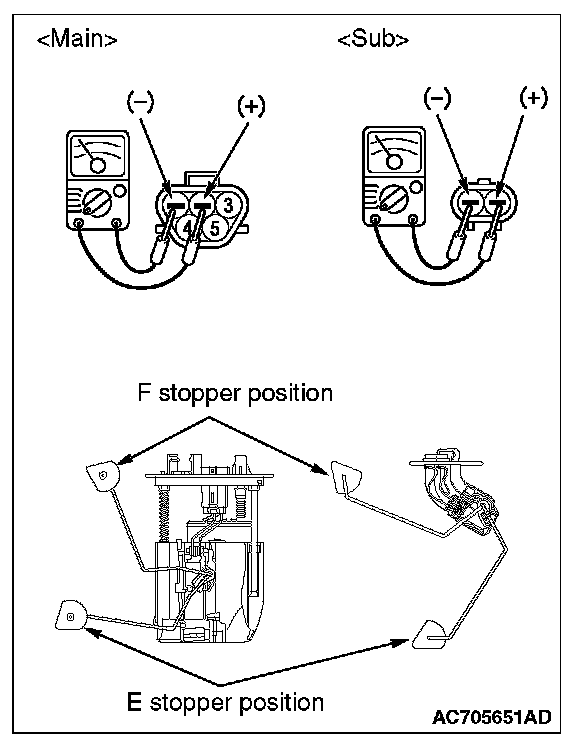

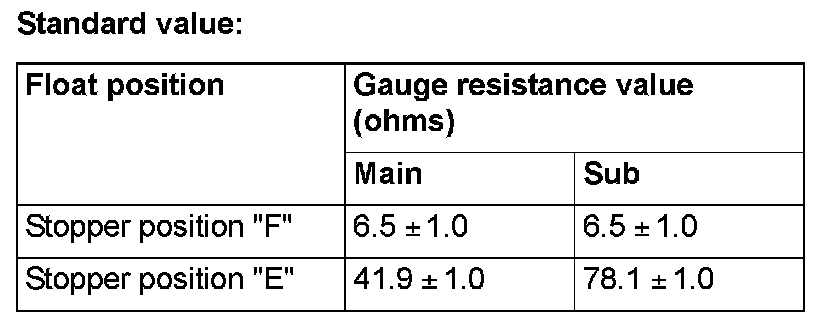

2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
