Cigarette Lighter: Testing and Inspection

INSPECTION

CIGARETTE LIGHTER CHECK







- Take out the plug, and check for a worn edge on the element spot connection, and for shreds of tobacco or other material on the element.

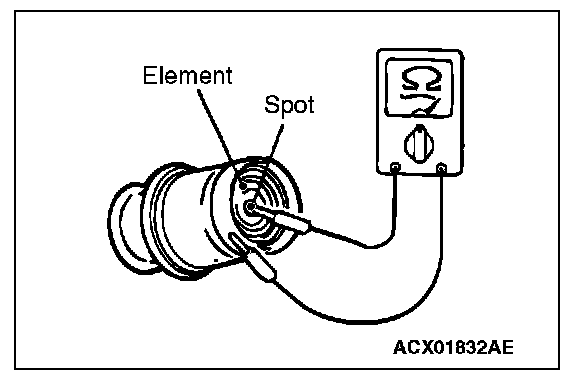

- Using an ohmmeter, check that the element resistance value is 1.7 ohms.
