Cabin Temperature Sensor / Switch: Service and Repair

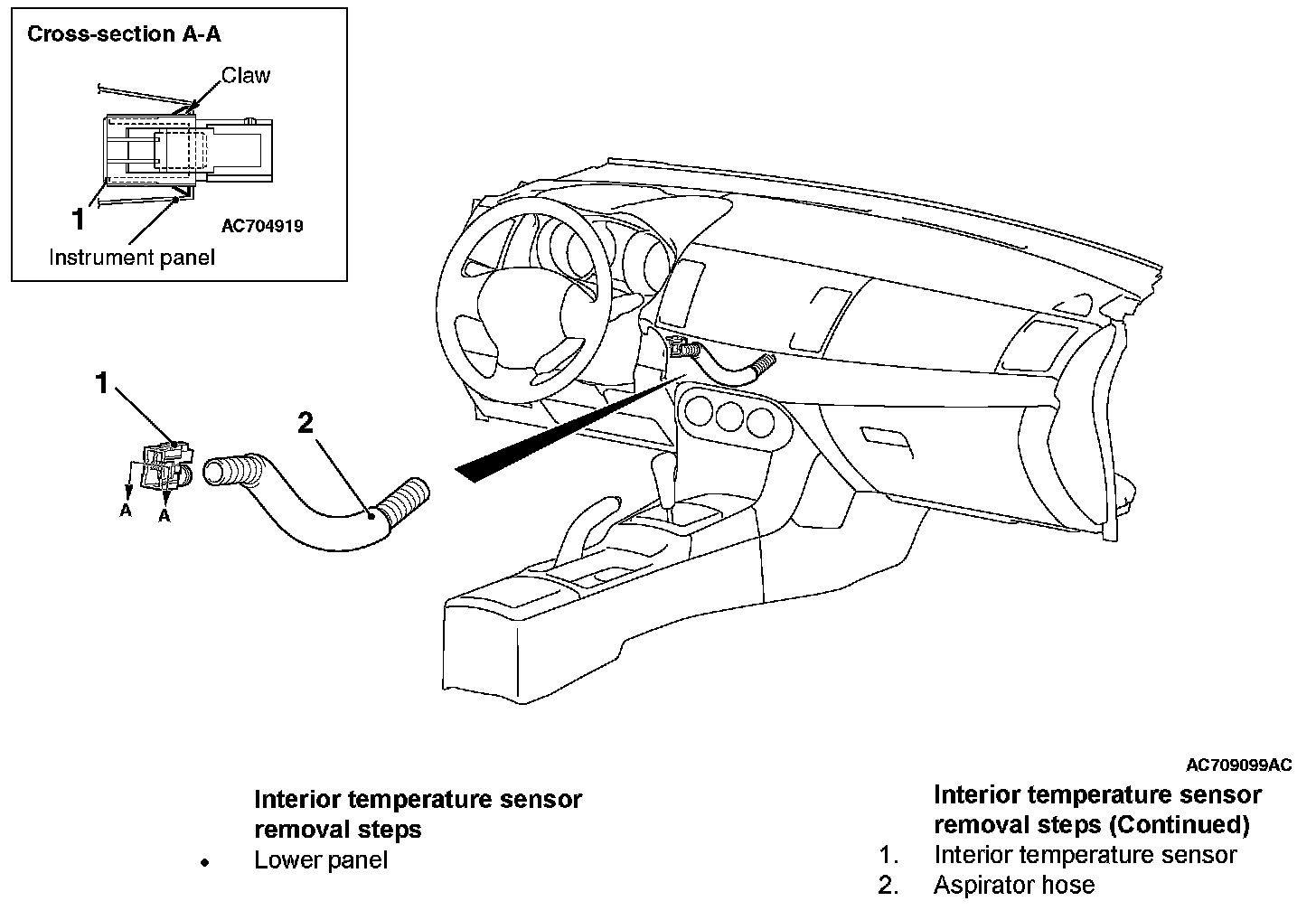

INTERIOR TEMPERATURE SENSOR
REMOVAL AND INSTALLATION
Removal Steps 1-2:
