How to Read Circuit Diagrams

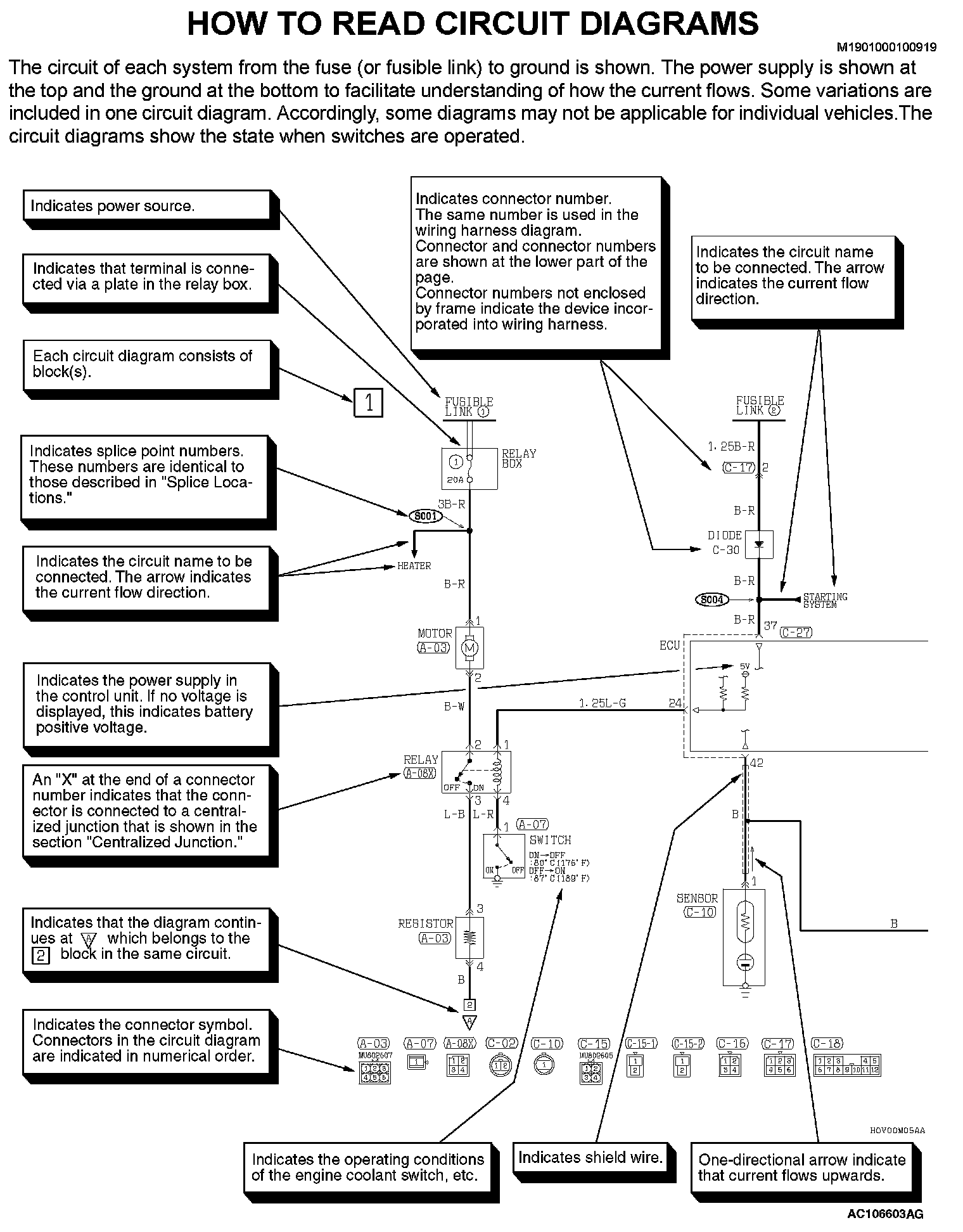

How To Read Circuit Diagrams (Part 1):

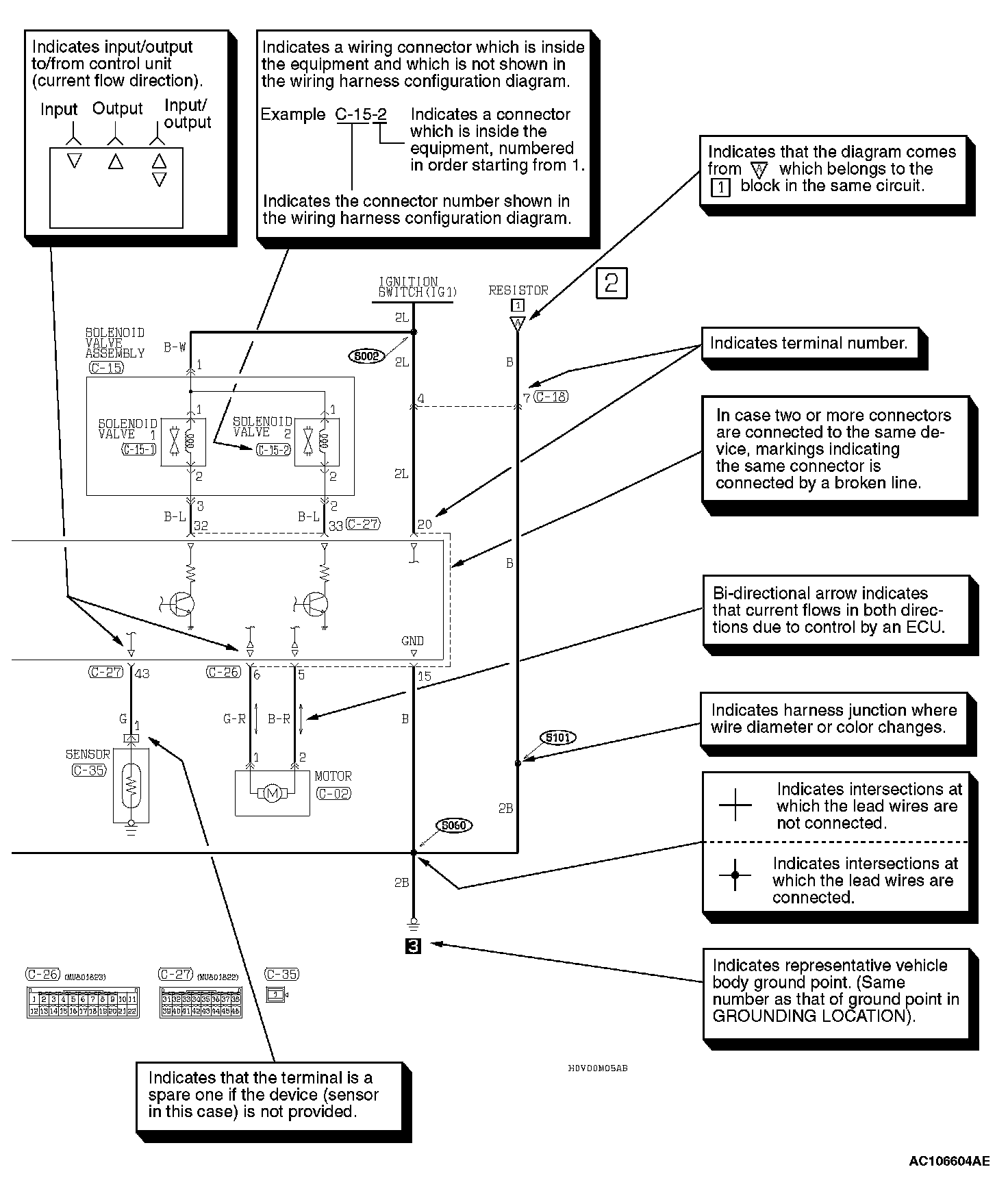

How To Read Circuit Diagrams (Part 2):

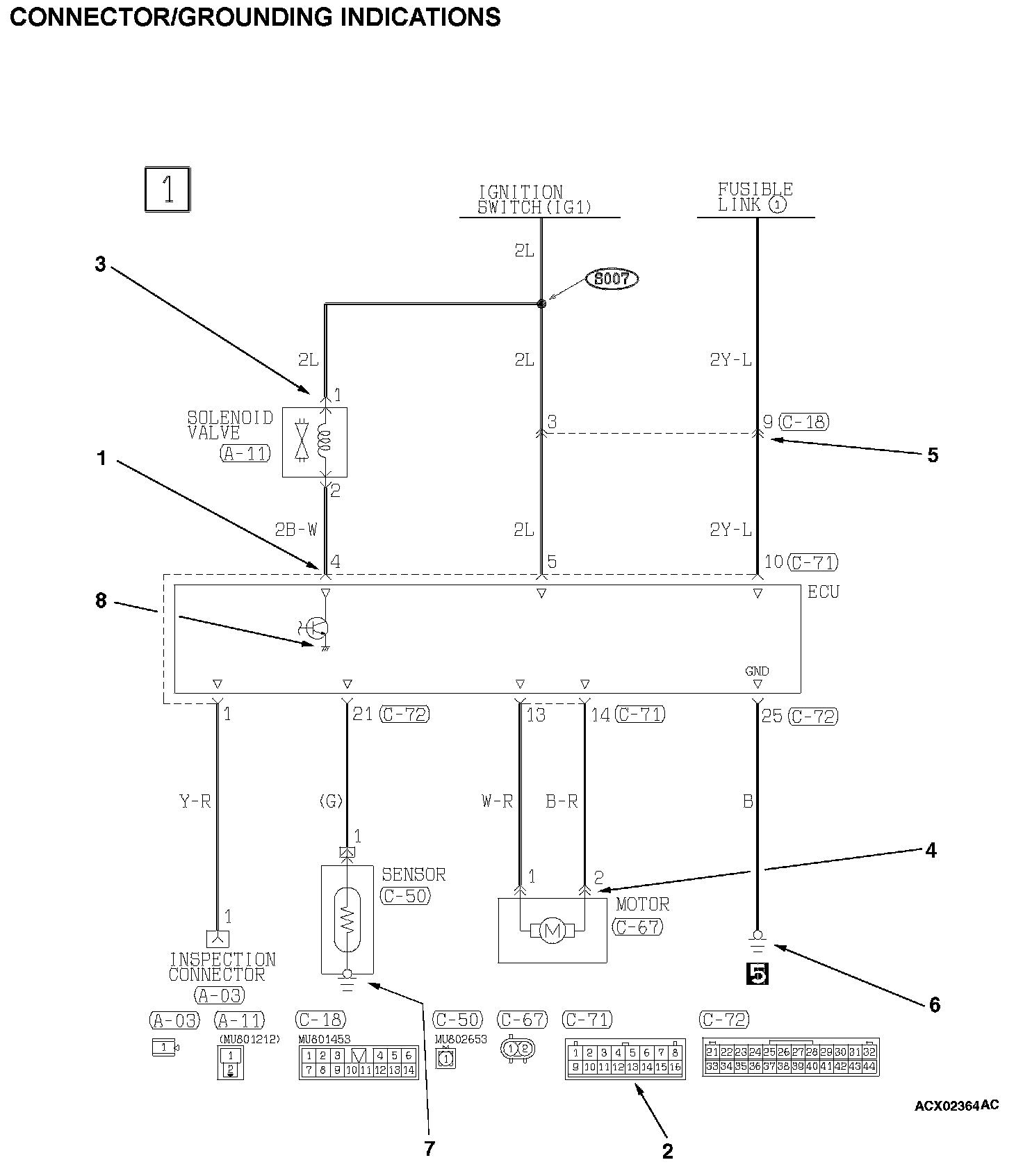

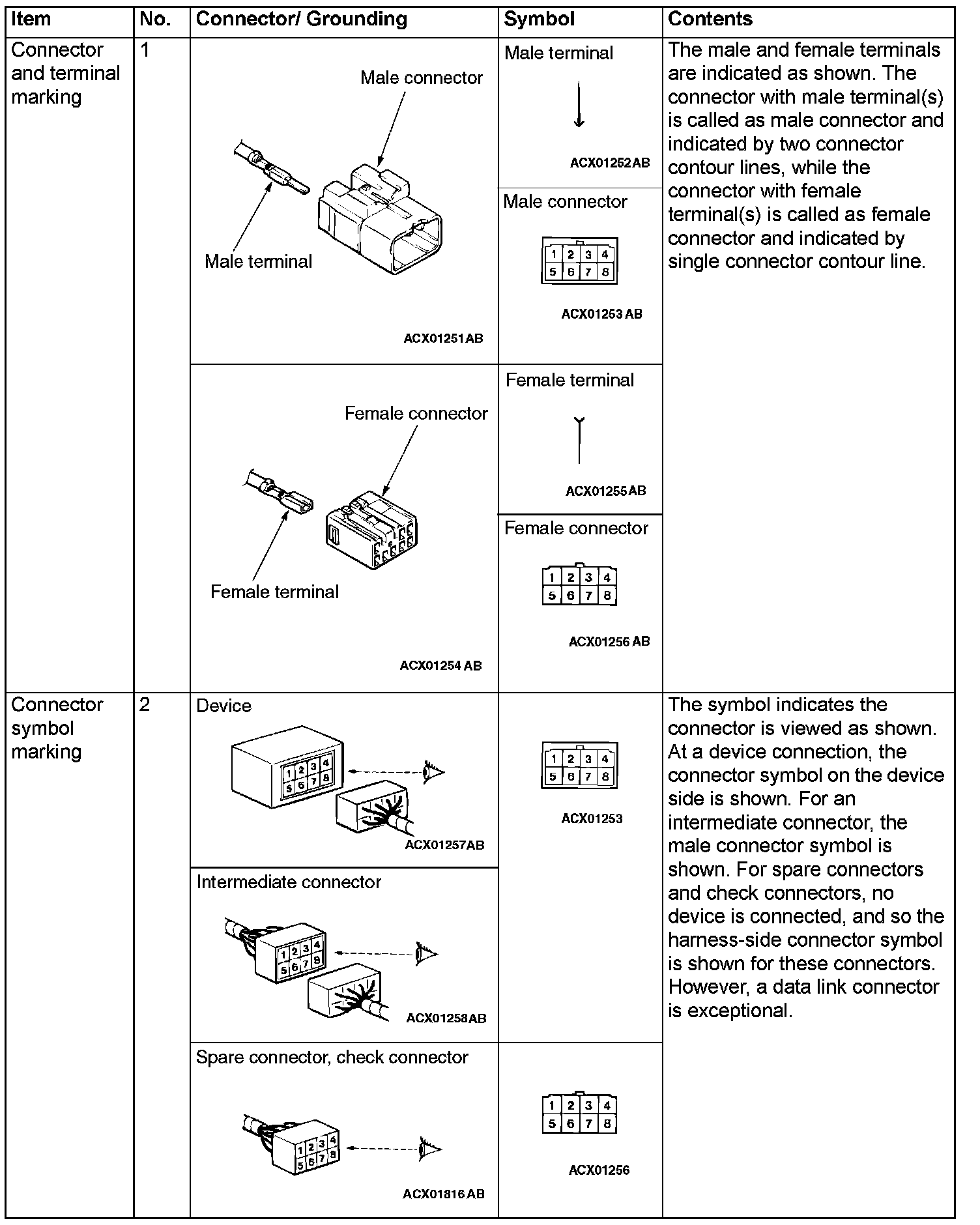

Connector/Grounding Indications:
