A/C Compressor Clutch Test

A/C COMPRESSOR CLUTCH TEST

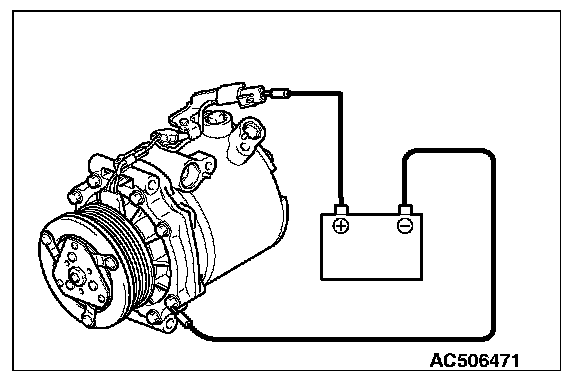

1. Disconnect the A/C compressor clutch connector to the A/C compressor clutch.







2. Connect positive battery voltage directly to the connector for the A/C compressor clutch.
3. Supply a ground to the A/C compressor assembly.
4. If the A/C compressor clutch is normal, there will be a "click." If the pulley and armature do not make contact ("no click"), there is a malfunction.
