Air Door Actuator / Motor: Service and Repair

MOTORS AND TRANSISTOR

REMOVAL AND INSTALLATION

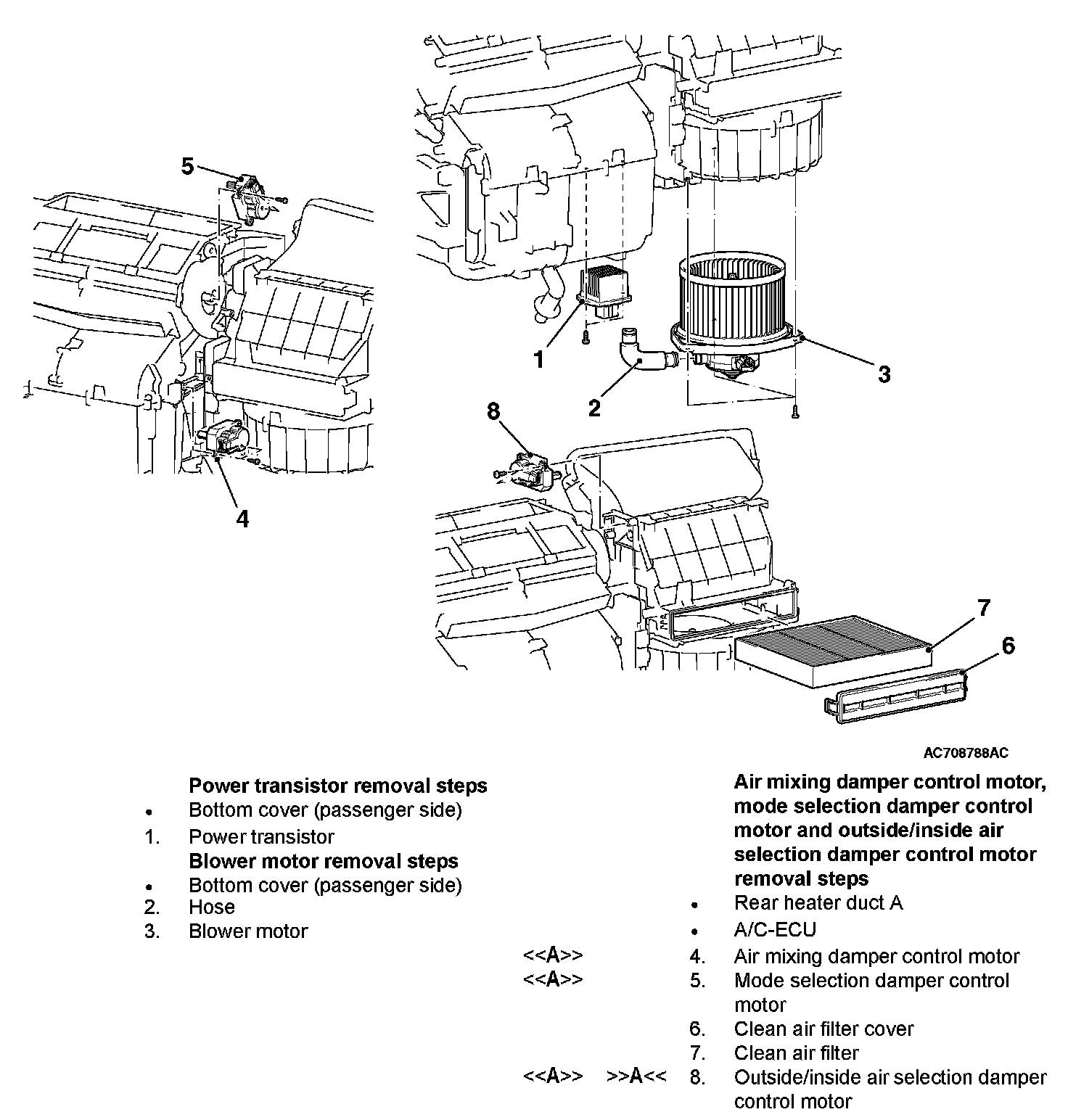

Removal Steps 1-8:

REMOVAL SERVICE POINT

[[A]] AIR MIXING DAMPER CONTROL MOTOR, OUTSIDE/INSIDE AIR SELECTION DAMPER MOTOR, MODE SELECTION DAMPER CONTROL MOTOR REMOVAL

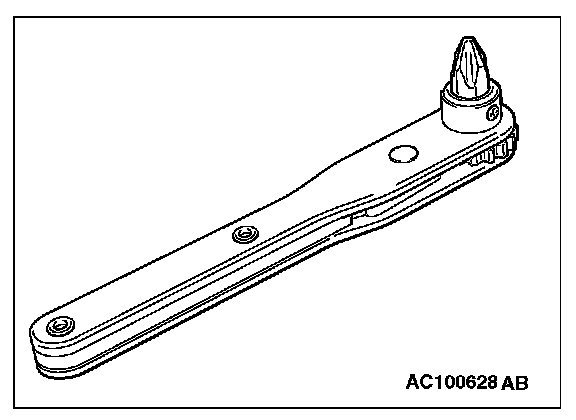

NOTE: A normal plate-type ratchet driver is recommended.

INSTALLATION SERVICE POINT

]]A[[ OUTSIDE/INSIDE AIR SELECTION DAMPER MOTOR INSTALLATION

From the hole where the clean air filter and blower motor are removed, support the outside/inside air selection damper from beneath, and then perform the alignment.
