Engine - Revised Timing Chain Stretch Visual Inspection
No: TSB-10-11-002DATE: July, 2010
MODEL: See Below
SUBJECT:
CORRECTED TIMING CHAIN ELONGATION VISUAL
CHECK - SERVICE MANUAL REVISION
[TSB Revision: TSB-10-11-002]
PURPOSE
The procedure for checking timing chain elongation is missing instructions to delete the current learned value before performing a visual check. This TSB provides the missing instructions.
AFFECTED VEHICLES
2010 Lancer
2010 Lancer Sportback
2010 Lancer Evolution

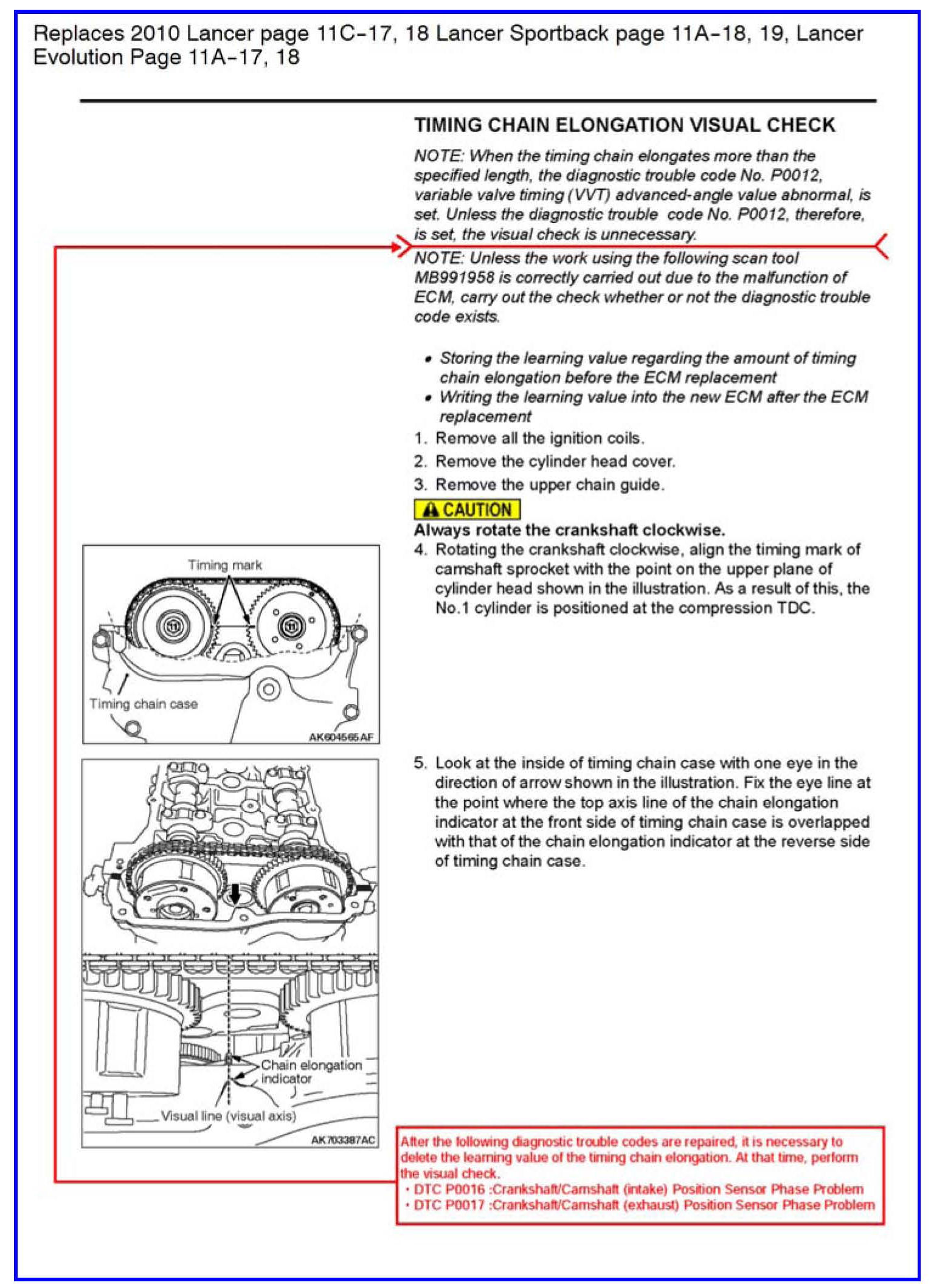

AFFECTED SERVICE MANUALS
2010 Lancer page 11C-17
2010 Lancer Sportback page 11A-18
2010 Lancer Evolution page 11A-17
