Cylinder Head Assembly: Specifications
Cylinder headReplace cylinder head bolts
1st 35 ± 2 Nm (26 ± 1 ft-lb)
2nd 90°
3rd 90°
Distortion of cylinder head bottom mm (in)
Standard value Within 0.05 (0.002)
Limit 0.2 (0.01)
Grinding limit of cylinder head bottom mm (in) 0.2 (0.01)
Overall height of cylinder head mm (in) 128.5 (5.06)
Intake manifold 20 ± 2 Nm (15 ± 1 ft lb)

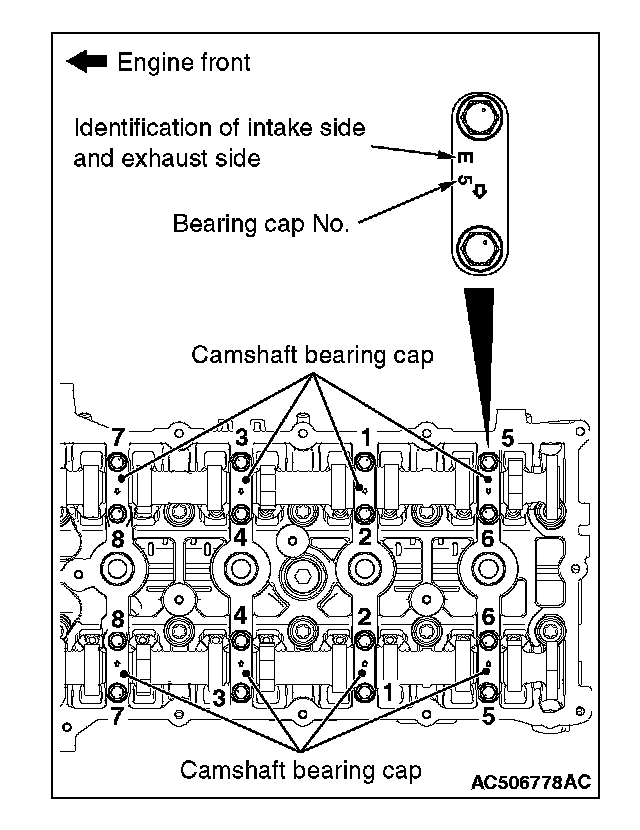

Camshaft bearing caps
Tightening torque 12 ± 1 Nm (107 ± 8 in-lb)
Tighten in two or three steps

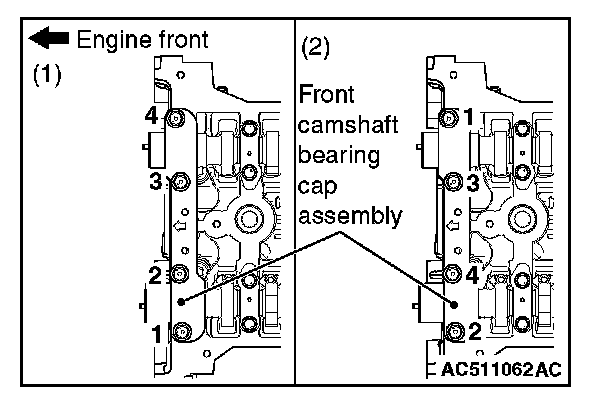

Front bearing cap
Tighten in the order of the figure 1 17 ± 3 Nm (13 ± 2 ft-lb)
Tighten in the order of the figure 2 30 ± 2 Nm (23 ± 1 ft-lb)
Cam sprocket 85 ± 5 Nm (63 ± 4 ft lb)
Exhaust manifold 49 ± 5 Nm (36 ± 3 ft lb)
