Water Pump: Service and Repair
WATER PUMP
REMOVAL AND INSTALLATION

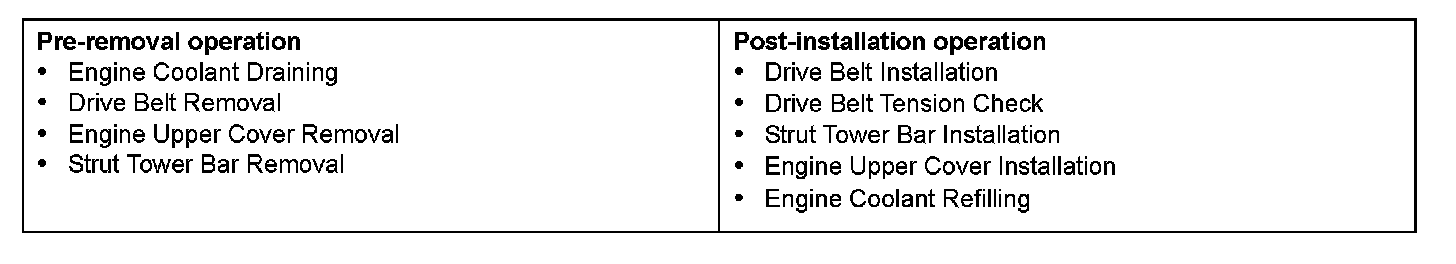

Pre-removal & Post-installation Operation:

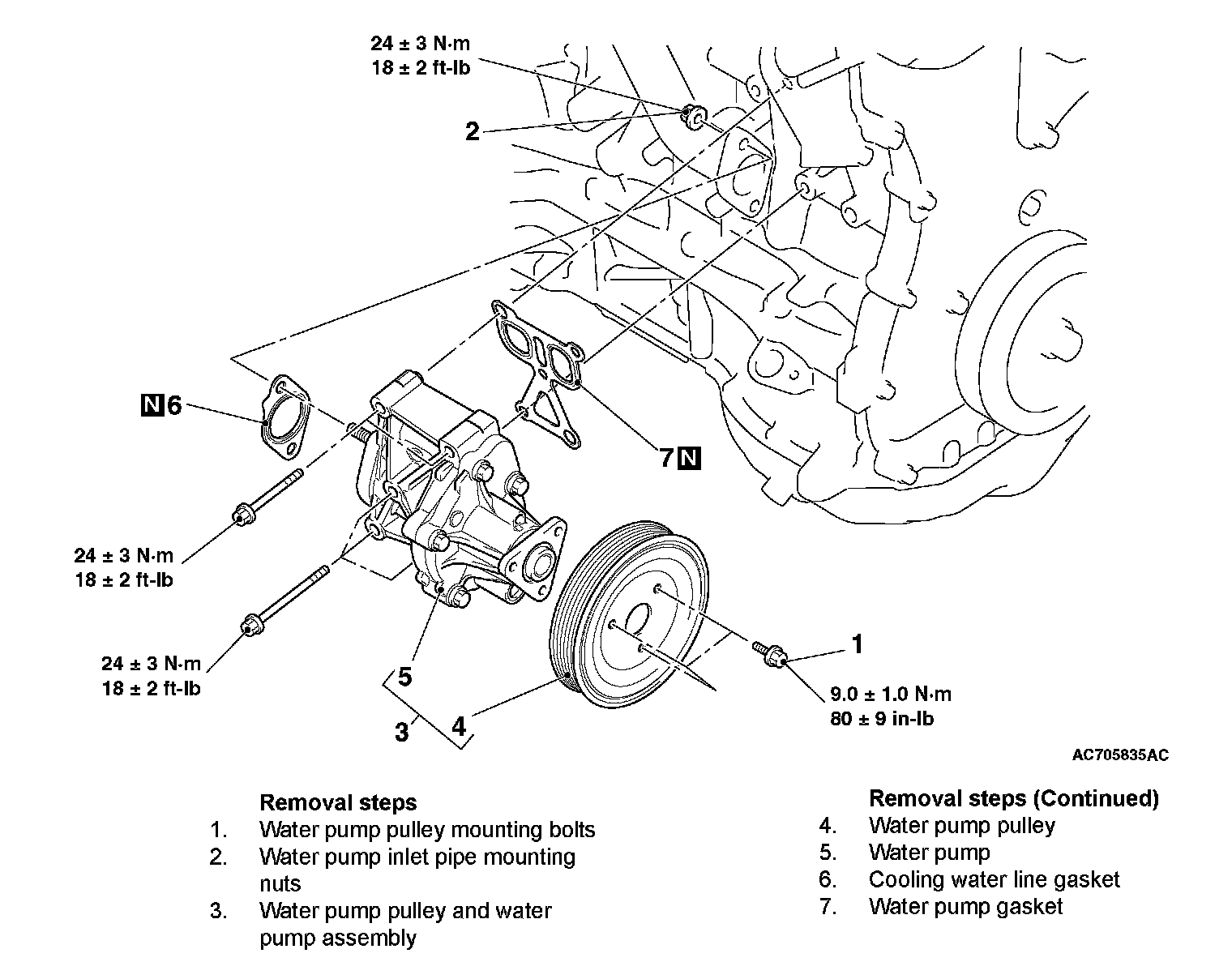

Removal Steps 1-7:
