Radiator Cooling Fan Motor Relay: Testing and Inspection

COOLING FAN RELAY CONTINUITY CHECK

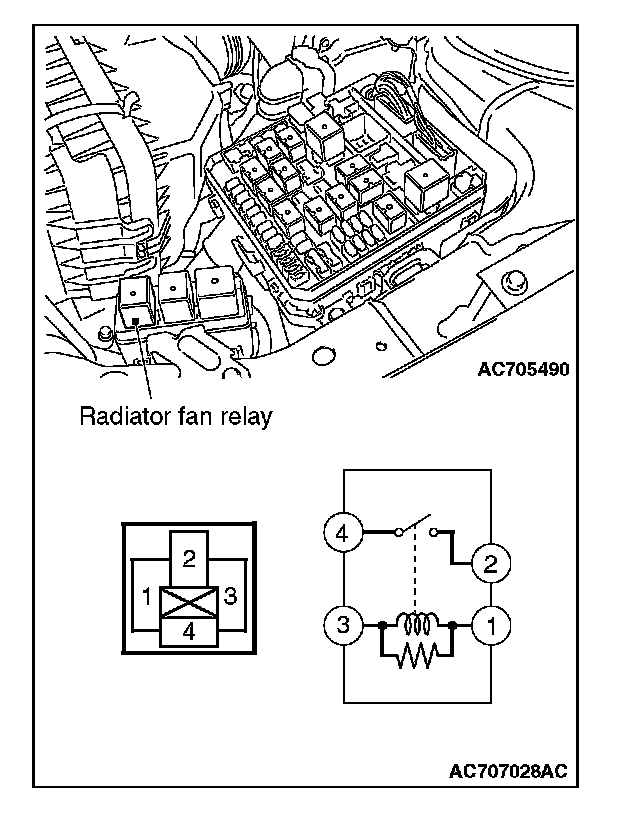

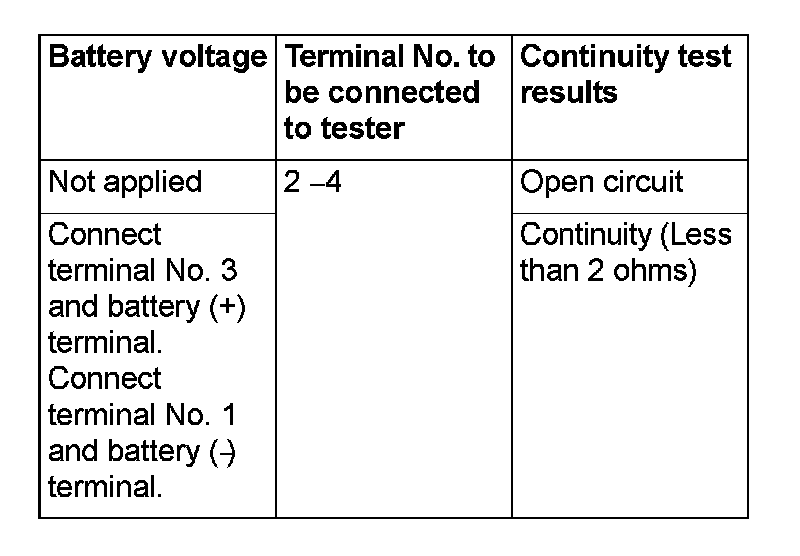

RADIATOR FAN RELAY CHECK

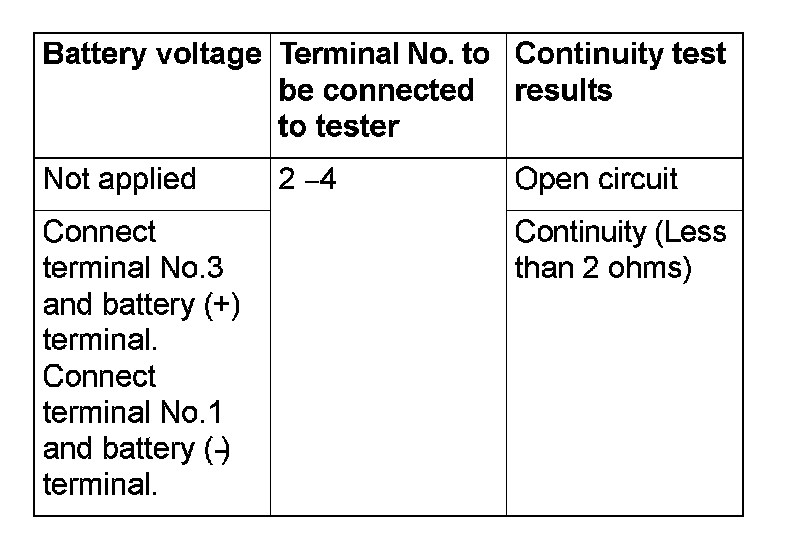

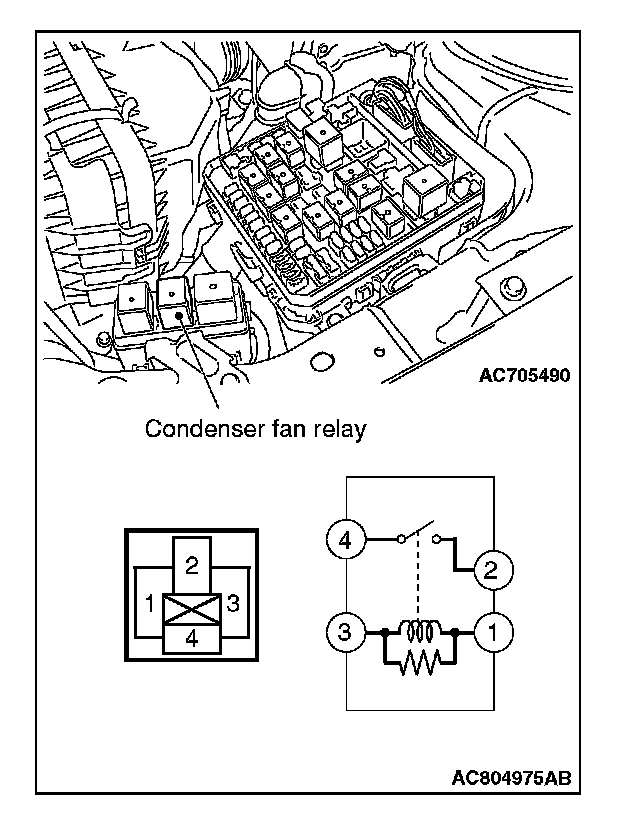

CONDENSER FAN RELAY CHECK

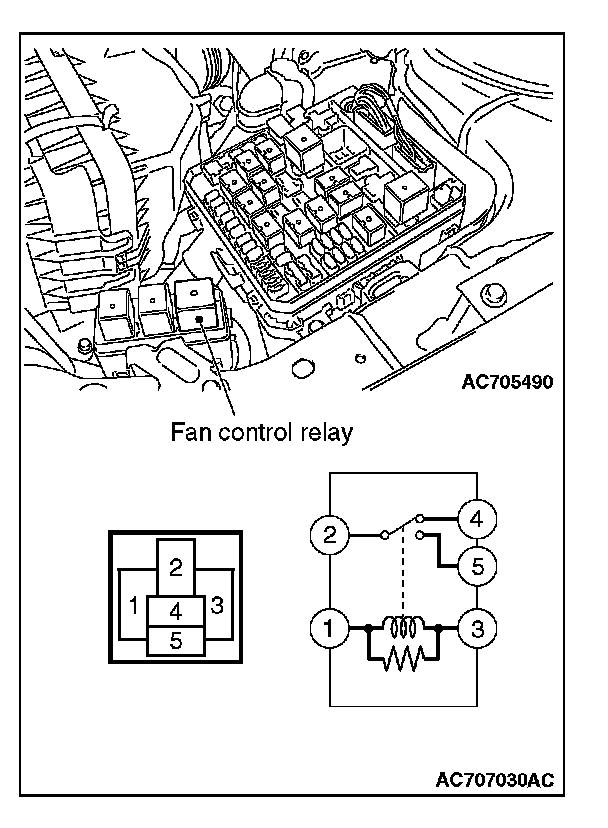

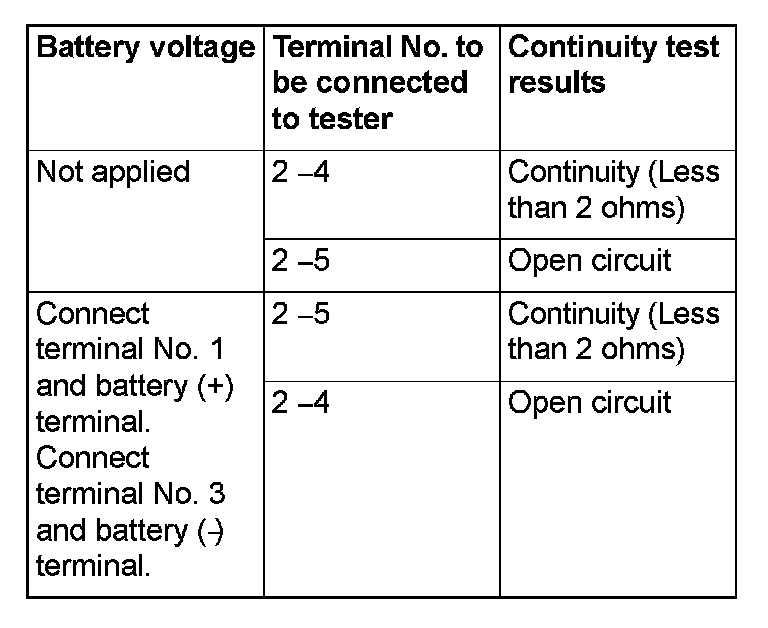

FAN CONTROL RELAY CHECK
