Audio System [Vehicles With Audio Amplifier]

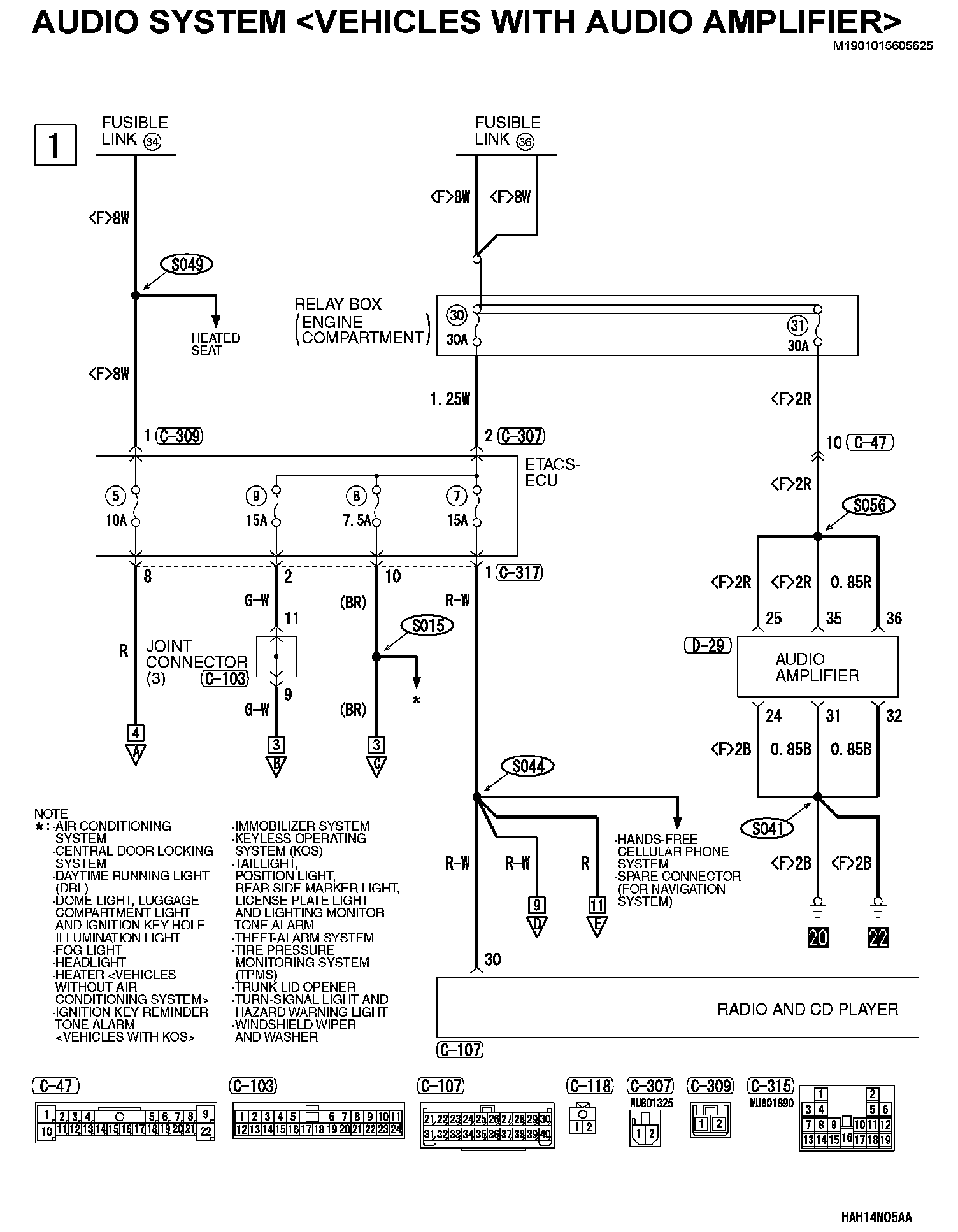

Audio System [Vehicles With Audio Amplifier] (Part 1):

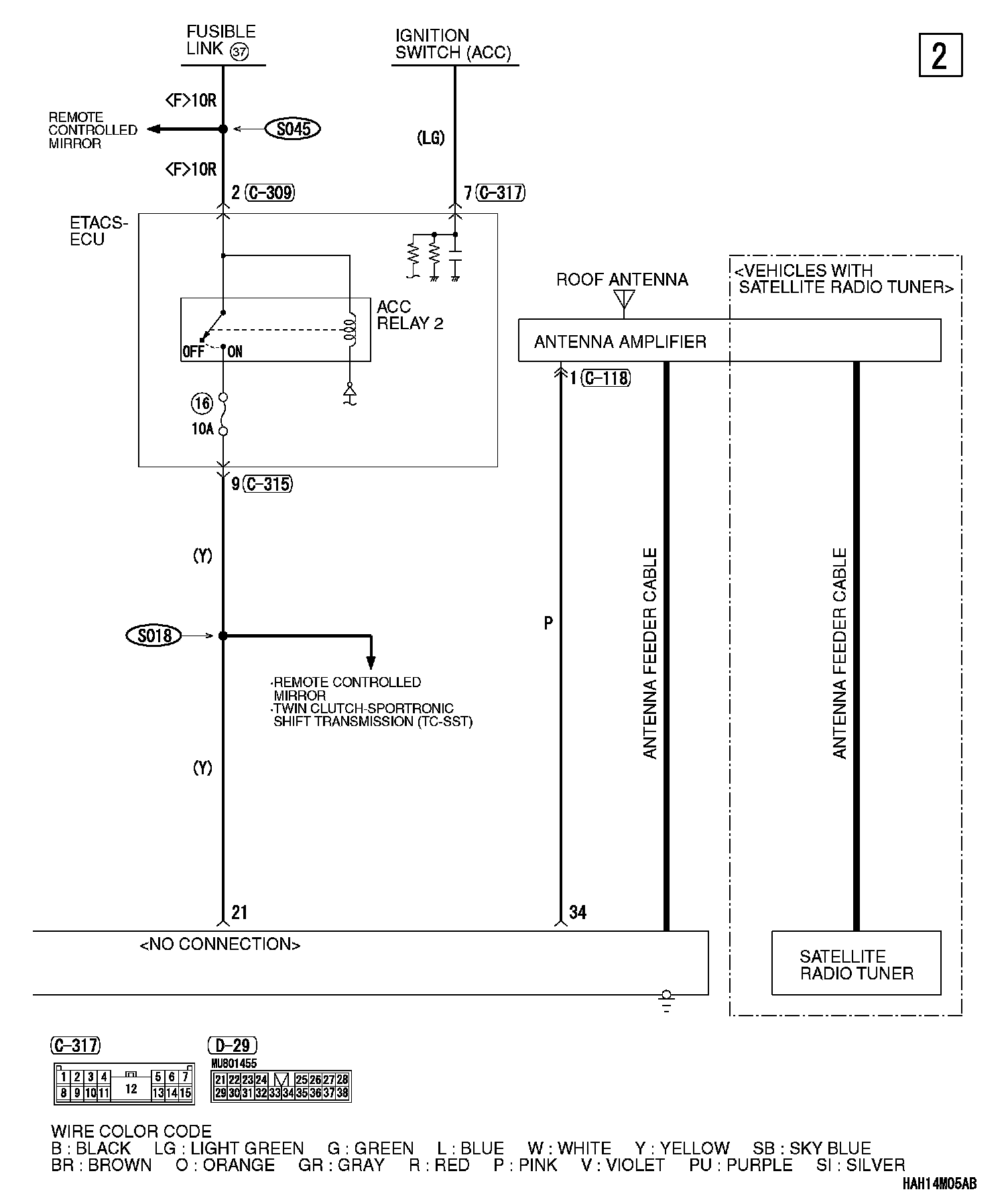

Audio System [Vehicles With Audio Amplifier] (Part 2):

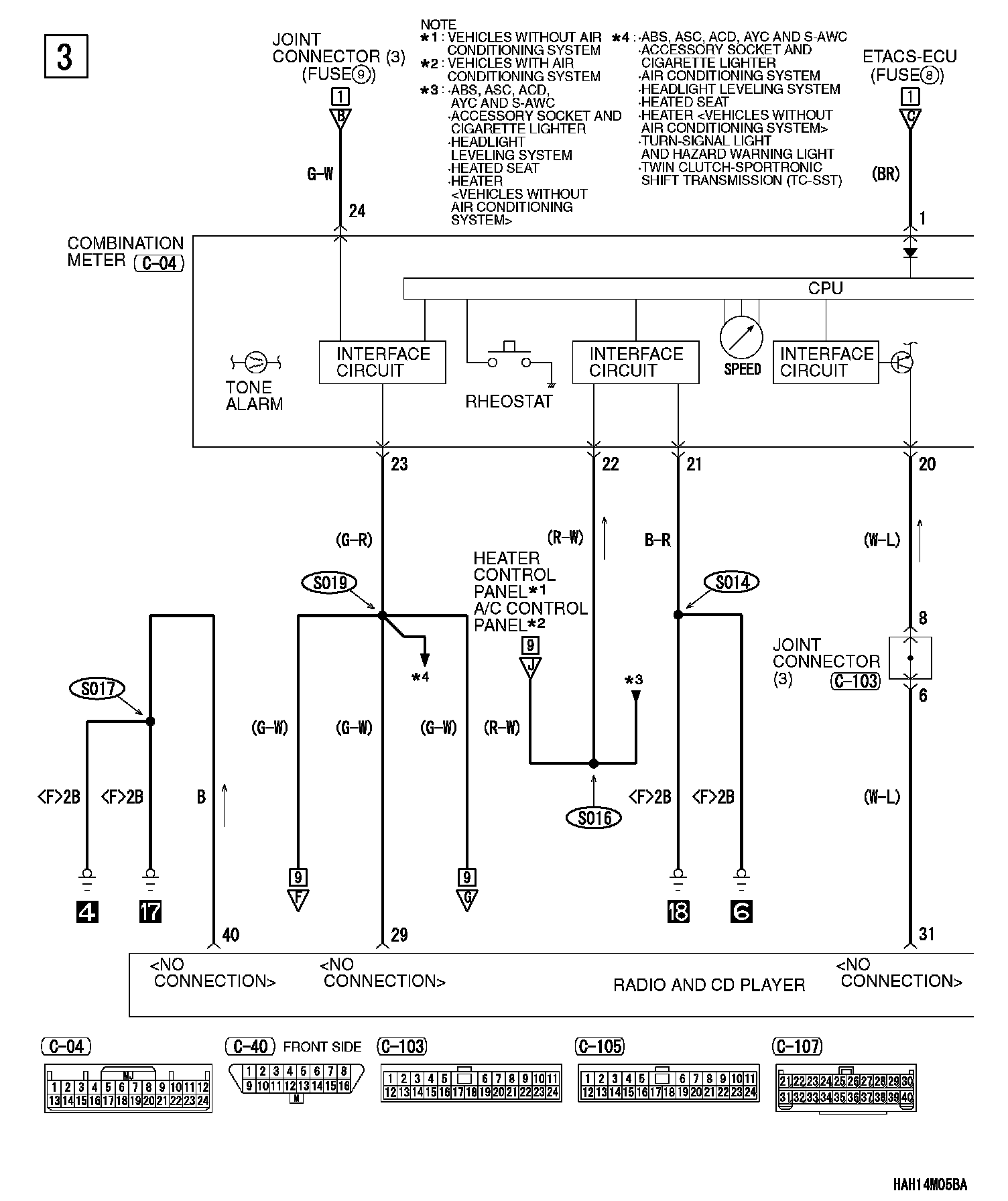

Audio System [Vehicles With Audio Amplifier] (Part 3):

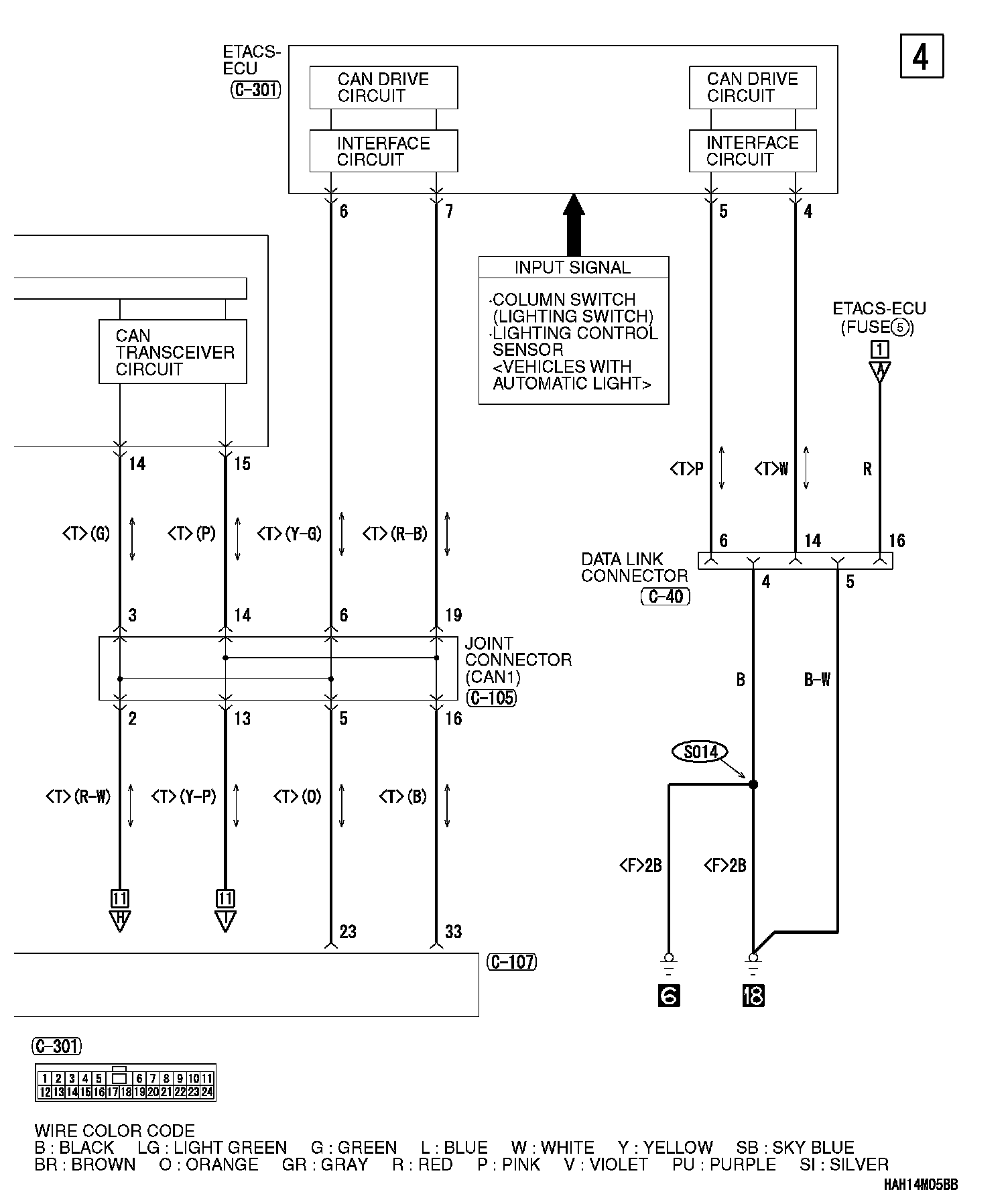

Audio System [Vehicles With Audio Amplifier] (Part 4):

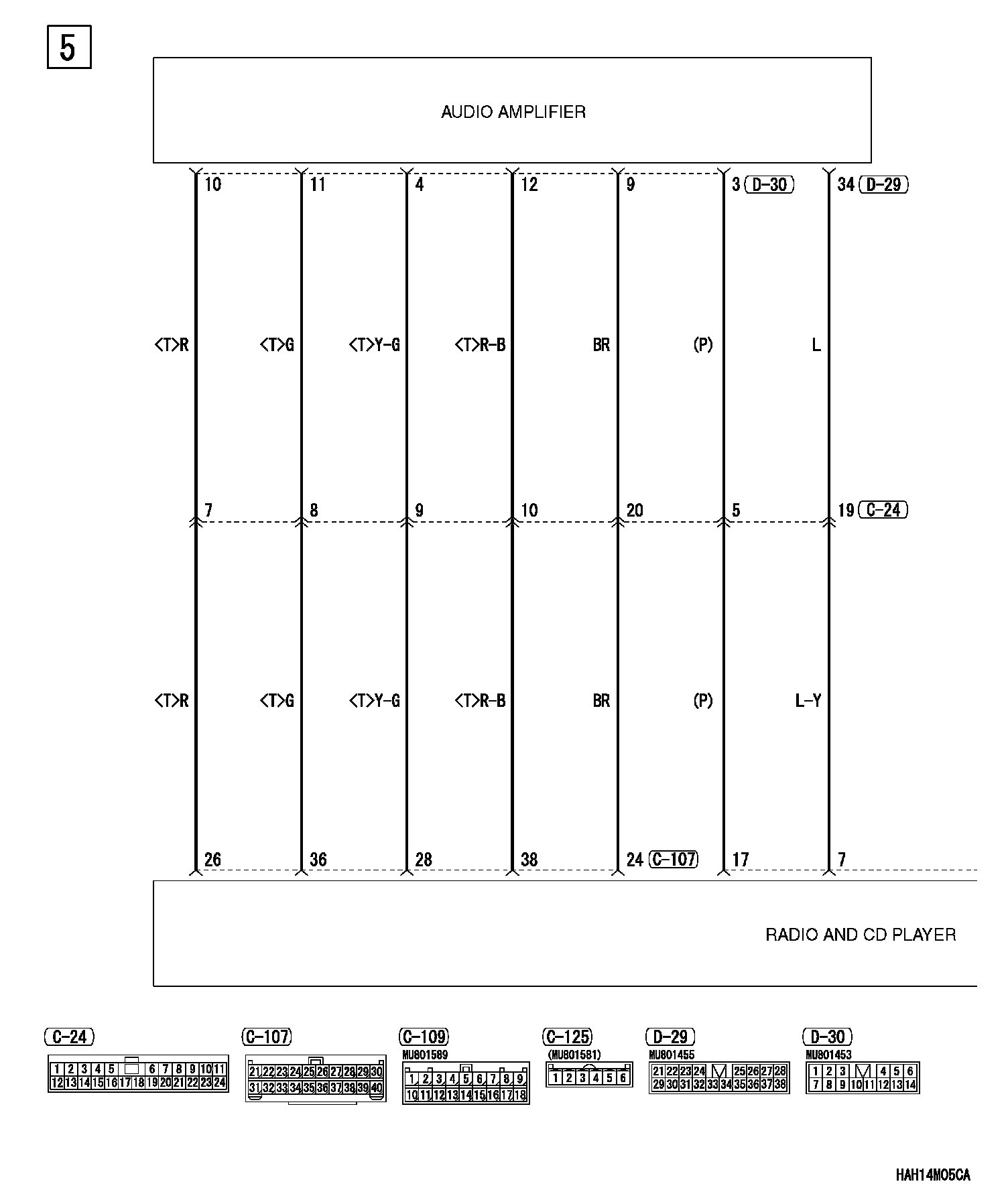

Audio System [Vehicles With Audio Amplifier] (Part 5):

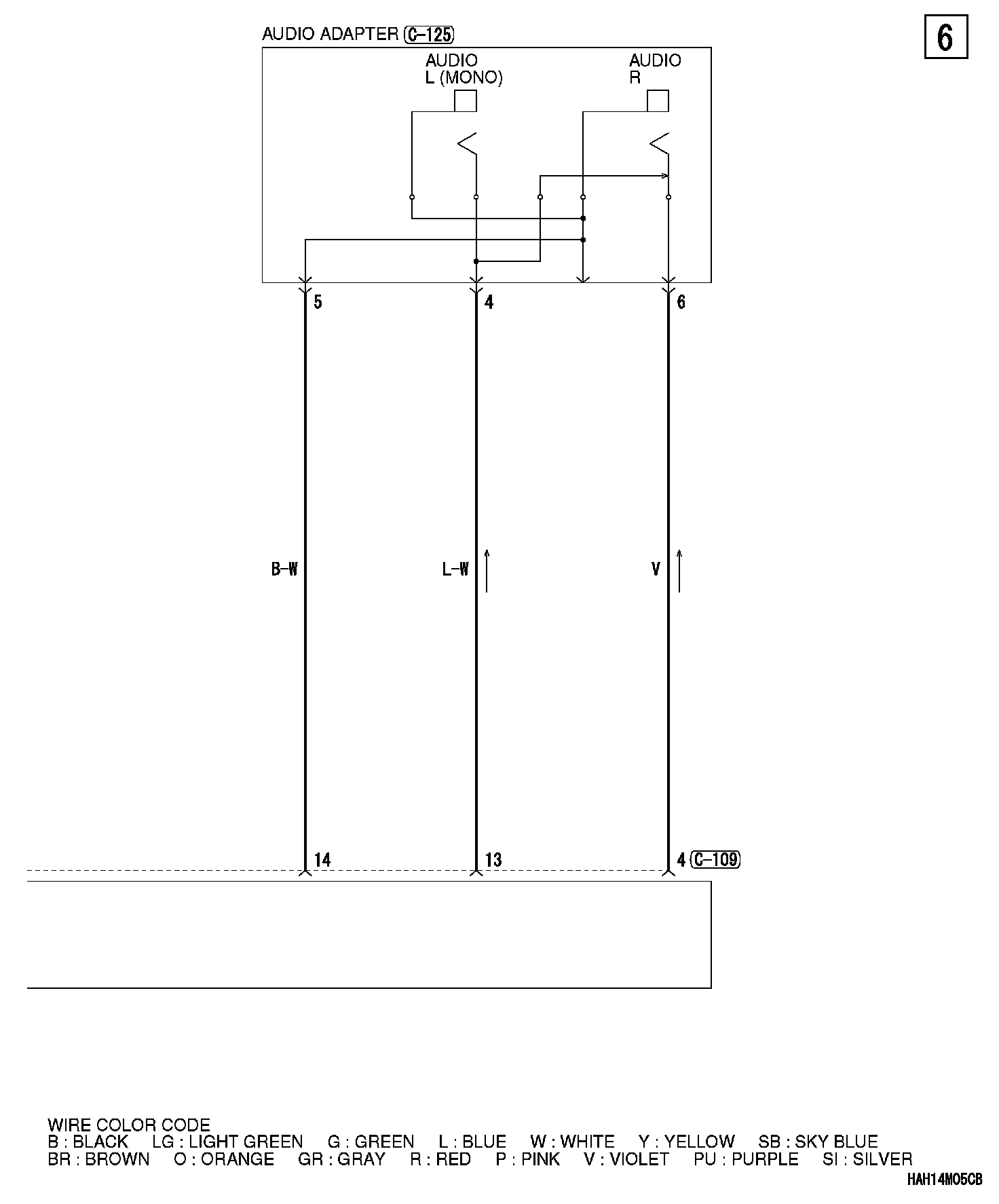

Audio System [Vehicles With Audio Amplifier] (Part 6):

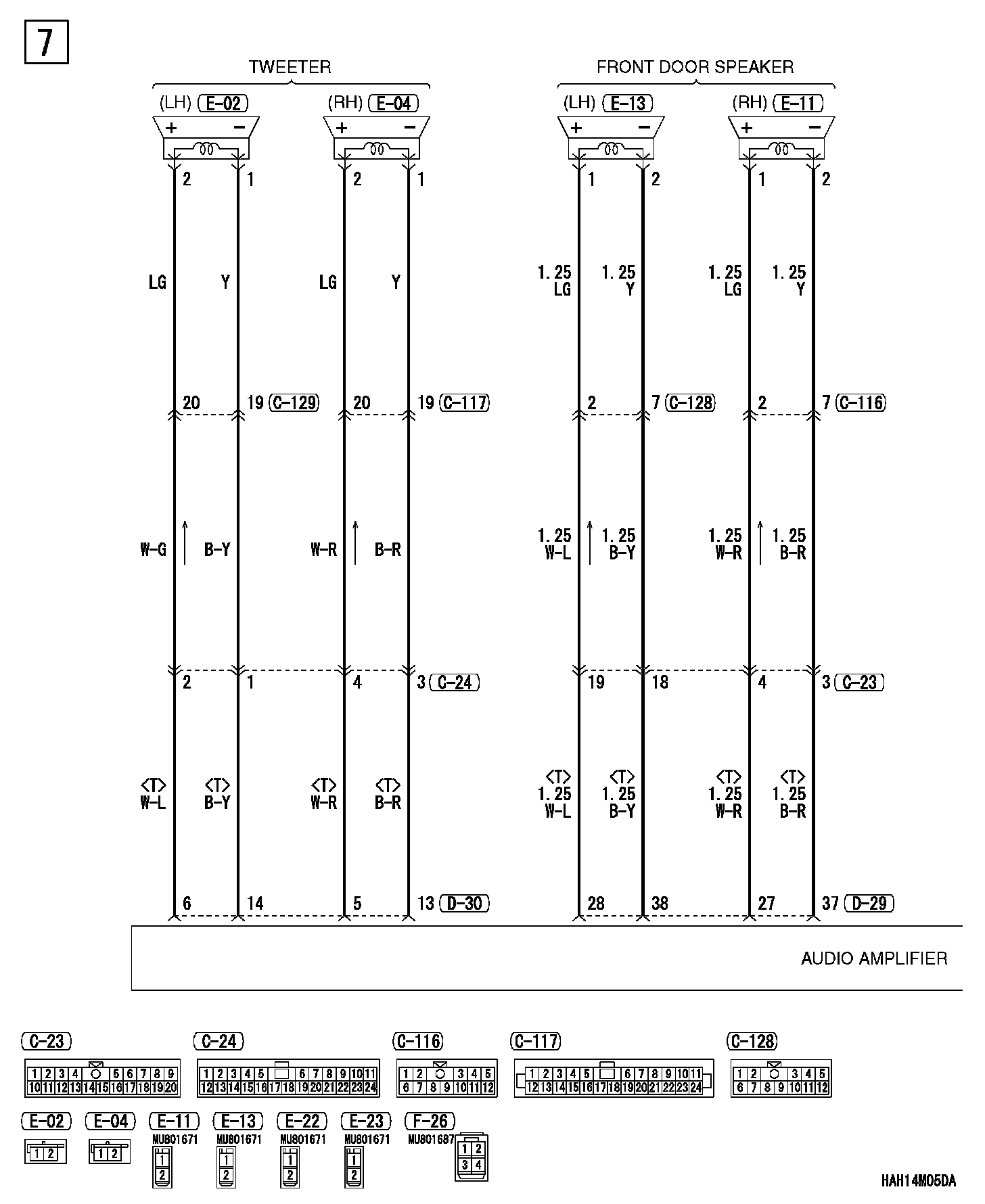

Audio System [Vehicles With Audio Amplifier] (Part 7):

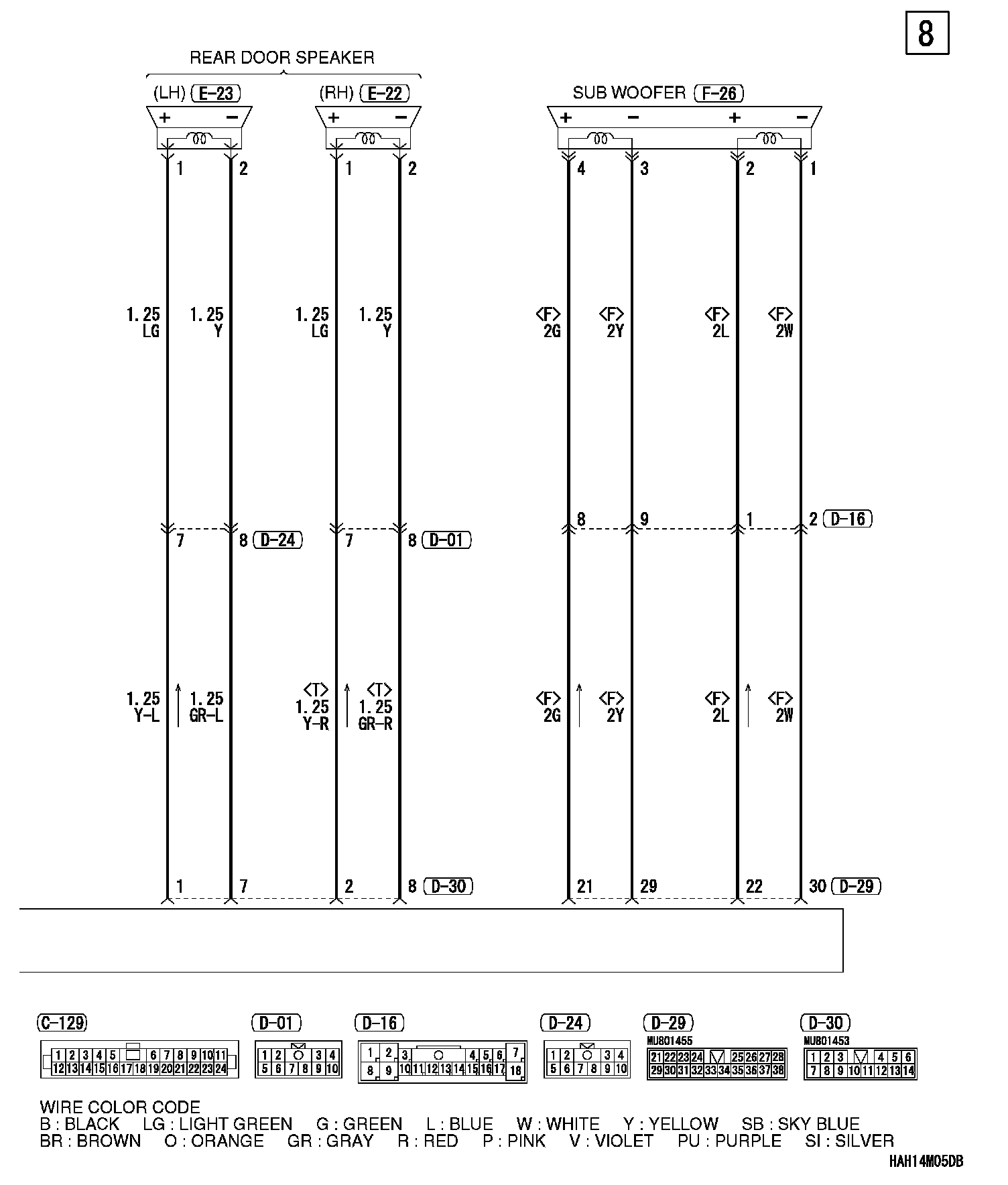

Audio System [Vehicles With Audio Amplifier] (Part 8):

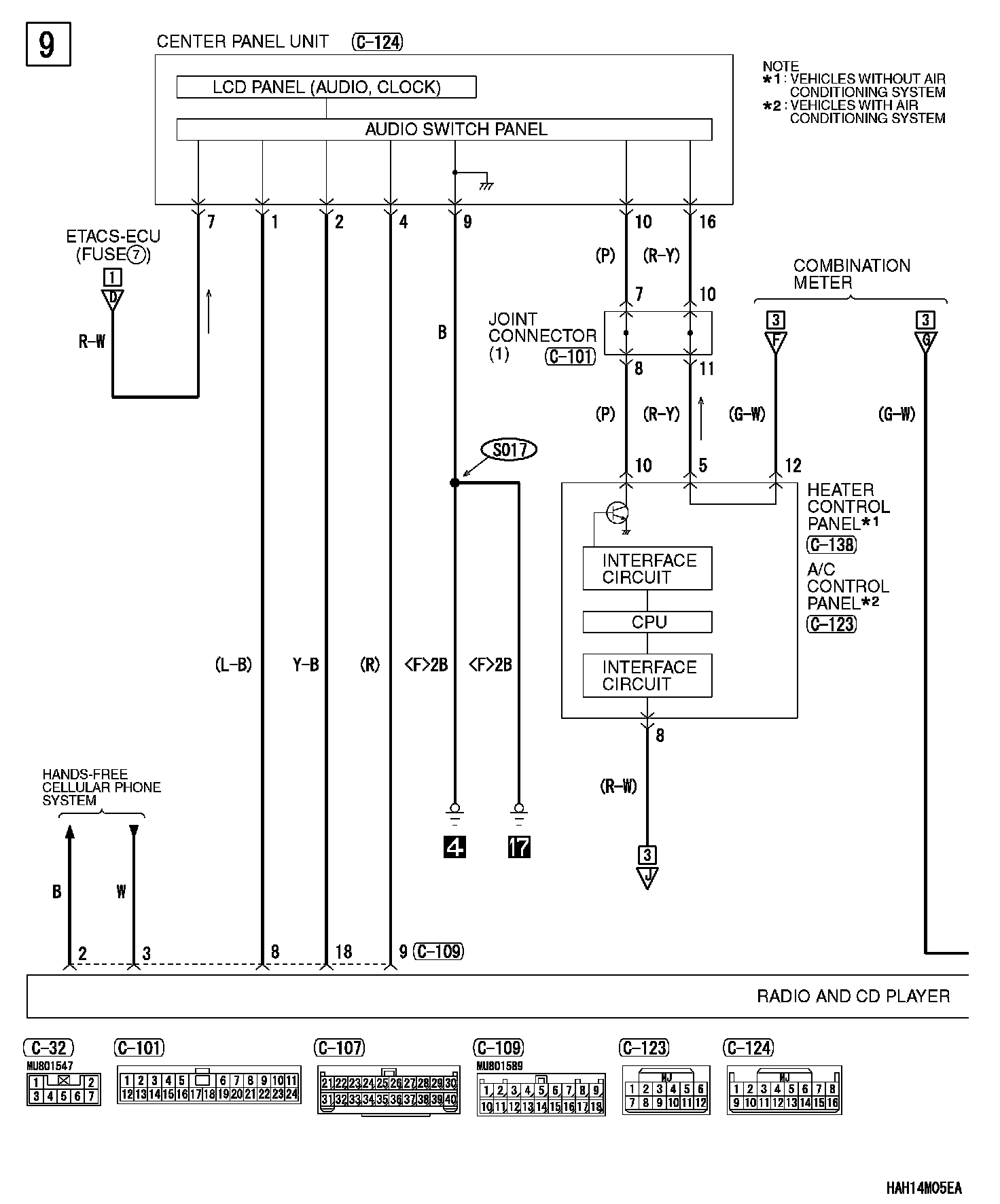

Audio System [Vehicles With Audio Amplifier] (Part 9):

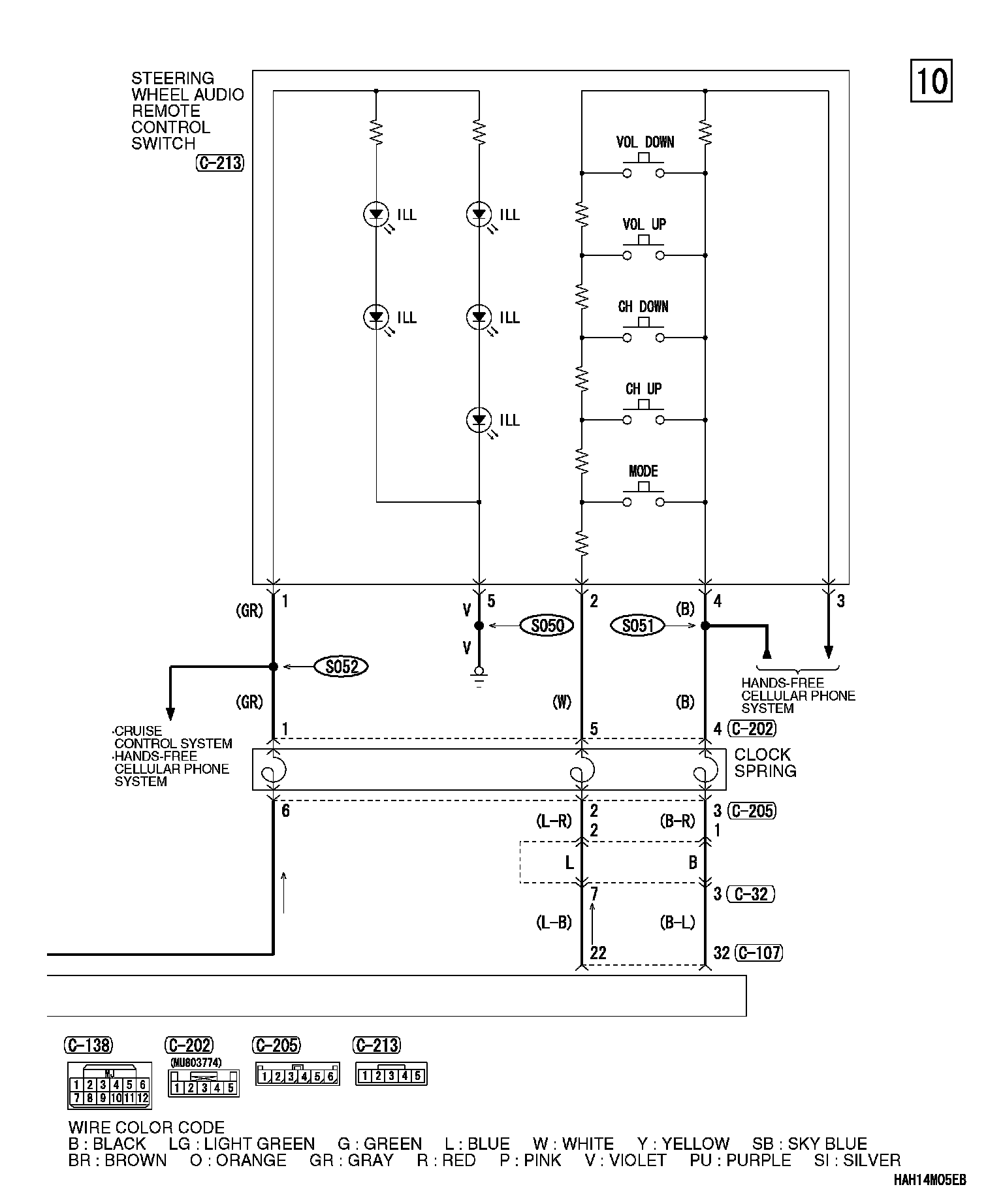

Audio System [Vehicles With Audio Amplifier] (Part 10):

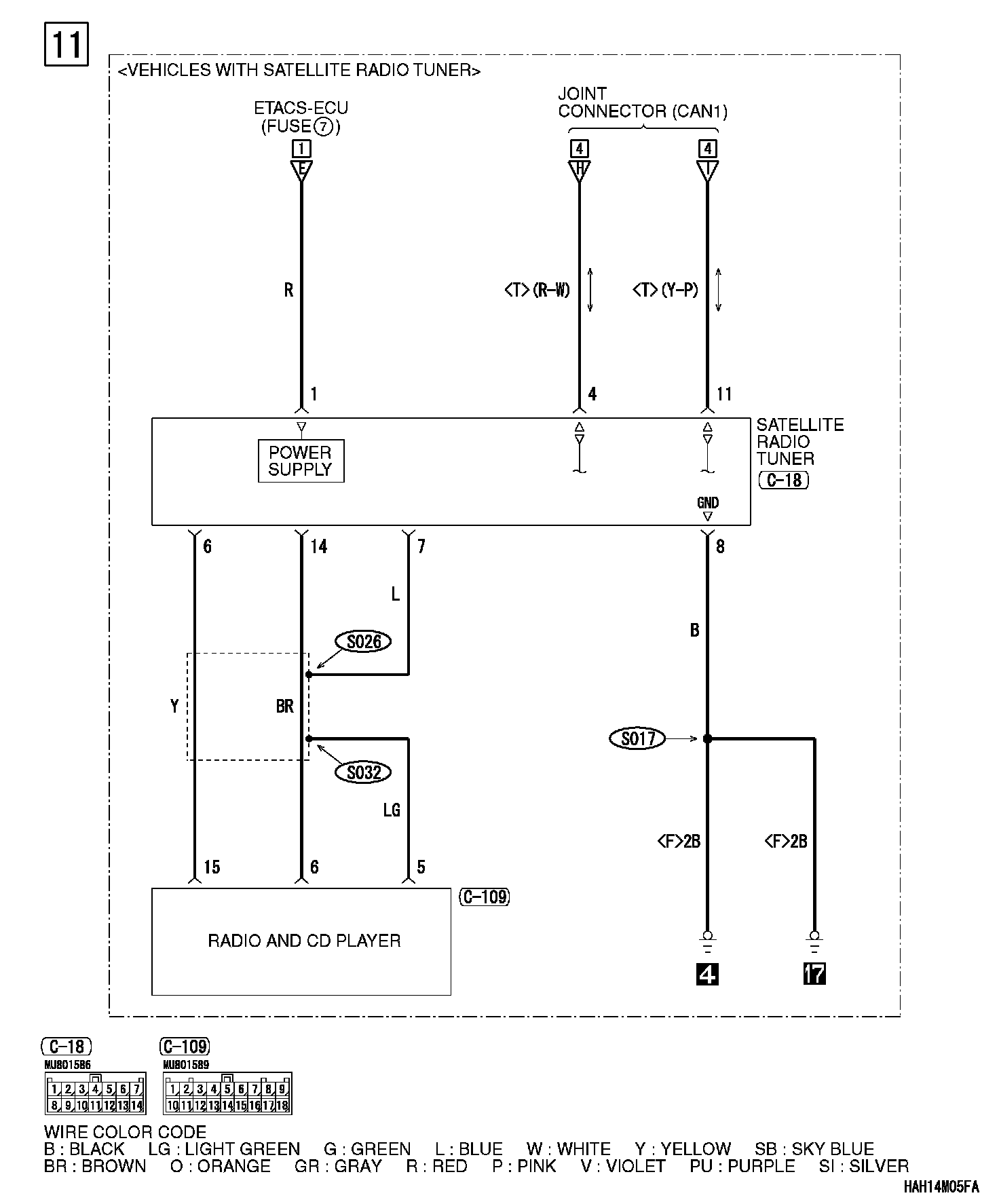

Audio System [Vehicles With Audio Amplifier] (Part 11):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
