Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors - Dash Panel >> C-101 to C-139

C-101 to C-139

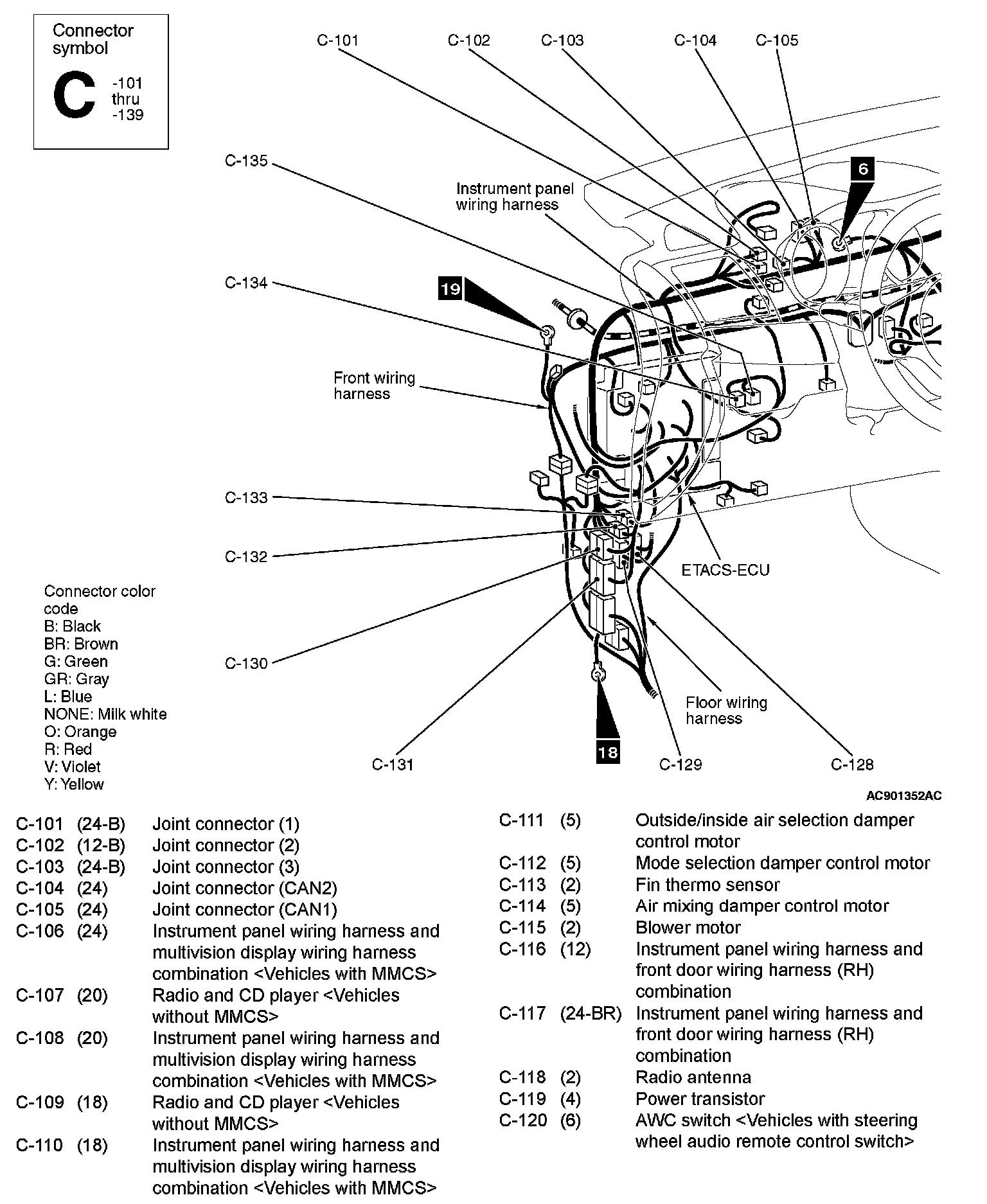

C-101 To C-139 (Part 1):




C-101 To C-139 (Part 2):
