Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors - Dash Panel >> C-01 to C-53

C-01 to C-53

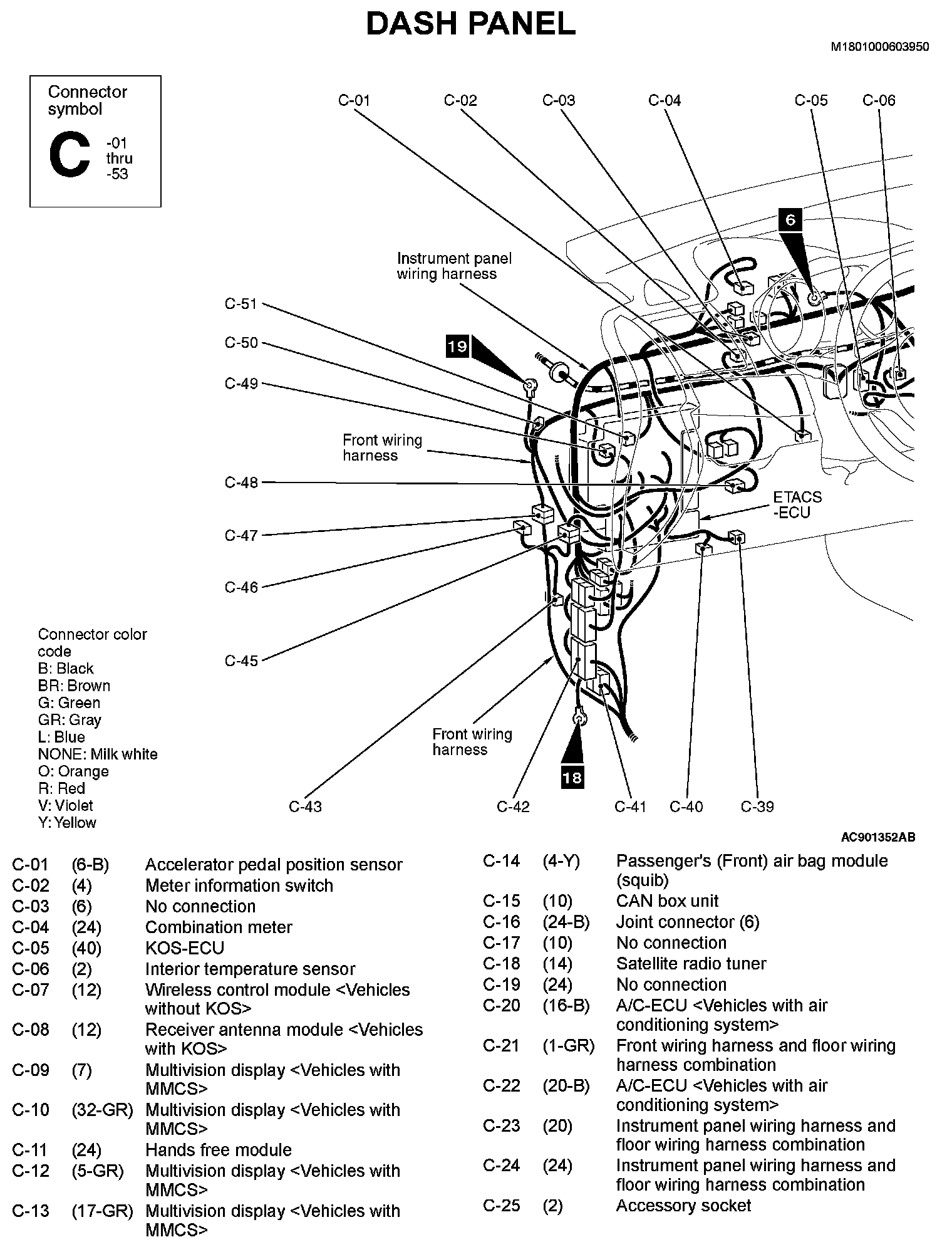

C-01 To C-53 (Part 1):

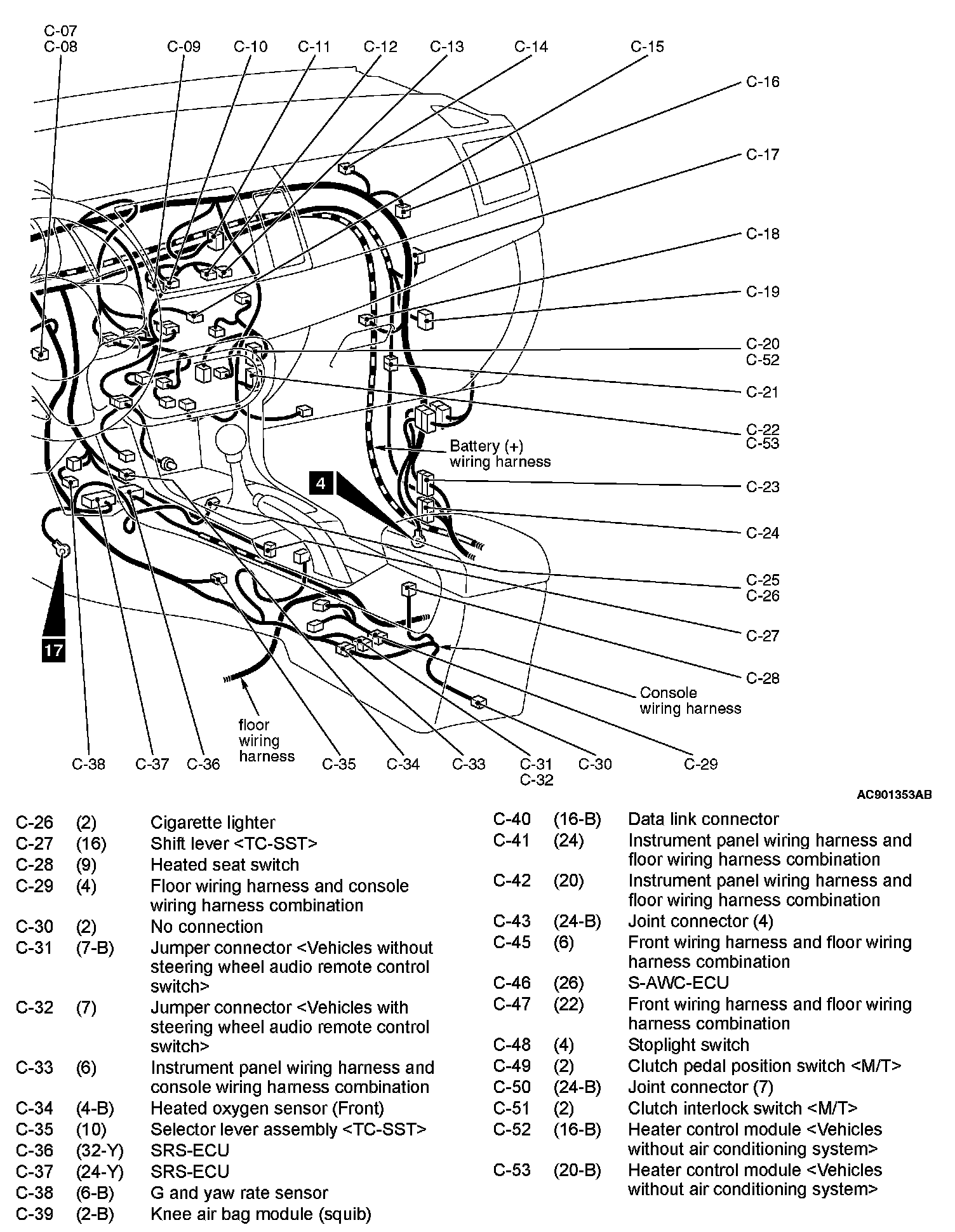

C-01 To C-53 (Part 2):
