Pinout Values and Diagnostic Parameters

ECM TERMINAL VOLTAGE REFERENCE CHART FOR CRUISE CONTROL SYSTEM OPERATION

Required Special Tool:
- MB992110: Power plant ECU check harness

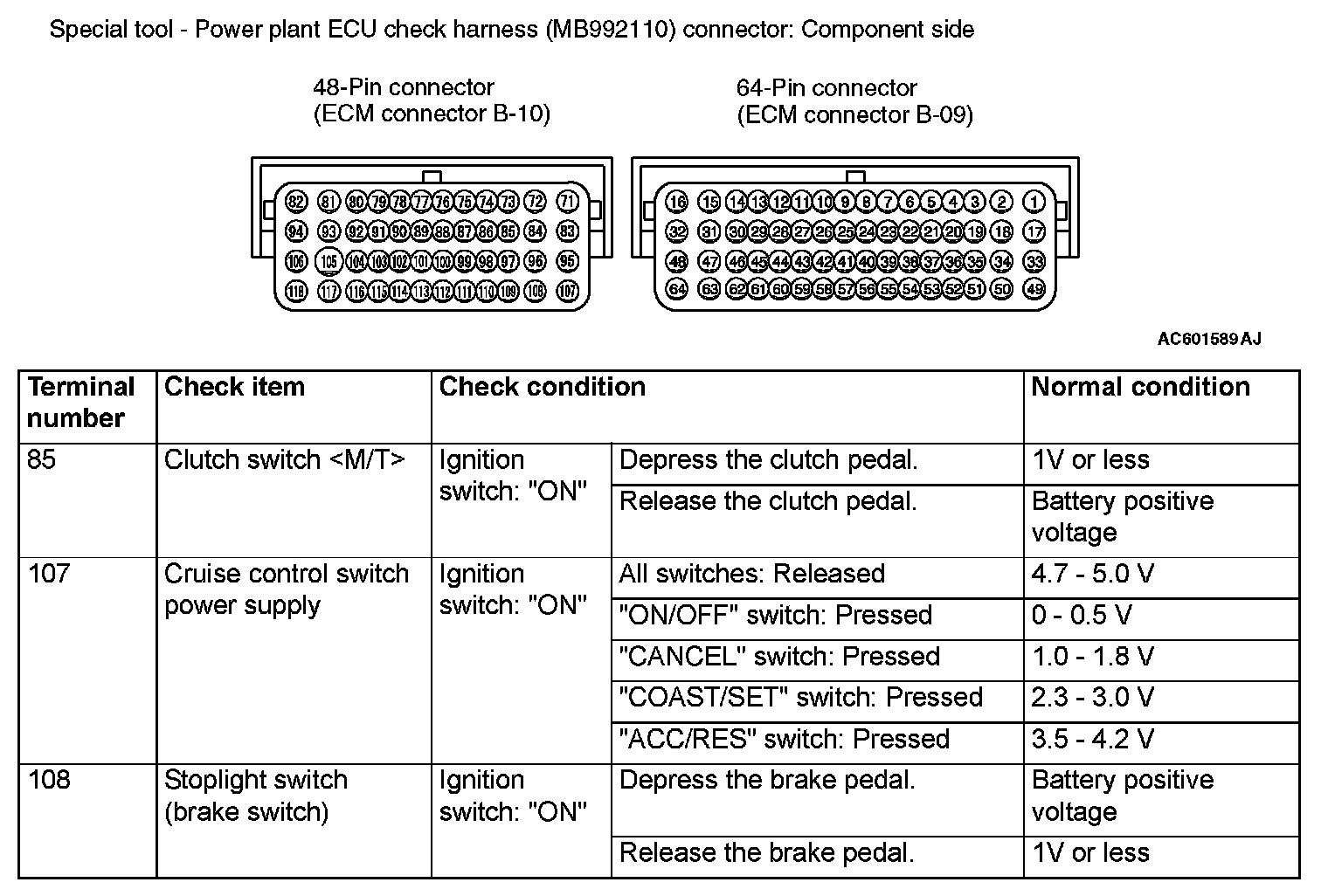

Use special tool MB992110, check the ECM terminal voltage.
1. Remove the ECM.

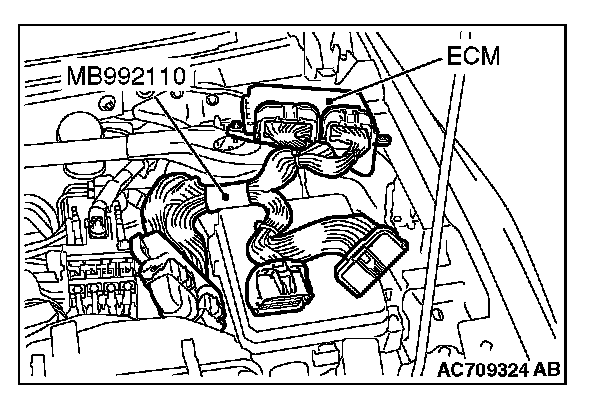

2. Connect special tool MB992110 between the ECM and the body-side harness connector.
3. Measure the voltages between the check connector terminals of special tool MB992044 and ground terminals (ECM connector B-10 terminal number 81 or 93.)
