Cruise Control: Description and Operation
CRUISE CONTROLGENERAL INFORMATION
By using the cruise control system, the driver can drive at preferred speeds in a range of approximately 40 to 200 km/h (25 to 125 mph) without depressing the accelerator pedal.
For this cruise control system, in conjunction with the electronic throttle valve control system, the engine control module (ECM) electronically controls the throttle valve.

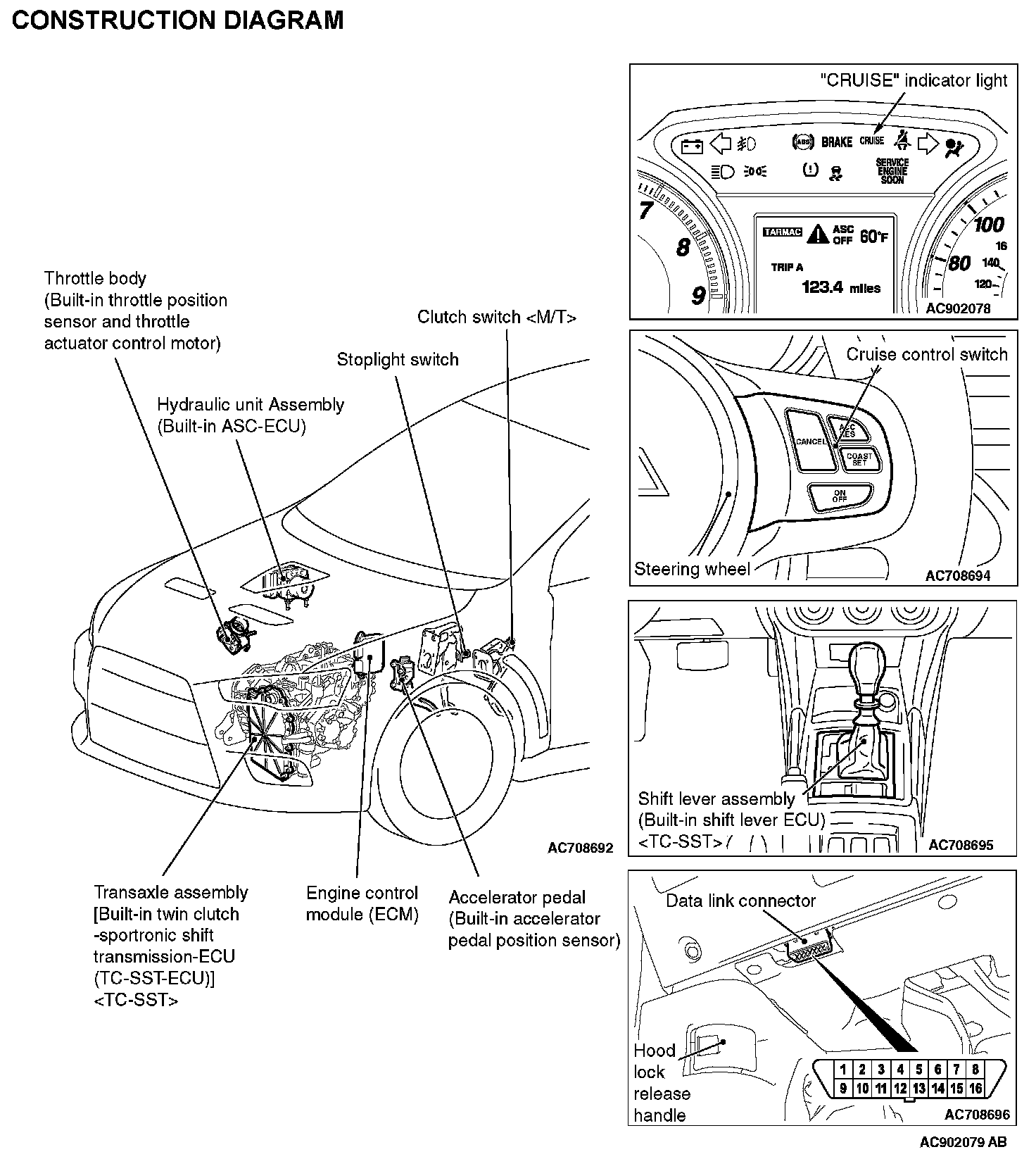

CONSTRUCTION DIAGRAM
Construction Diagram:
