On-Vehicle Service
ON-VEHICLE SERVICECRUISE CONTROL SWITCH CHECK
CRUISE CONTROL "ON/OFF" SWITCH CHECK
1. Turn the ignition switch to the "ON" position.

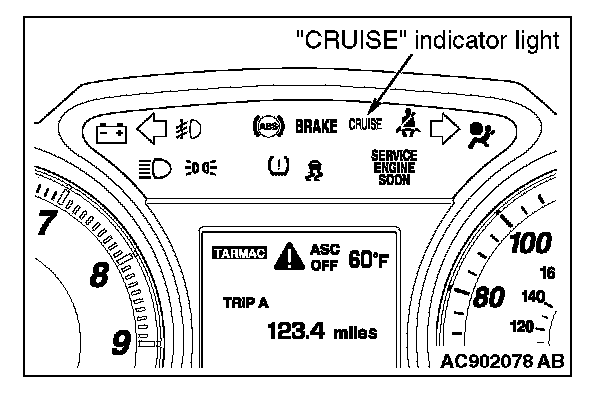

2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "ON/OFF" switch is pressed (cruise control system: ON.)
3. Press the "ON/OFF" switch again (cruise control system: OFF), and check that the "CRUISE" indicator light within the combination meter goes out.
CRUISE CONTROL SETTING
1. Start the engine.

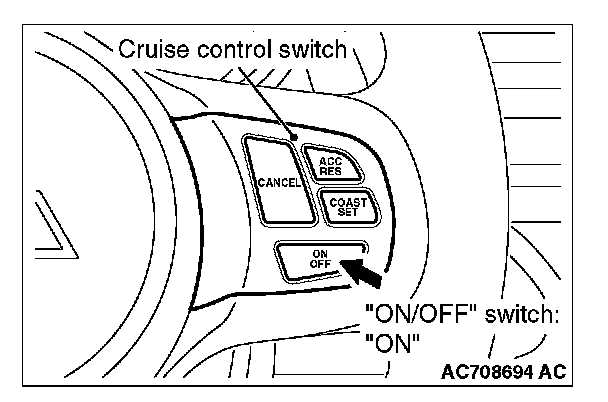

2. Press the "ON/OFF" switch (cruise control system: ON, "CRUISE" indicator light: illuminated.)
3. Drive at the desired speed, above approximately 40 km/h (25 mph.)

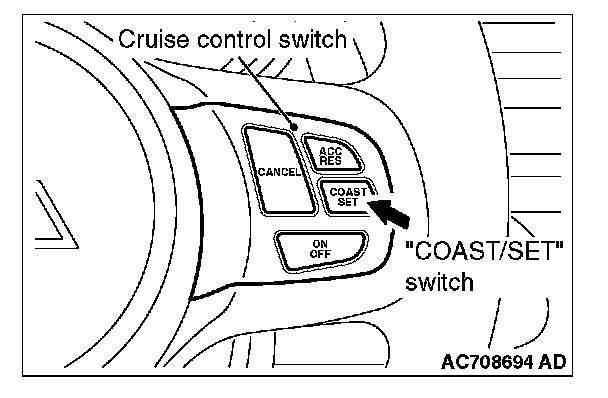

4. Press the "COAST/SET" switch.
5. Check to be sure that when the "COAST/SET" switch is released the speed is the constant speed.
NOTE: If the vehicle speed decreases to approximately 15 km/h (9 mph) below the set speed because of climbing a hill for example, it is normal for the cruise control to be cancelled. When the vehicle speed becomes low-speed limit [approximately 40 km/h (25 mph)] or less, driving at constant speed will be cancelled even if the vehicle speed does not decrease 15 km/h (9 mph) or more.
SPEED-INCREASE SETTING
1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON, "CRUISE" indicator light: illuminated.)
3. Set to the desired speed, above approximately 40 km/h (25 mph.)
4. Press the "ACC/RES" switch.
5. Check to be sure that acceleration continues while the "ACC/RES" switch is pushed, and that the speed at the time it was released becomes the constant driving speed.
NOTE: Acceleration can be continued even if the vehicle speed has passed the high-speed limit [approximately 200 km/h (125 mph)]. But the constant driving speed when the "ACC/RES" switch is released will be recorded as the high-speed limit.
SPEED-REDUCTION SETTING
1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON, "CRUISE" indicator light: illuminated.)
3. Set to the desired speed, above approximately 40 km/h (25 mph.)
4. Press the "COAST/SET" switch.
5. Check to be sure that deceleration continues while the "COAST/SET" switch is pressed, and that the speed at the time it was released becomes the constant driving speed.
NOTE: When the vehicle speed reaches the low limit [approximately 40 km/h (25 mph)] during deceleration, the cruise control will be cancelled.
RETURN TO THE SET SPEED BEFORE CANCELLATION AND CRUISE CONTROL CANCELLATION
1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON, "CRUISE" indicator light: illuminated.)
3. Set to the desired speed, above approximately 40 km/h (25 mph.)
4. When any of the following operations are performed while at constant speed during cruise control, check if normal driving is resumed and deceleration occurs.

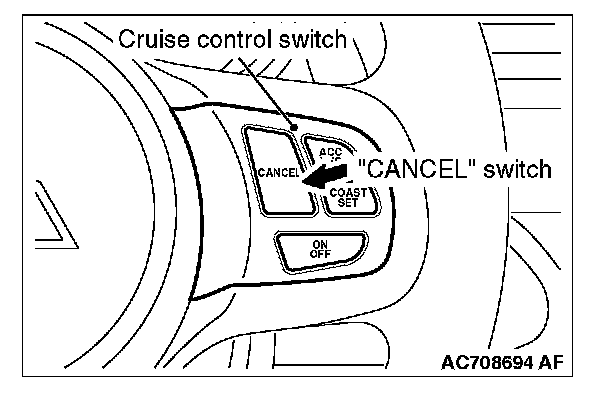

1 The "CANCEL" switch is pressed.
2 The brake pedal is depressed.
5. At a vehicle speed of approximately 40 km/h (25 mph) or higher, check if when the "ACC/RES" switch is pressed, the vehicle speed returns to the speed before cruise control driving was cancelled, and constant speed driving occurs.
6. When the "ON/OFF" switch is pressed again (cruise control system: OFF) while driving at constant speed, check if normal driving is resumed and deceleration occurs.
