Traction Control Switch: Service and Repair

ASC OFF SWITCH

REMOVAL AND INSTALLATION

Removal Steps 1-4:

INSPECTION

ASC OFF SWITCH CONTINUITY CHECK

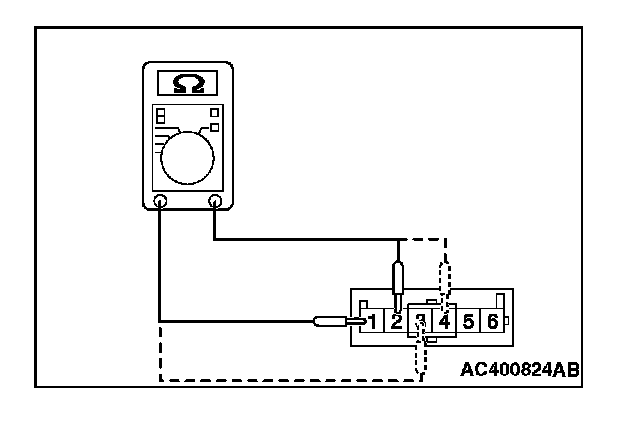

1. As shown in the figure, connect the circuit tester to the ASC OFF switch as a single unit.

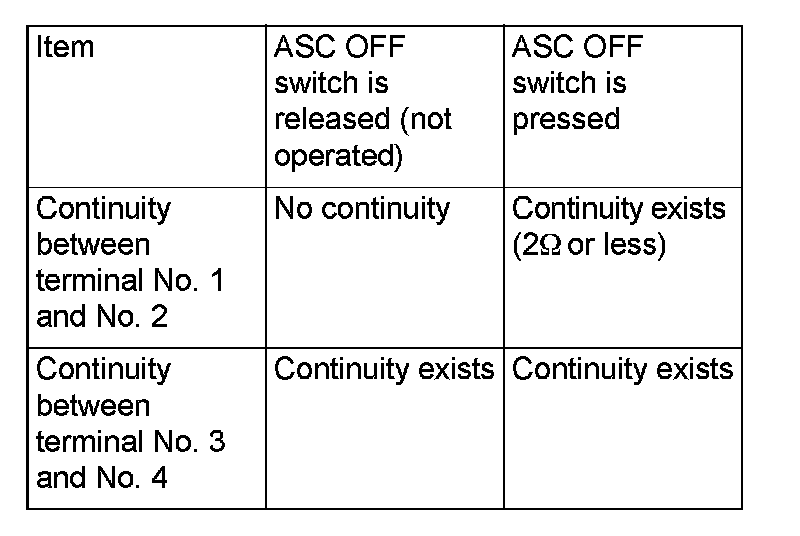

2. Check the continuity of when the ASC OFF switch is pressed and released.
