Installation Service Points

STEERING WHEEL SENSOR

INSTALLATION SERVICE POINT

[A] NEUTRAL POSITIONING OF STEERING WHEEL SENSOR

CAUTION:
^ Always align the center of the clock spring before installing the steering wheel sensor. Otherwise, the sensor can be damaged.
^ If the center of the clock spring is not correctly aligned, the steering wheel may not be turned fully or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or operated incorrectly.

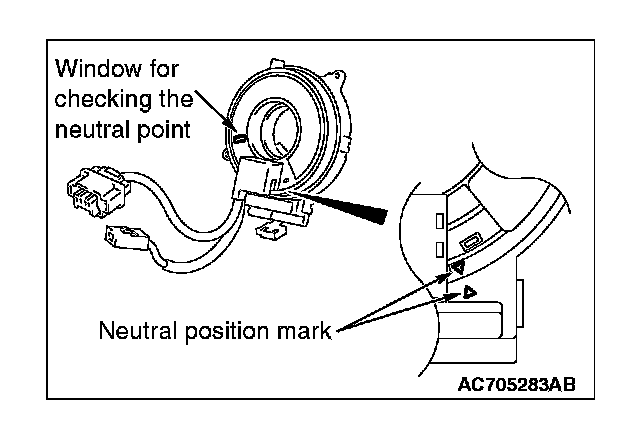

1. Align the mating marks of the clock spring.
[Alignment of mating marks]
1) Turn the clock spring clockwise fully.
2) Turn the clock spring counterclockwise approximately three and 3/4 turns to align the mating marks.
3) Check that the white roller is visible from the window for checking the neutral point with the mating marks being aligned.

NOTE: If the white roller is invisible, the neutral point is positioned correctly.

CAUTION:

Always align three mating marks of the steering wheel sensor simultaneously as shown in the figure. If these mating marks are not aligned correctly, the steering wheel sensor may be damaged.

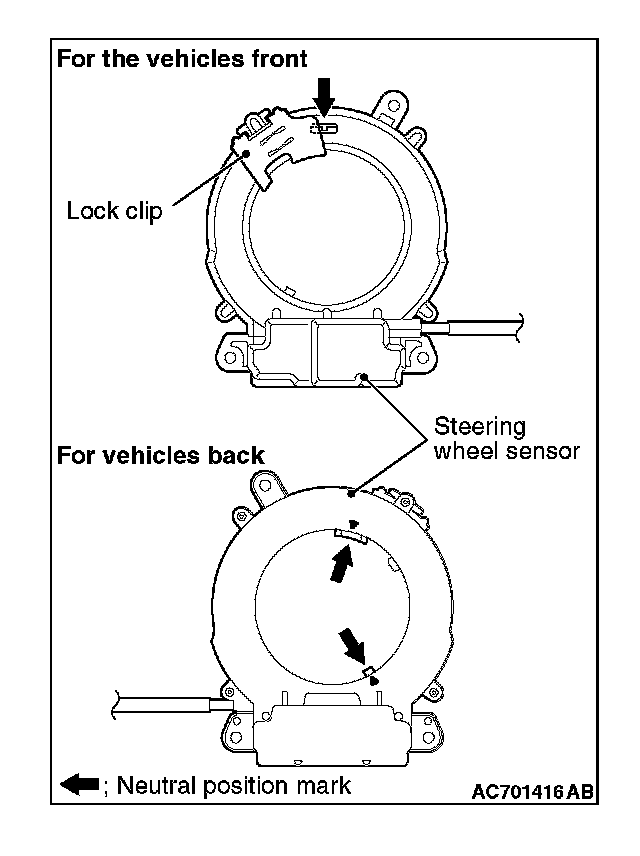

2. Align three mating marks of the steering wheel sensor simultaneously as shown in the figure.
[Alignment of mating marks]
1) Check the window for inspecting the neutral position of the steering wheel sensor. If the mating marks cannot be seen from the window, align the mating marks as shown in the figure.
2) Install the steering wheel sensor to the column switch assembly, maintaining the neutral position correctly.

NOTE: A new steering wheel sensor has a lock clip for preventing the rotation of (fixing) the steering wheel sensor. After installing the column switch assembly, remove this lock clip.

3) Install the column switch assembly to the vehicle, maintaining the neutral position correctly.
