Vacuum Brake Booster Check Valve: Testing and Inspection

CHECK VALVE OPERATION CHECK
1. Remove the check valve.

CAUTION:
Replace the check valve when it is faulty.

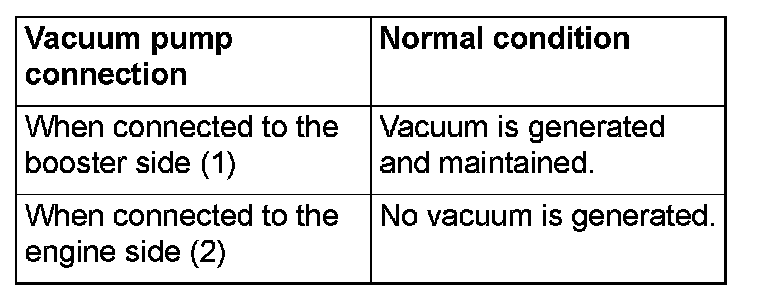

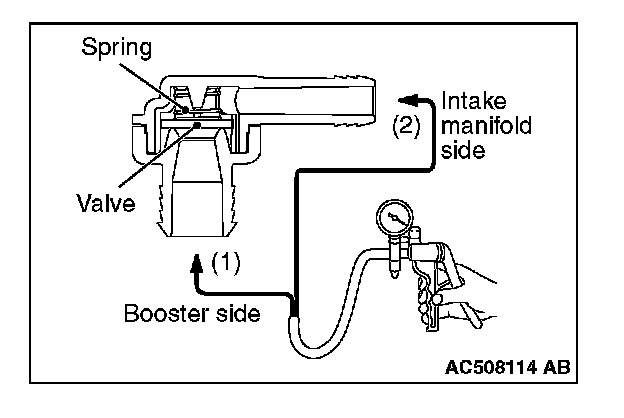

2. Using a vacuum pump, check operation of the check valve.
