Removal and Installation

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

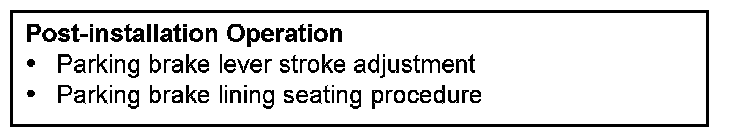

Post-installation Operation:

Removal Steps 1-22:

REMOVAL SERVICE POINTS

[A] REAR BRAKE CALIPER ASSEMBLY REMOVAL
1. Remove the rear brake caliper assembly with the brake hose kept attached
2. Secure the removed rear brake caliper assembly with a wire or other similar material at a position where it will not interfere with the removal and installation works.

[B] REAR BRAKE DISK REMOVAL

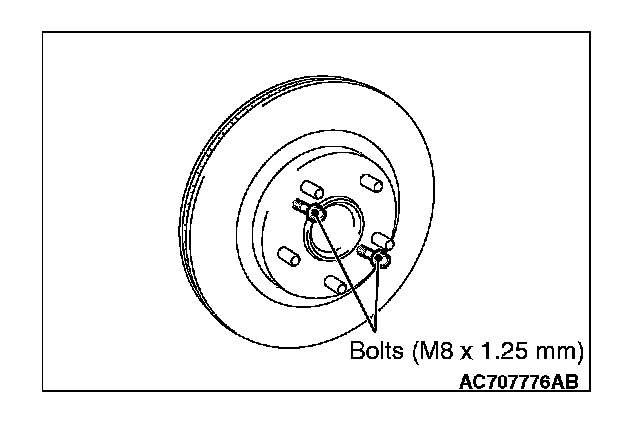

If the rear brake disk removal is difficult, install bolts (M8 x 1.25 mm) shown in the figure, and tighten them evenly and gradually to remove the rear brake disk.
