Installation Service Points

PARKING BRAKE LINING AND DRUM

INSTALLATION SERVICE POINTS

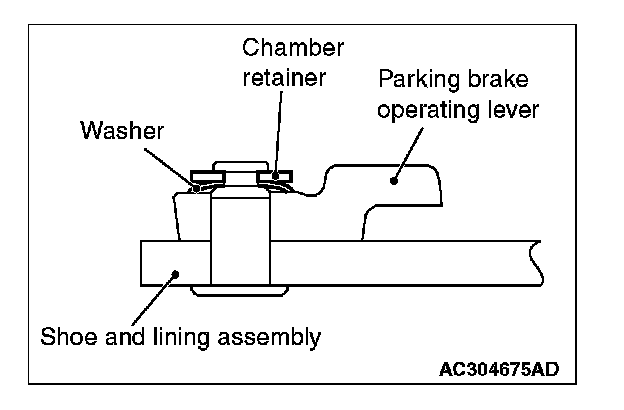

[A] WASHER INSTALLATION





Install the washer in the direction shown in the illustration.

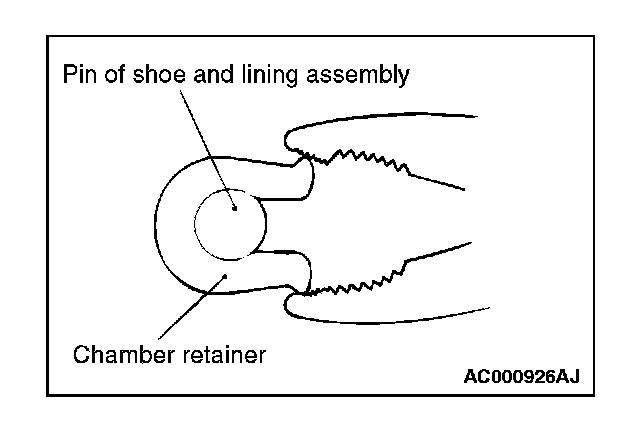

[B] CHAMBER RETAINER INSTALLATION





Use pliers or a similar tool to close the chamber retainer end onto the pin.

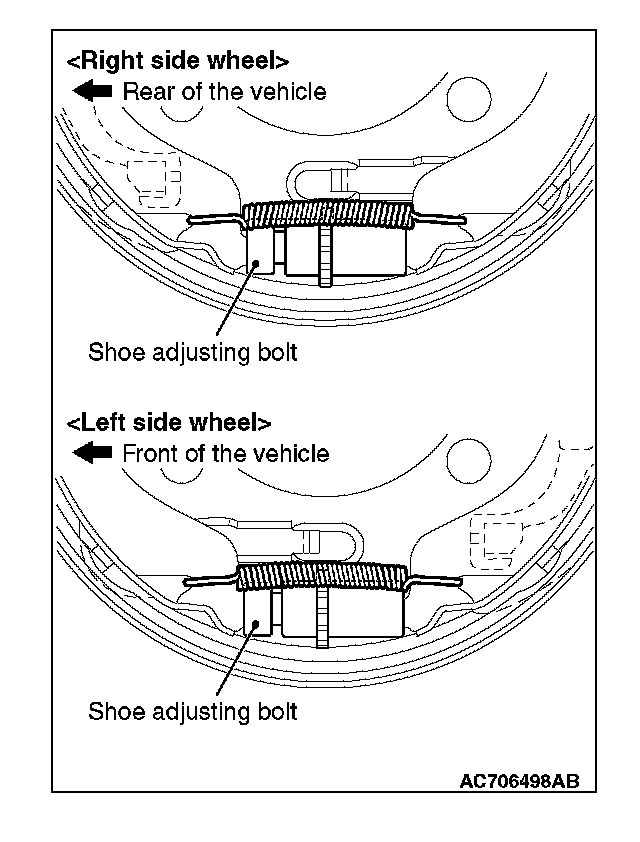

[C] ADJUSTER ASSEMBLY INSTALLATION





Install the adjuster assembly so that the shoe adjusting bolt is positioned at the rear of the vehicle for the left side, and at the front of the vehicle for the right side.

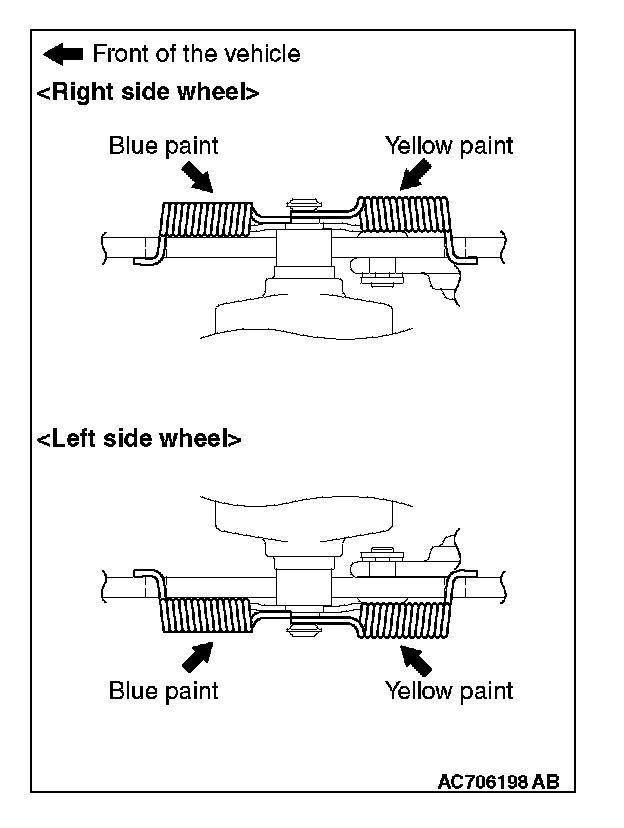

[D] SHOE-TO-ANCHOR SPRING INSTALLATION





The shoe-to-anchor springs are not interchangeable because their spring loads are different. The one with blue paint must be installed to the vehicle front, and the other with yellow paint to the vehicle rear.
