Removal and Replacement

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

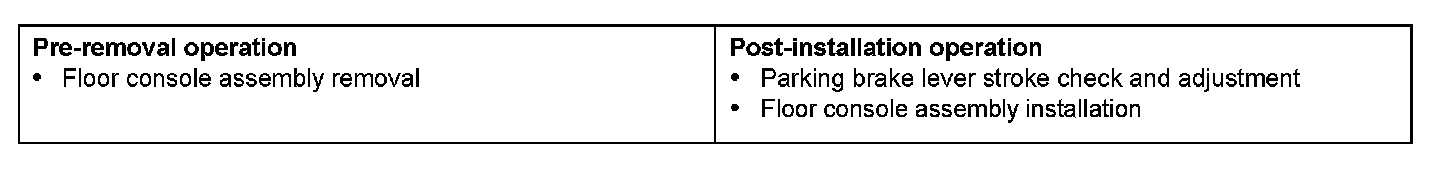

Pre-removal & Post-installation Operation:

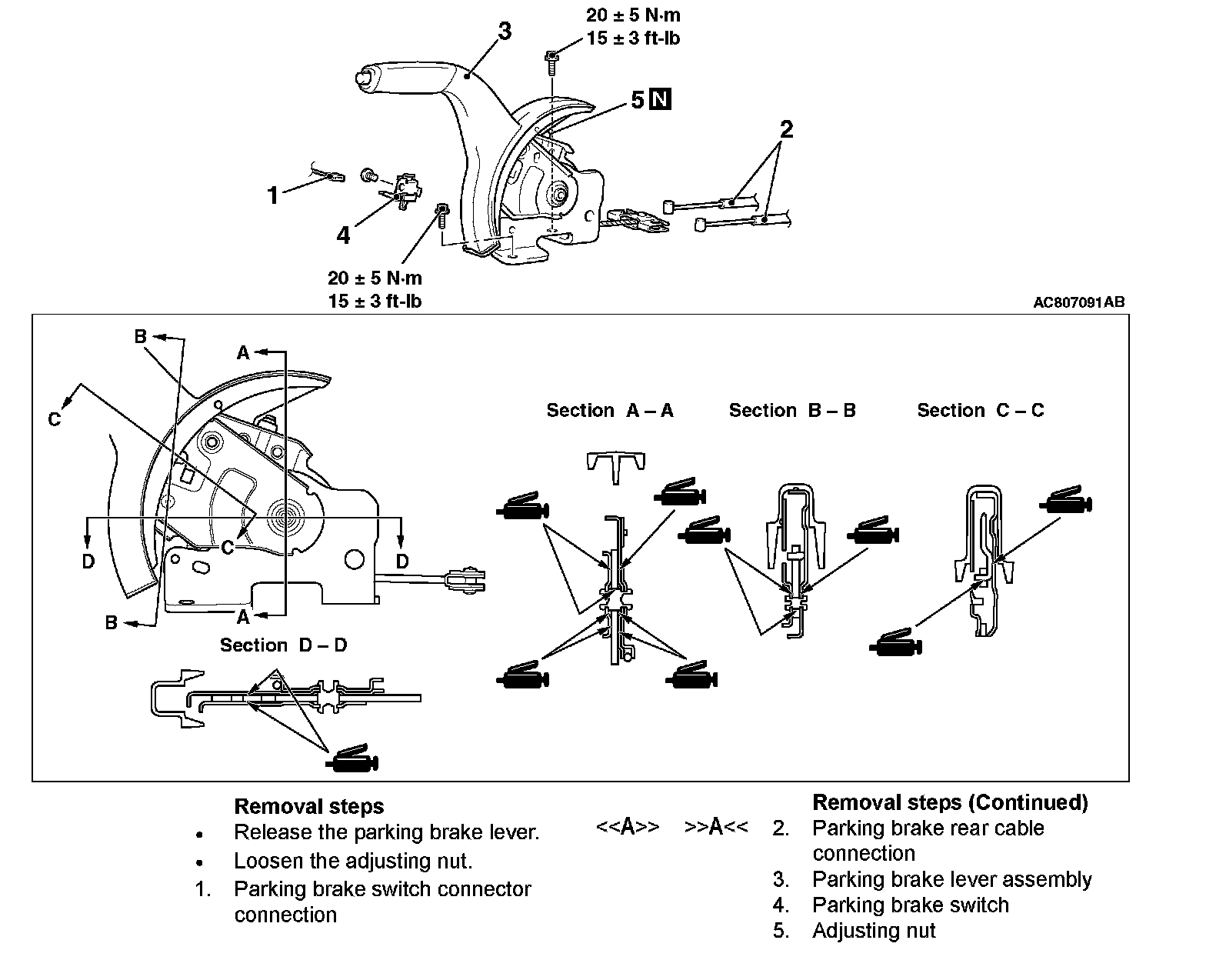

Removal Steps 1-5:

REMOVAL SERVICE POINT

[A] PARKING BRAKE REAR CABLE DISCONNECTION
Disconnect the parking brake rear cable according to the procedure below.

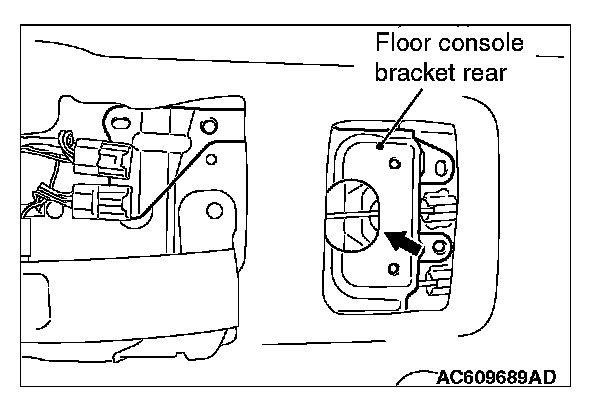

1. Release the parking brake, and loosen the adjusting nut.

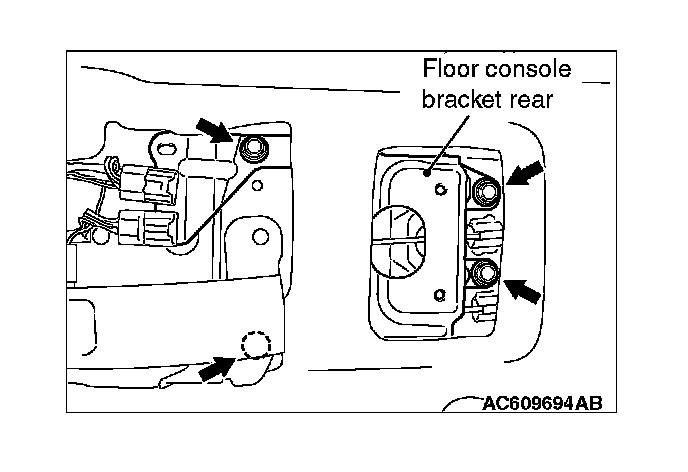

2. Remove the floor console bracket rear mounting bolts.





3. Slide the floor console bracket rear, and disconnect the parking brake rear cable from the hole shown by the arrows.

INSTALLATION SERVICE POINT

[A] PARKING BRAKE REAR CABLE CONNECTION INSTALLATION

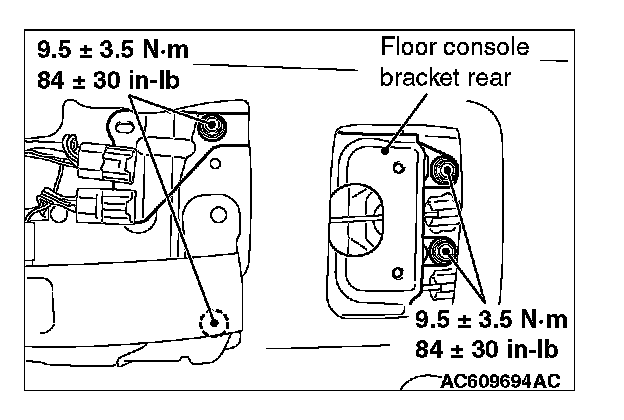

Install the parking brake rear cable connection, and then tighten the floor console bracket rear mounting bolts to the specified torque.
Tightening torque: 9.5 ± 3.5 Nm (84 ± 30 in-lb)
