Parking Brake System: Description and Operation

GENERAL INFORMATION
The parking brakes are a mechanical rear wheel brake design and controlled by a lever.

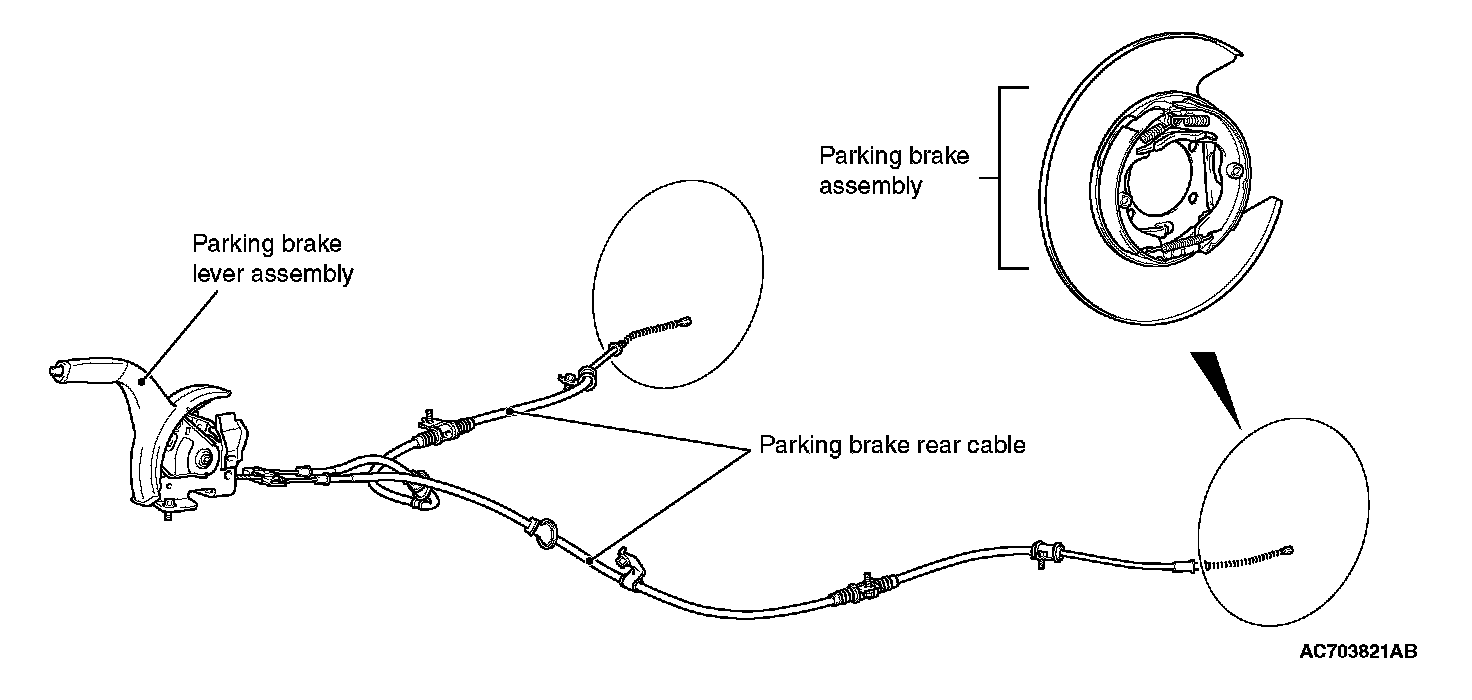

CONSTRUCTION DIAGRAM
