Removal and Installation

MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY

REMOVAL AND INSTALLATION

[MASTER CYLINDER AND BRAKE BOOSTER]

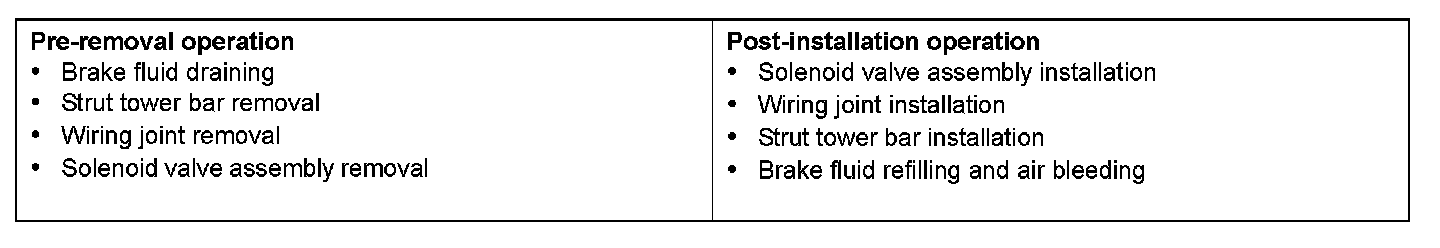

Pre-removal & Post-installation Operation:




Removal Steps 1-4:

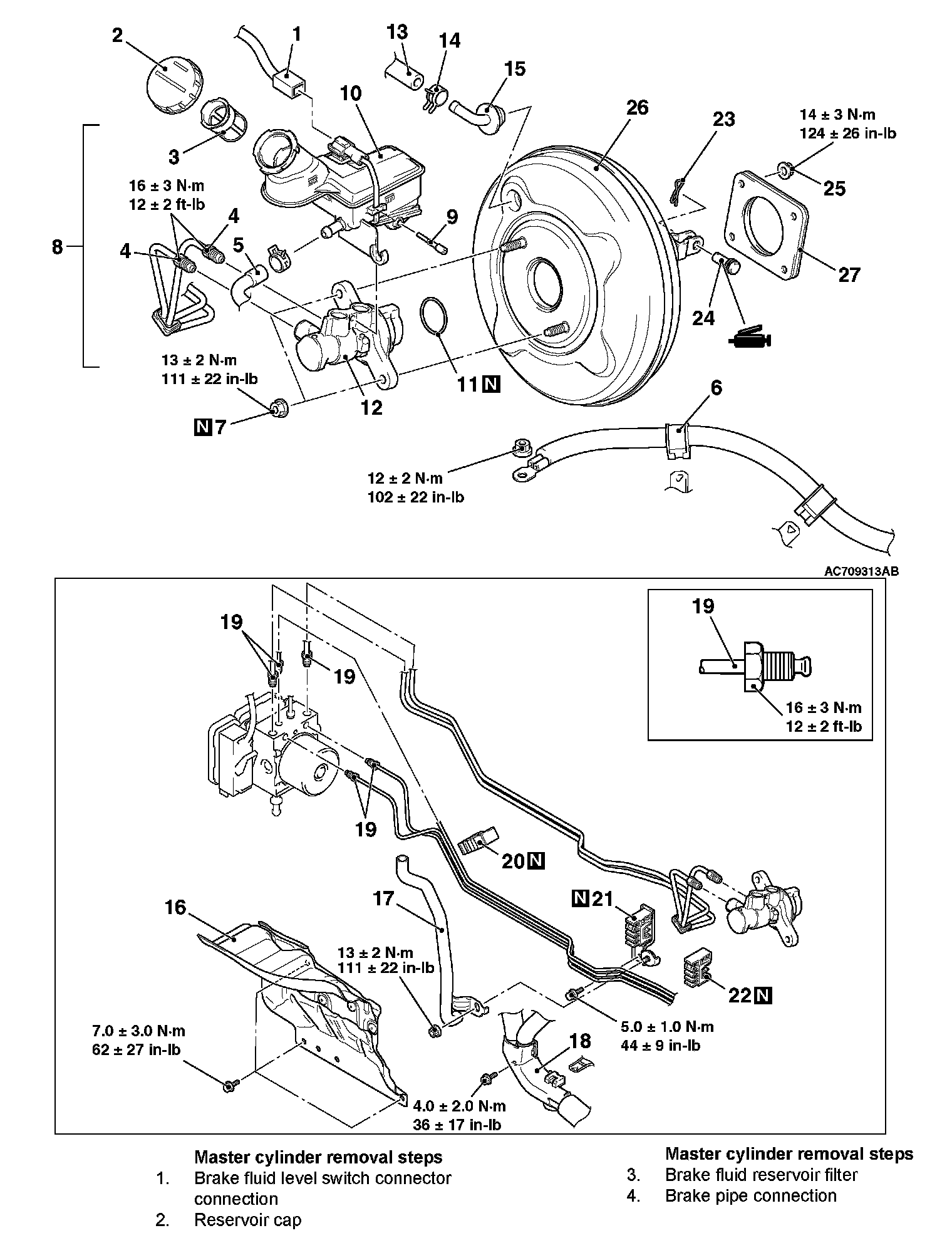

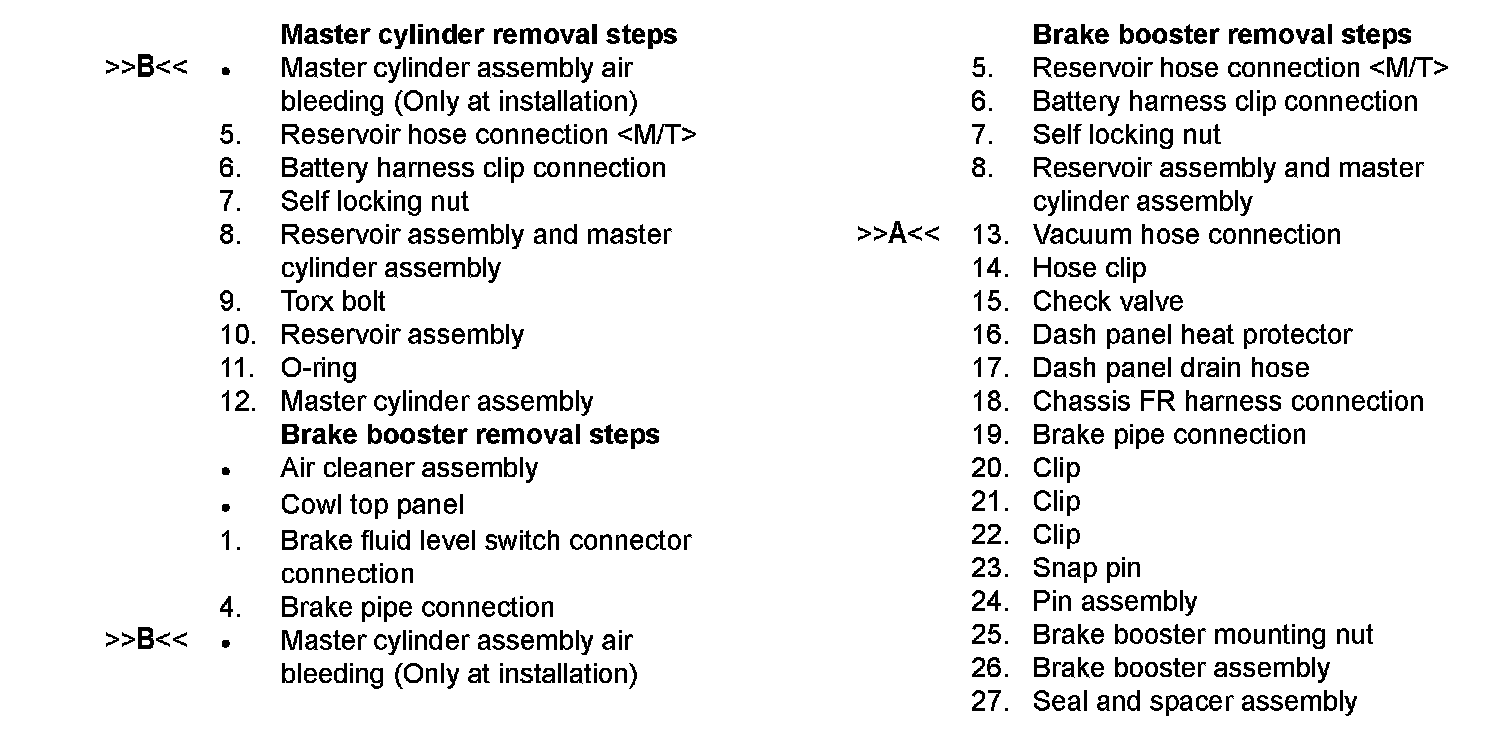

Removal Steps 1-27:





[VACUUM HOSE AND VACUUM PIPE]

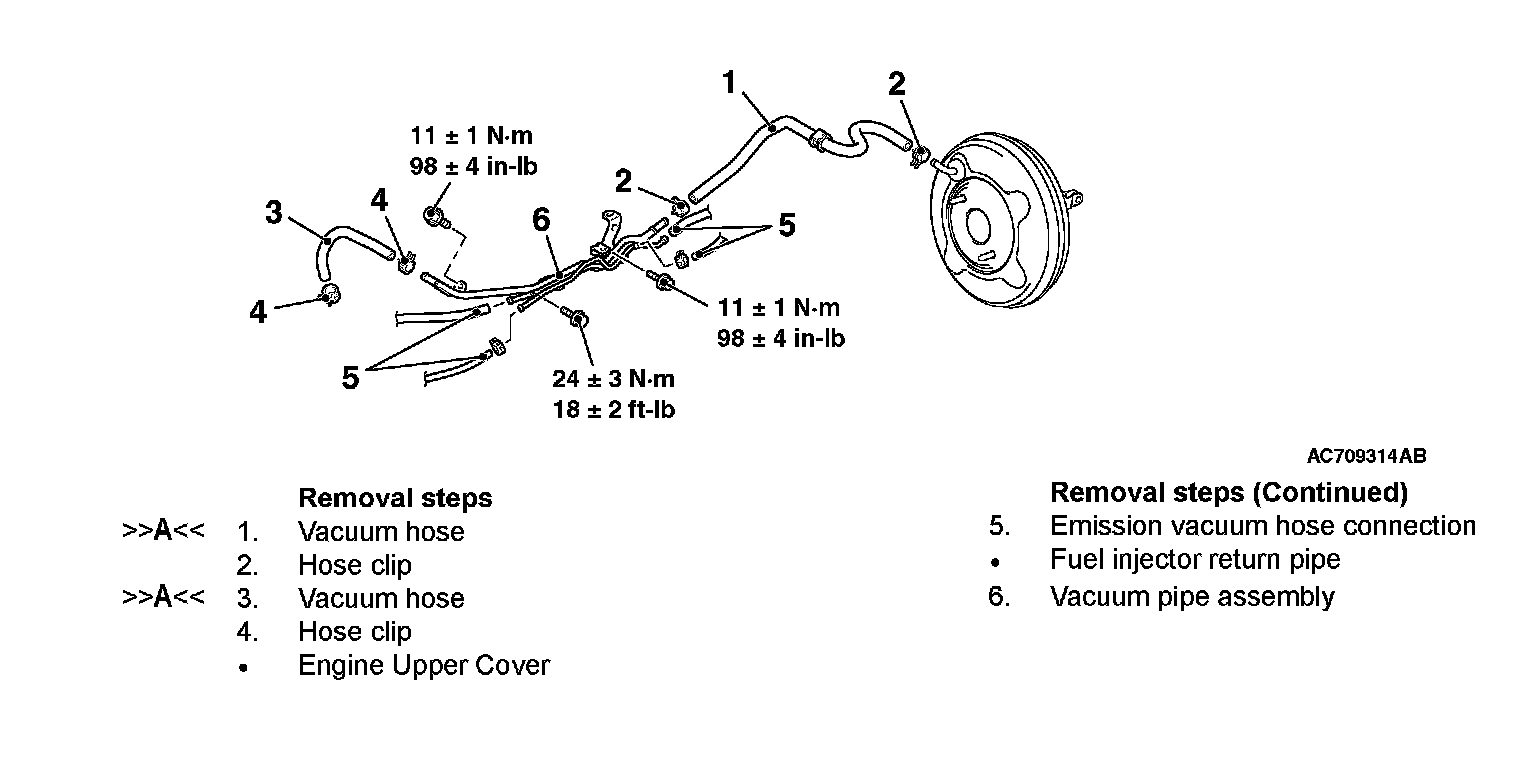

Removal Steps 1-6:
