Removal and Installation

FRONT DISC BRAKE ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION:
Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

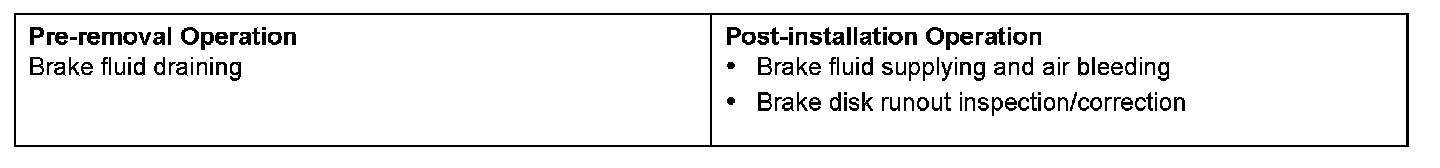

Pre-removal & Post-installation Operation:

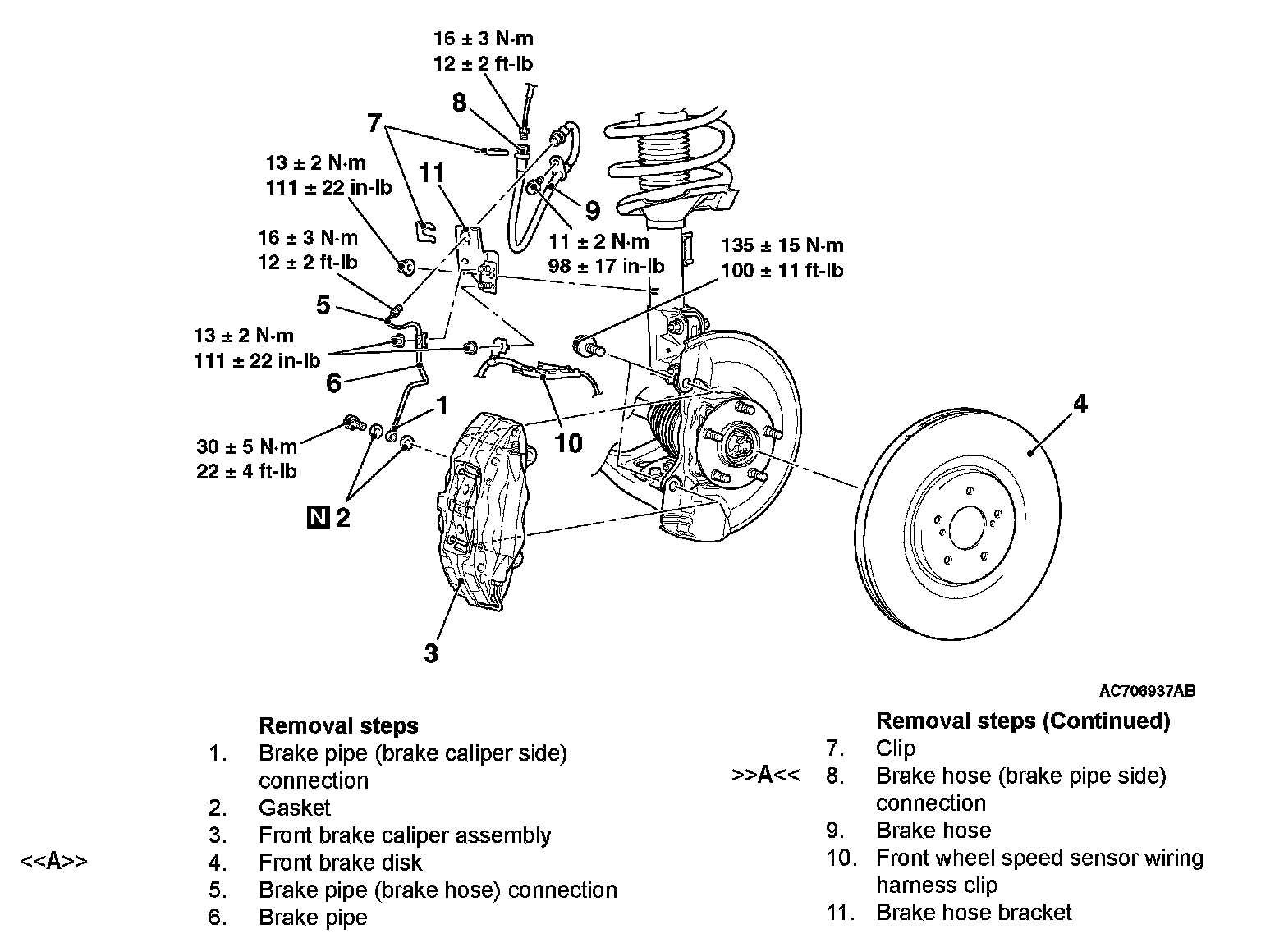

Removal Steps 1-11:

REMOVAL SERVICE POINT

[A] FRONT BRAKE DISK REMOVAL

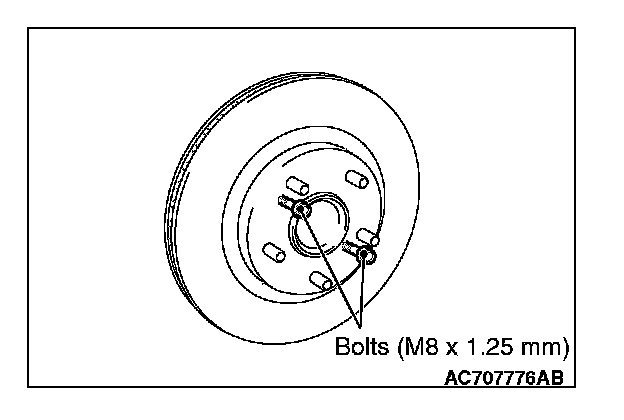

If the front brake disk removal is difficult, install bolts (M8 x 1.25 mm) shown in the figure, and tighten them evenly and gradually to remove the front brake disk.
