Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Service and Repair >> Overhaul >> Front >> Disassembly and Assembly

Disassembly and Assembly

FRONT DISC BRAKE ASSEMBLY

DISASSEMBLY AND ASSEMBLY

CAUTION:
Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

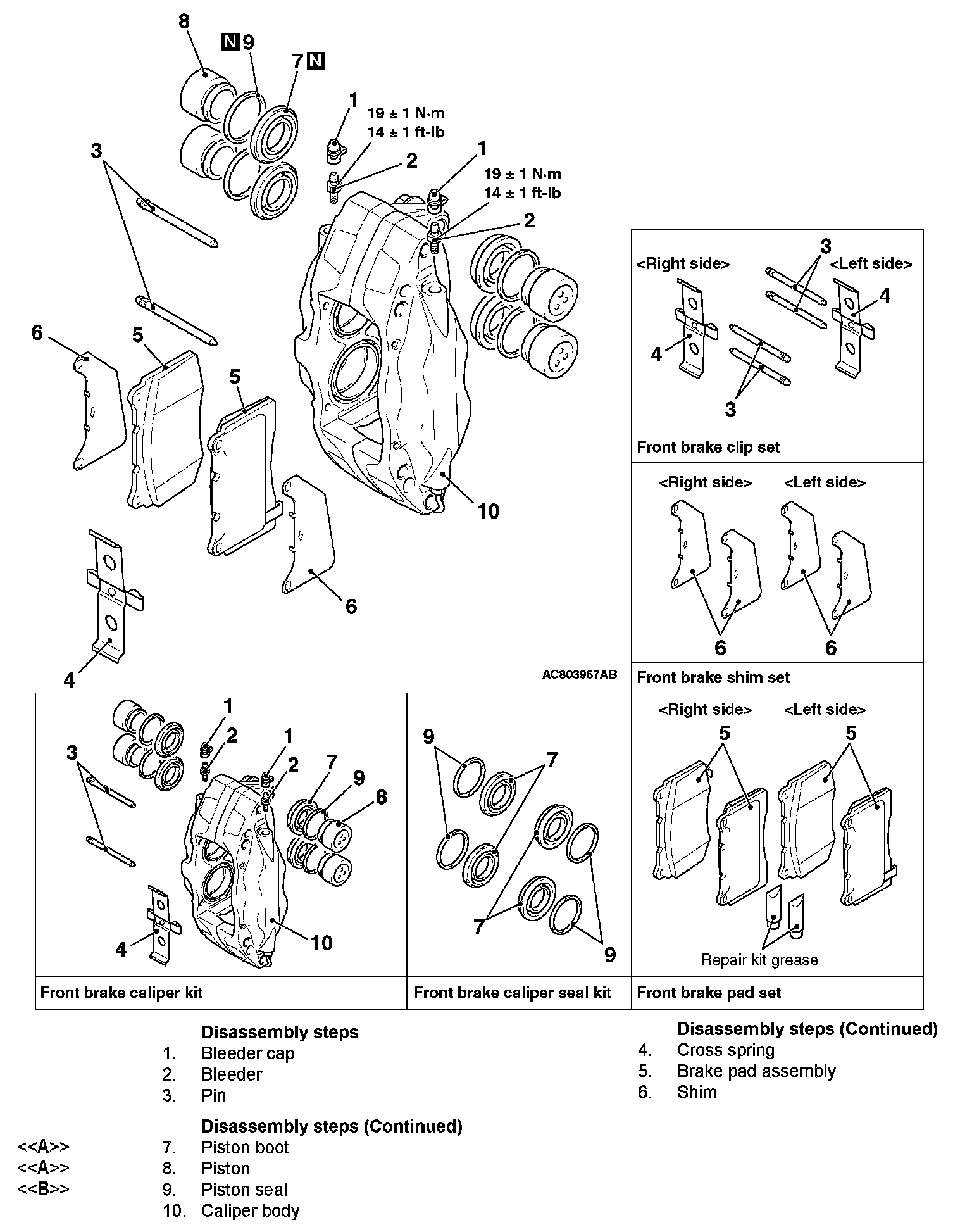

Disassembly Steps 1-10:
