Disk Brake Rotor Check
Disk Brake Rotor Check
DISK BRAKE ROTOR CHECK
CAUTION:
Disk brakes must be kept within the allowable service values in order to maintain normal brake operation.

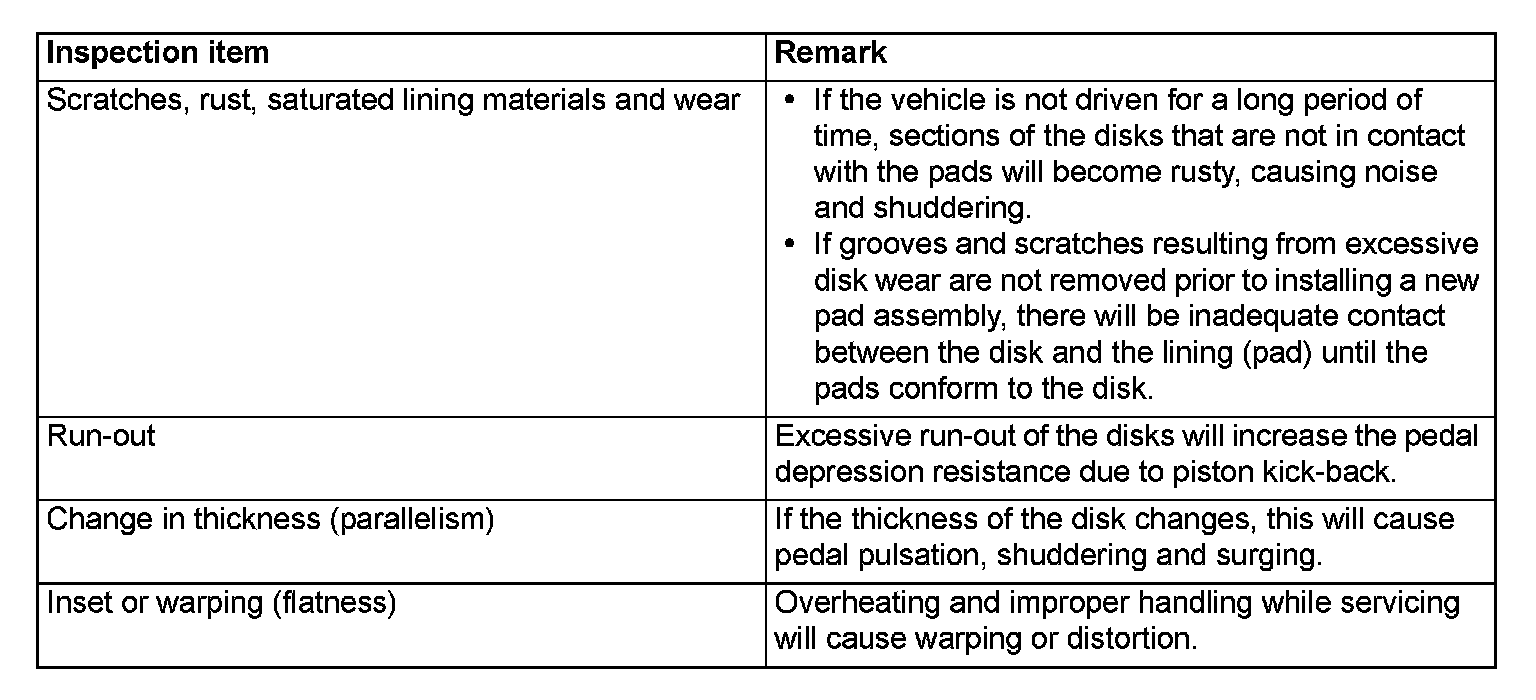

Before turning the brake disk, the following conditions should be checked.
