Brake Pedal Assy: Service and Repair
BRAKE PEDALREMOVAL AND INSTALLATION
CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

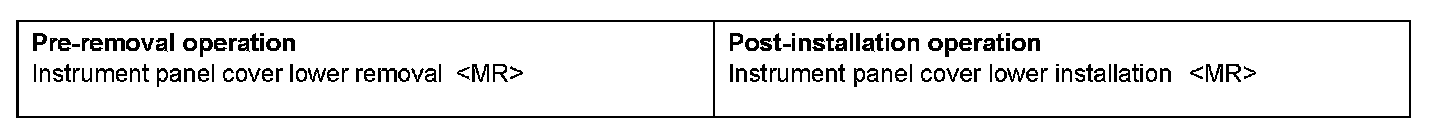

Pre-removal & Post-installation Operation:

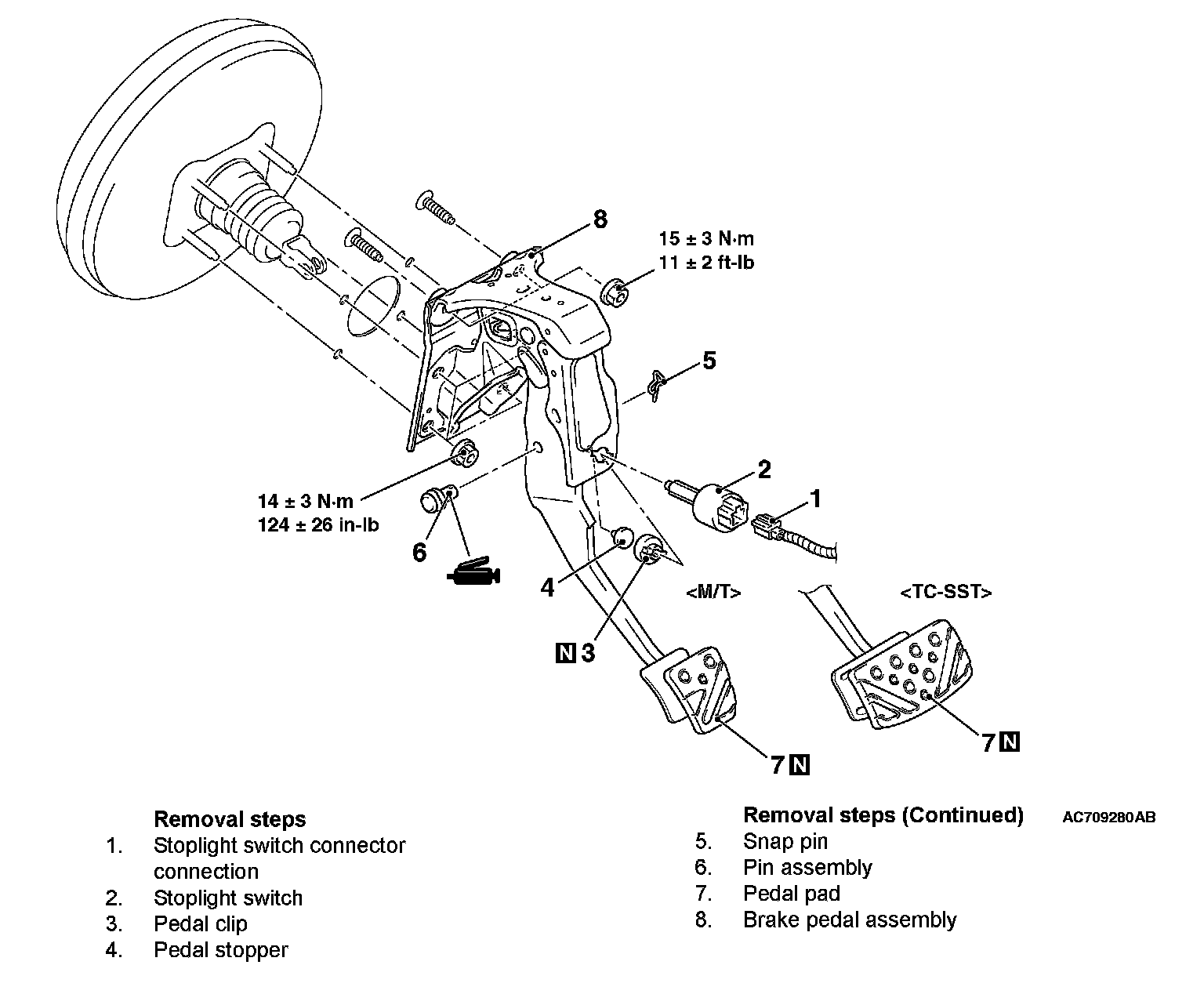

Removal Steps 1-8:
