How to Perform Actuator Test

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827: M.U.T.-III USB Cable
^ MB991910: M.U.T.-III Main Harness A

CAUTION:

To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

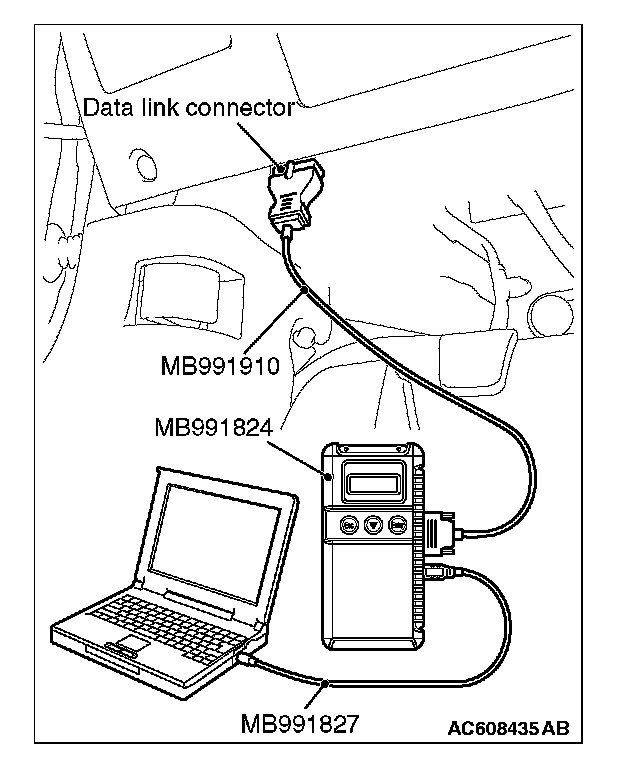

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select."
4. Select "ABS/ASC/ASTC" from the system list, and select the "OK" button.
5. Choose "Actuator Test" from "ABS" screen.
6. Choose an appropriate item and select the "OK" button.
