Data List Reference Table

DATA LIST REFERENCE TABLE

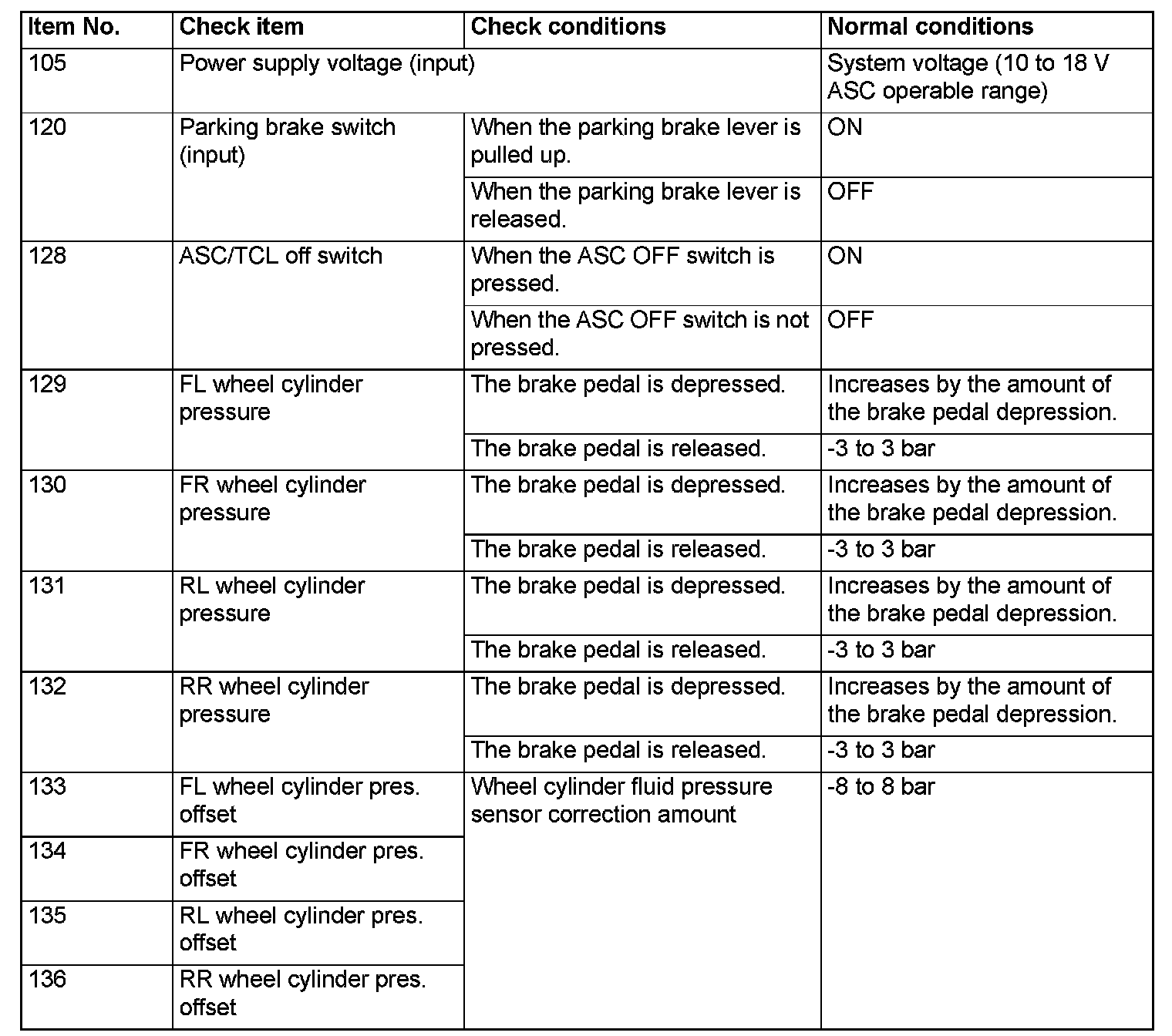

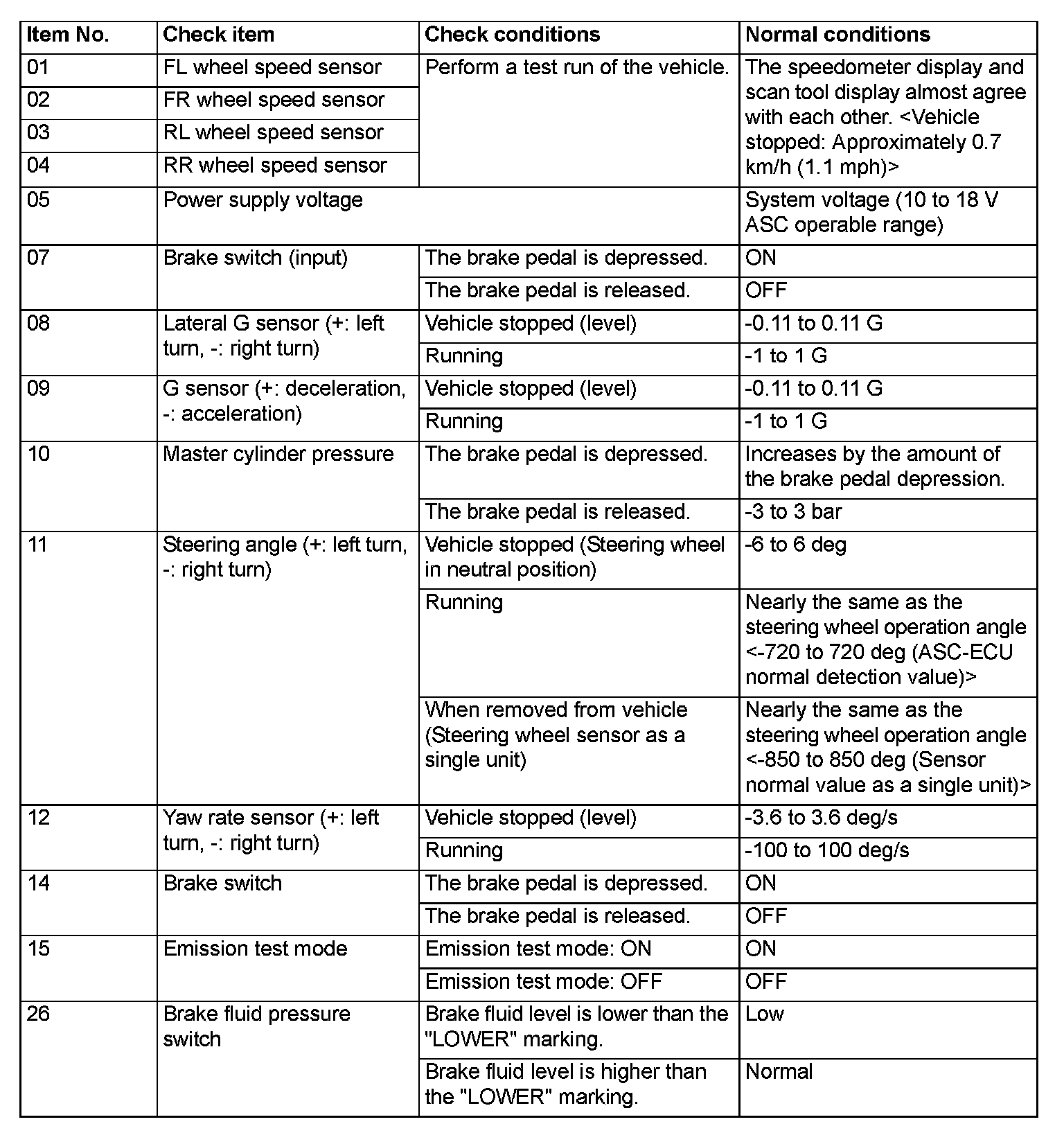

The following items of ECU input data can be read using the scan tool.

1. The system is normal.











2. System shutdown by ECU
While ASC-ECU is disabled by the diagnostic function, the scan tool displayed data is different from the actual measurement.
