Fail-Safe Function

FAIL-SAFE FUNCTIONS
When a malfunction is determined by the diagnostic function, ASC-ECU illuminates the ABS warning light, ABS warning display, brake warning display, brake warning light , ASC warning display, and ASC OFF display. At the same time, ASC-ECU prohibits the ABS, EBD, stability control, and TCL control.

NOTE: *: The brake warning light and brake warning display are used as the EBD control warning light.

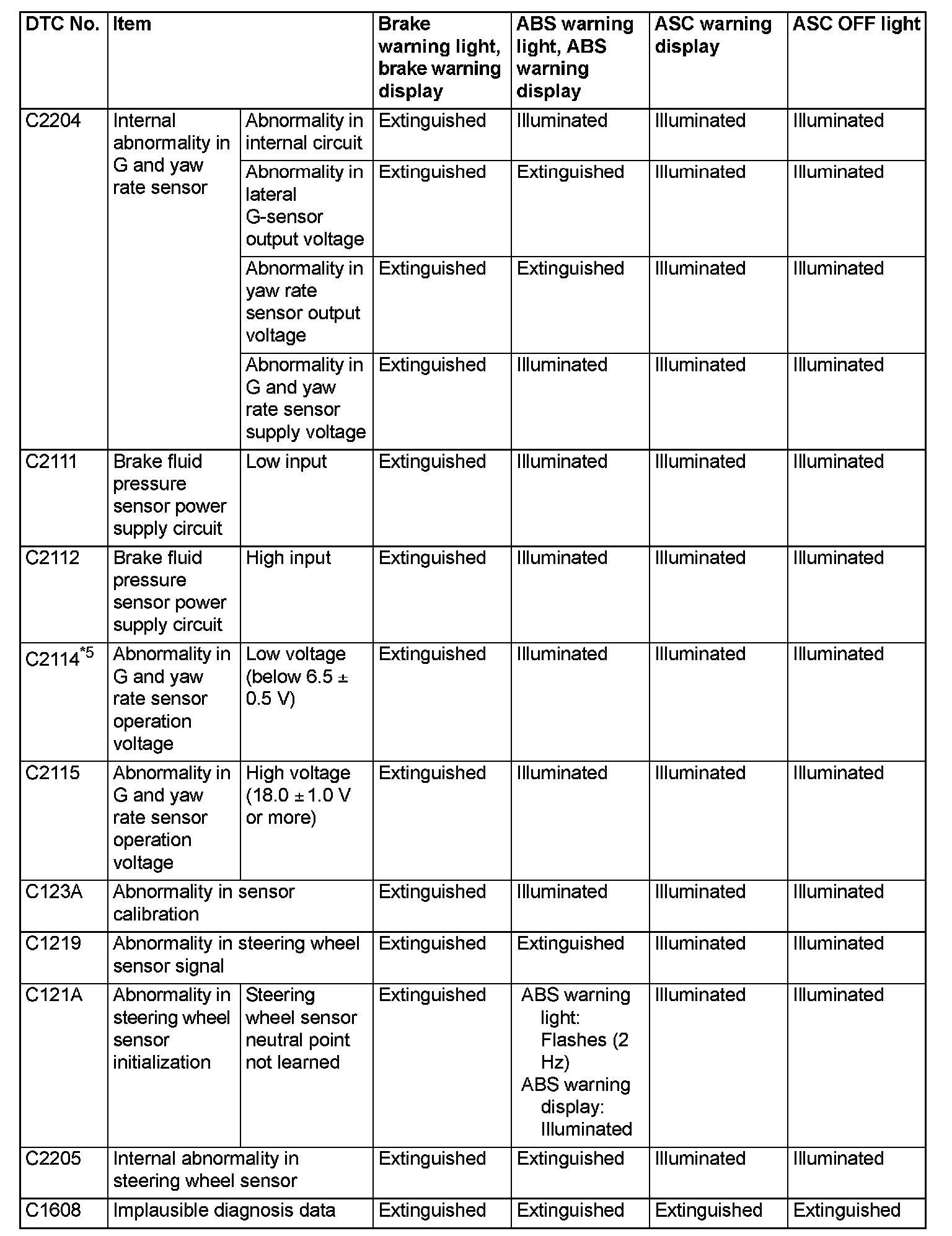

Illumination condition of warning light and display in case of failure

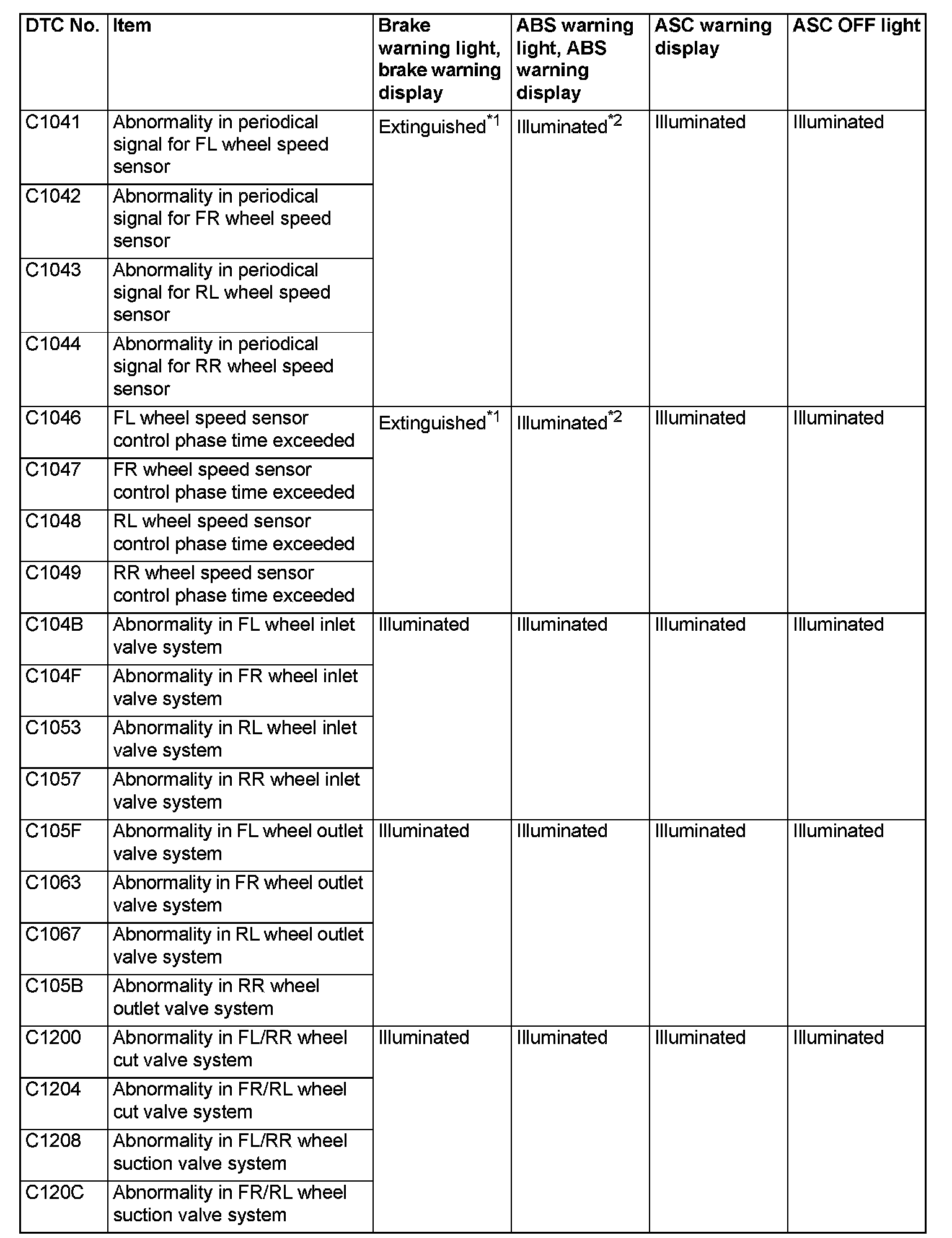

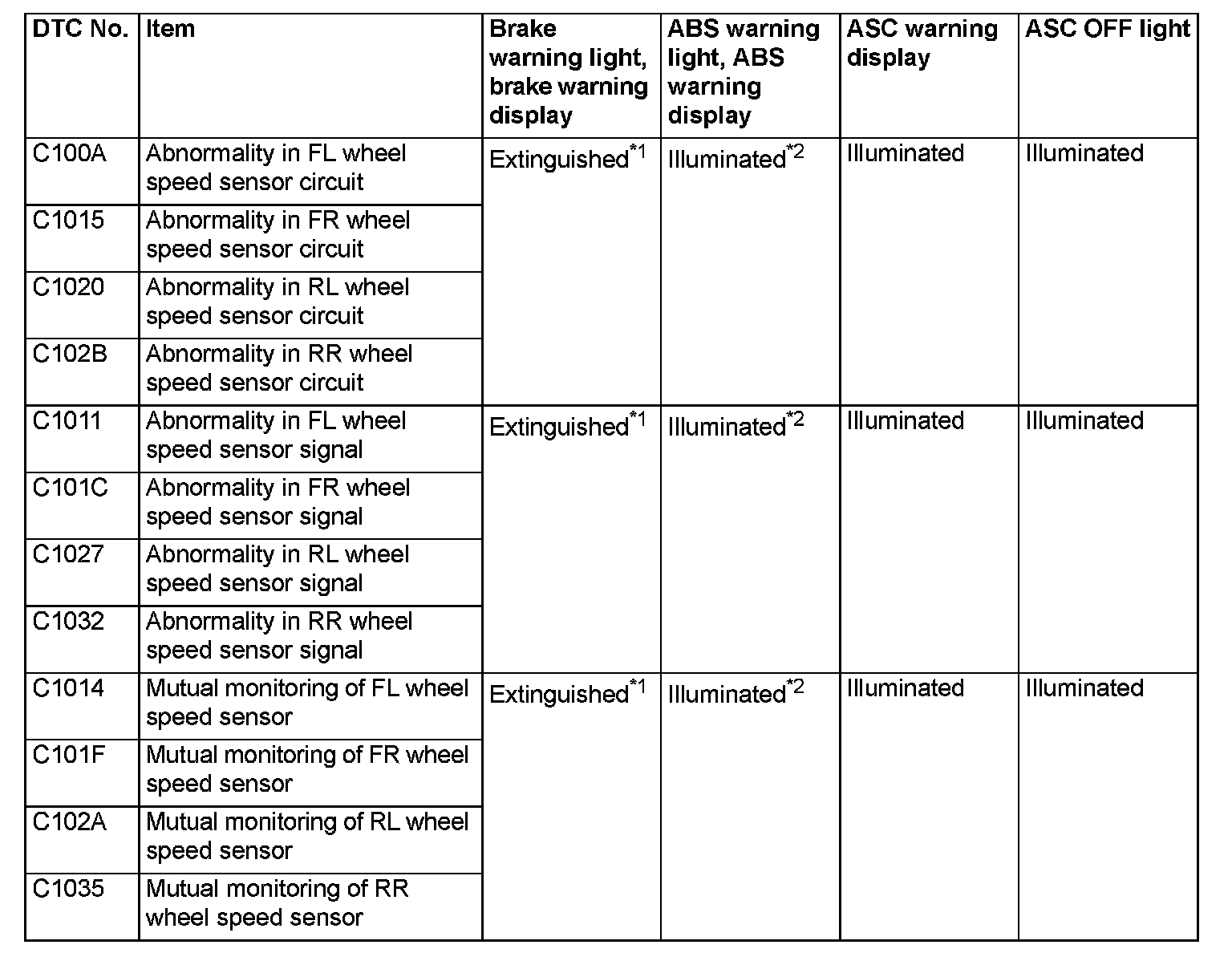

C100A-C1035:

C1041-C120C:

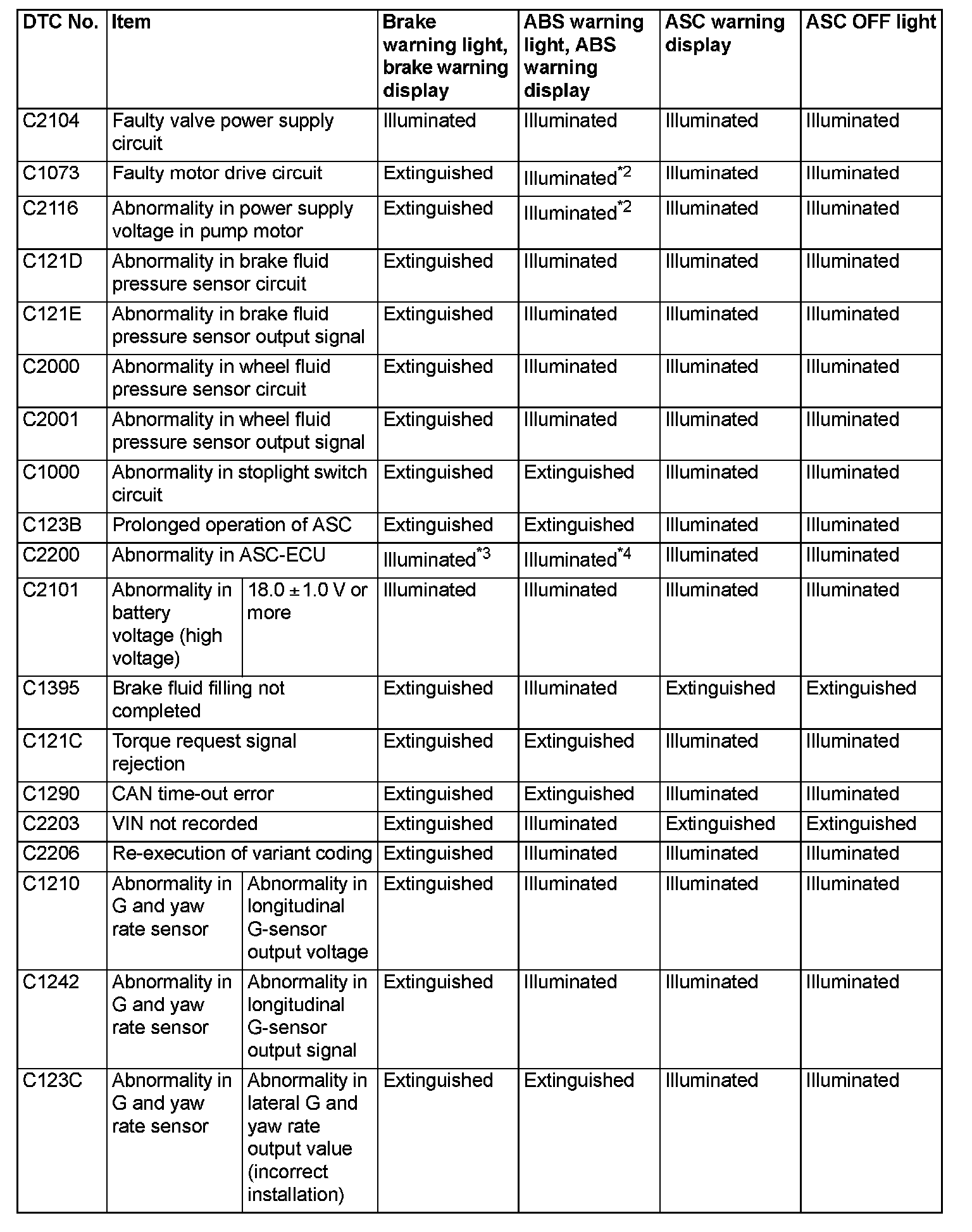

C1000-C2206:

C121A-C2205:

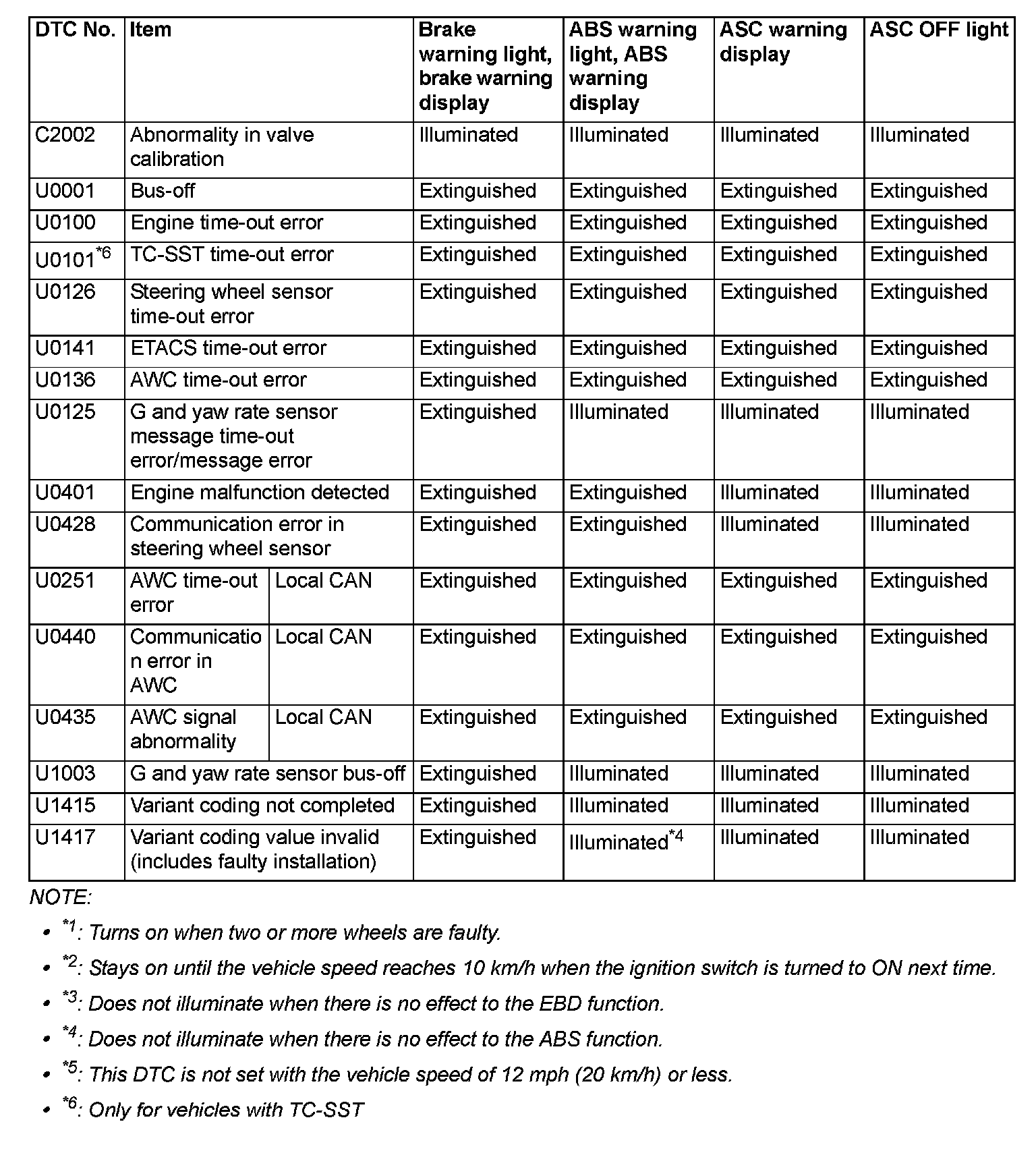

C2002 / U0001-U1417:

EBD, ABS, stability control, and TCL control status at failure

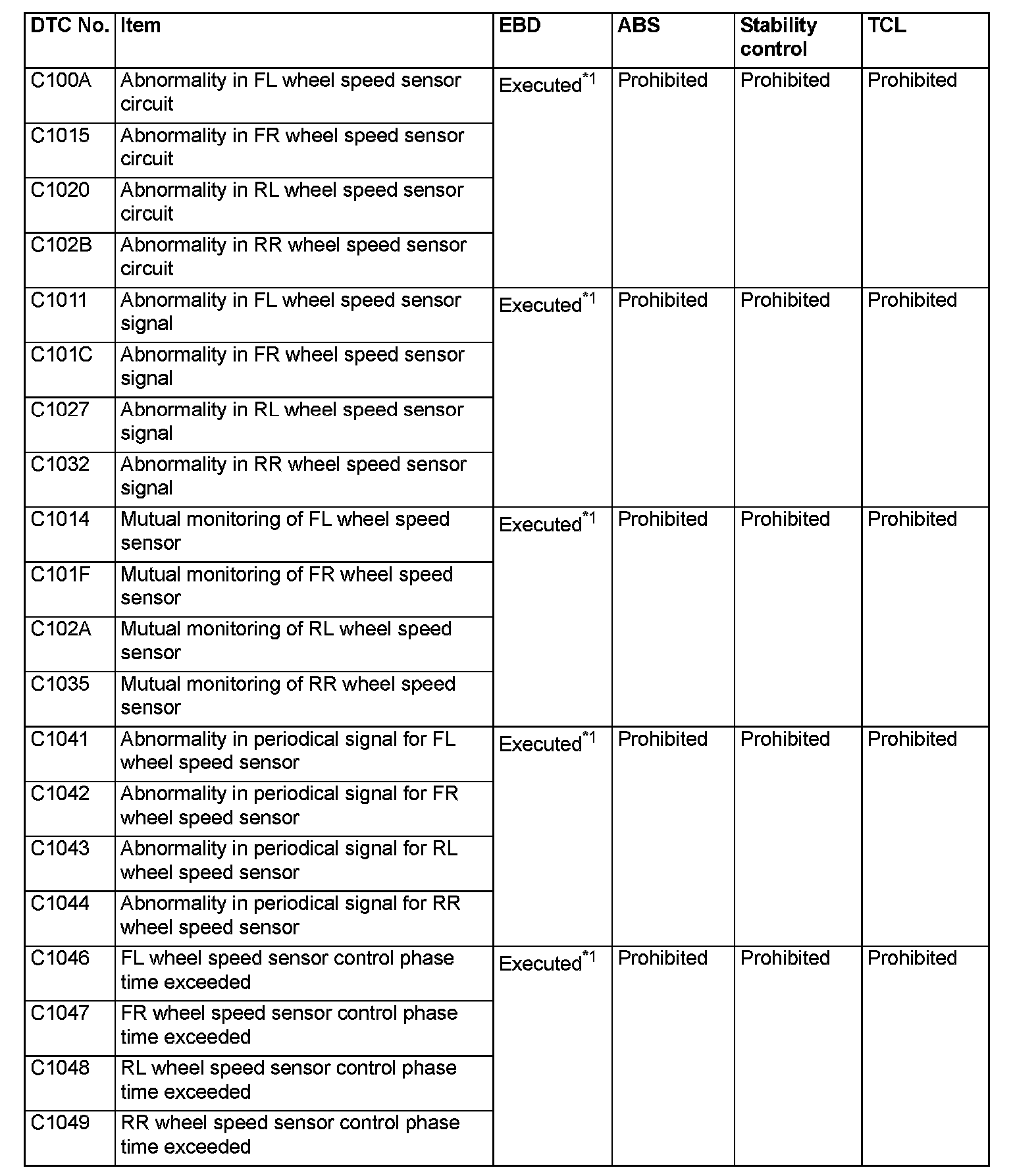

C100A-C1049:

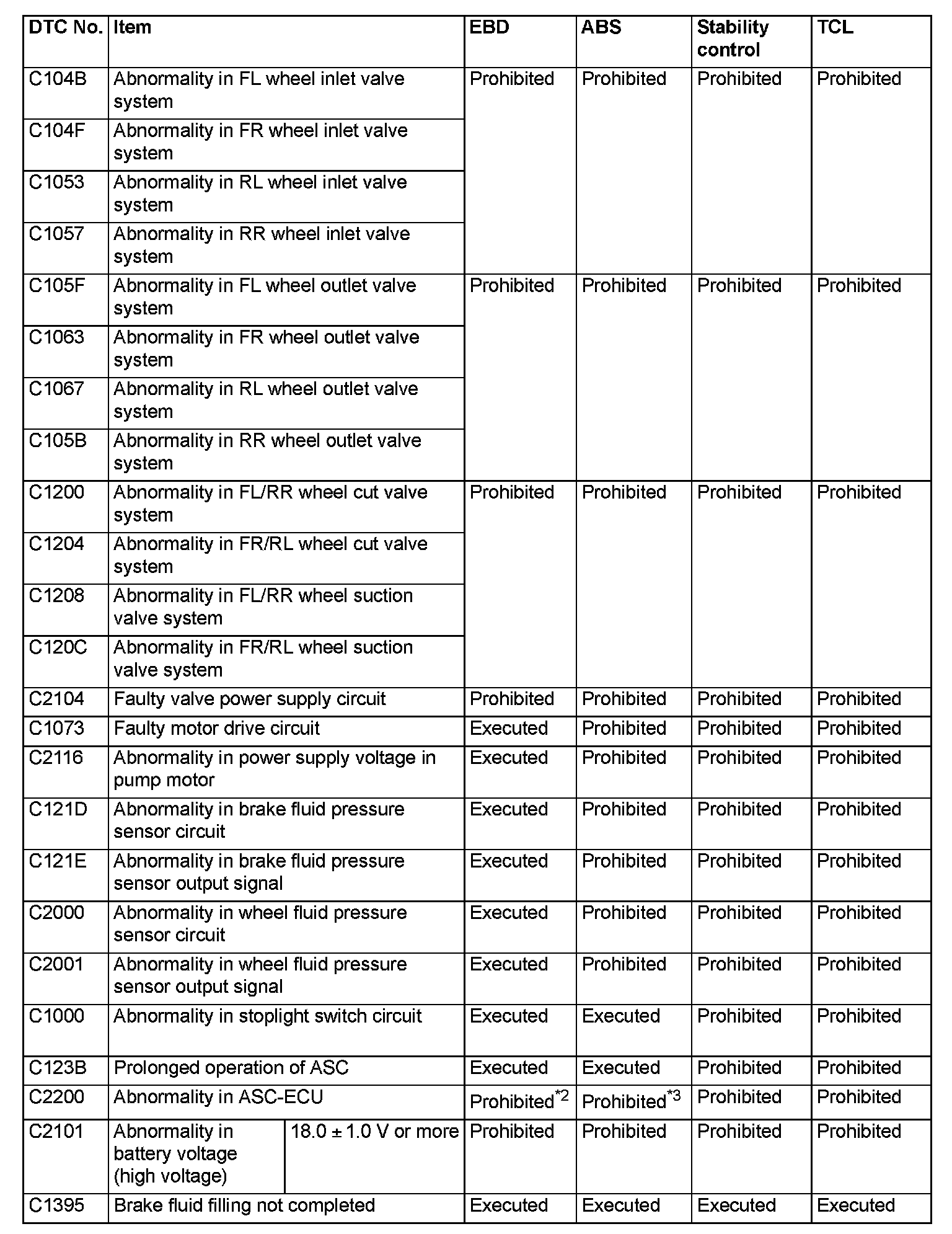

C104B-C2200:

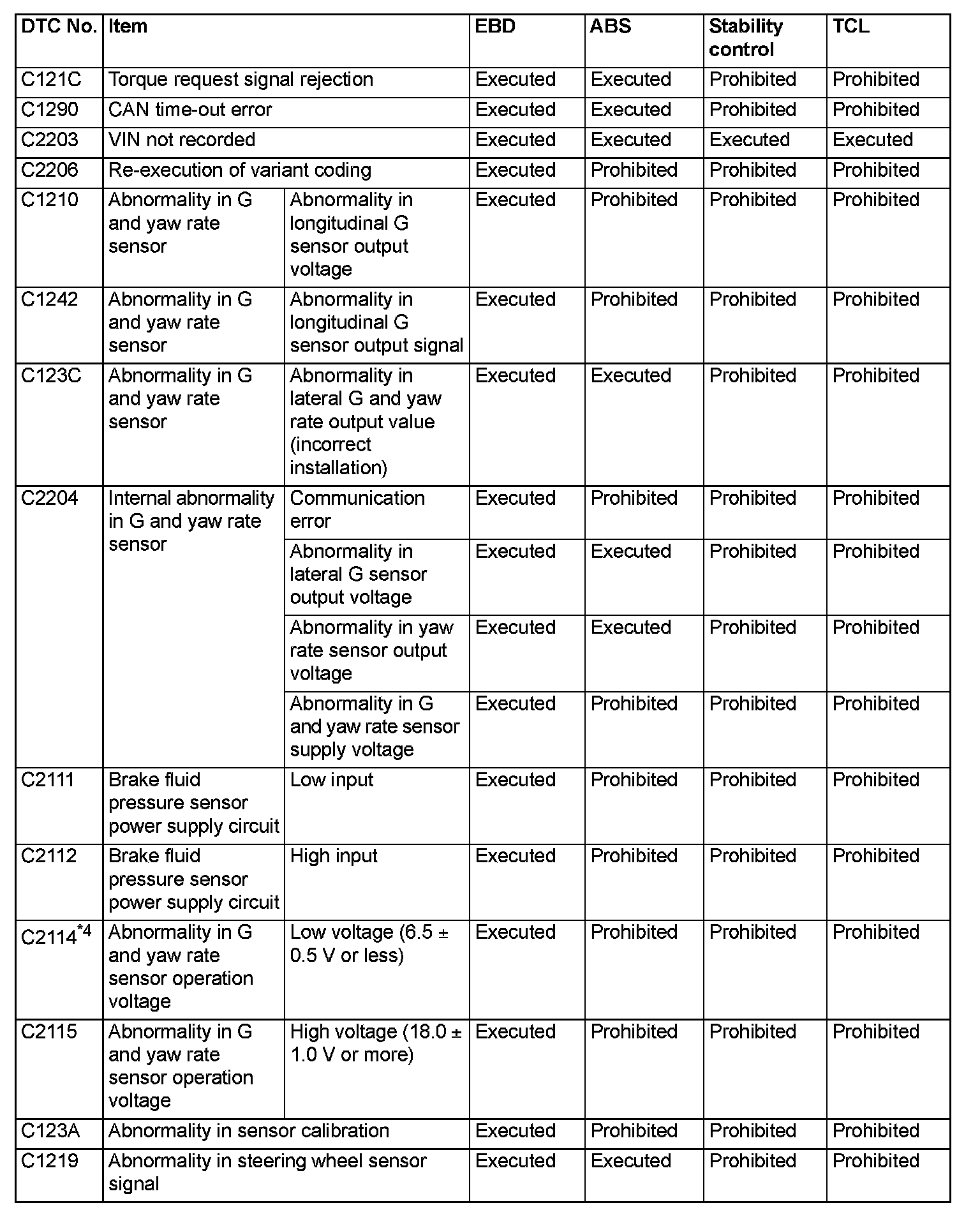

C121C-C2206:

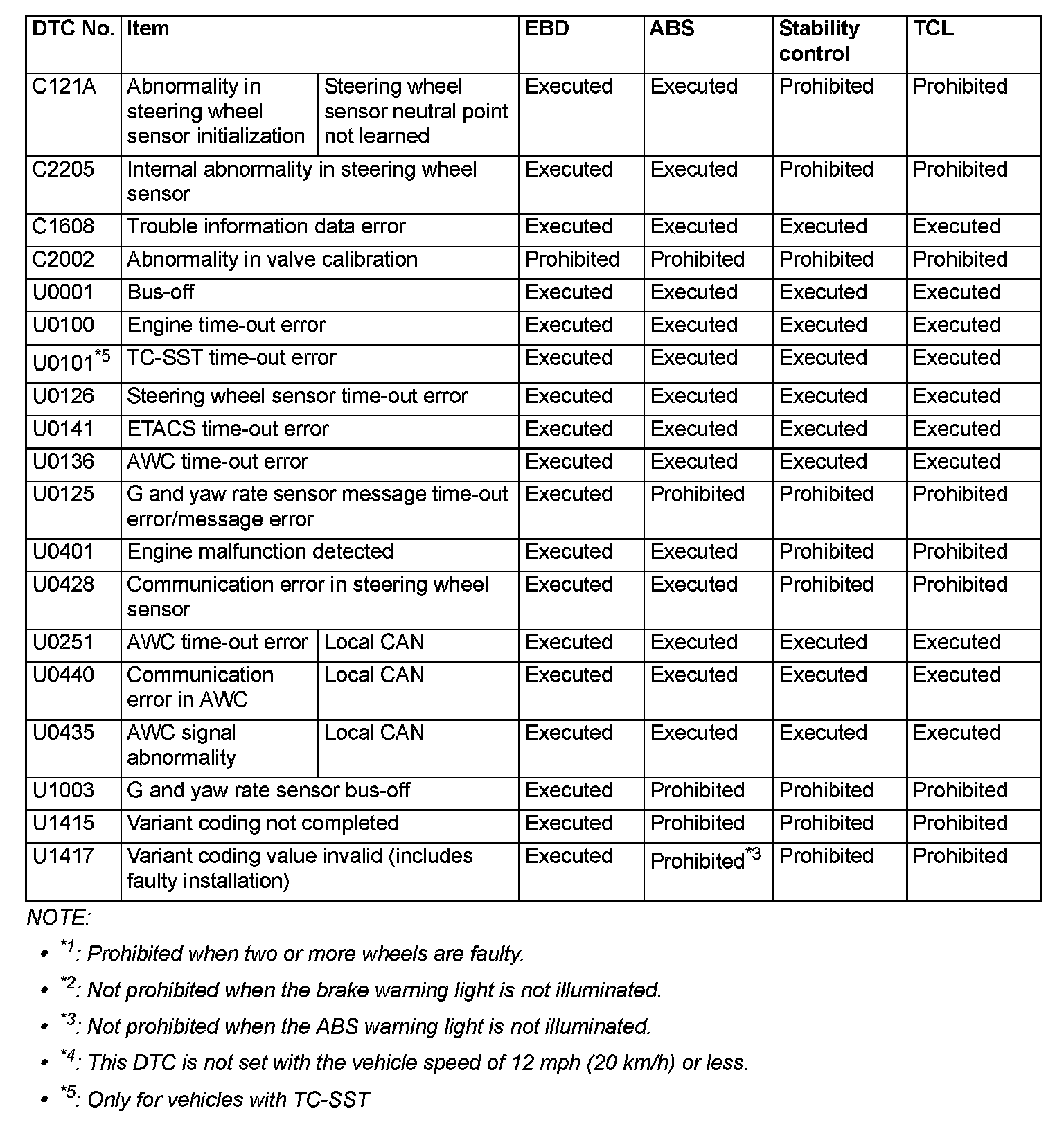

C121A-C2205 / U0001-U1417:
