Removal Service Points

HYDRAULIC UNIT

REMOVAL SERVICE POINTS

[A] ASC-ECU WIRING HARNESS CONNECTOR DISCONNECTION

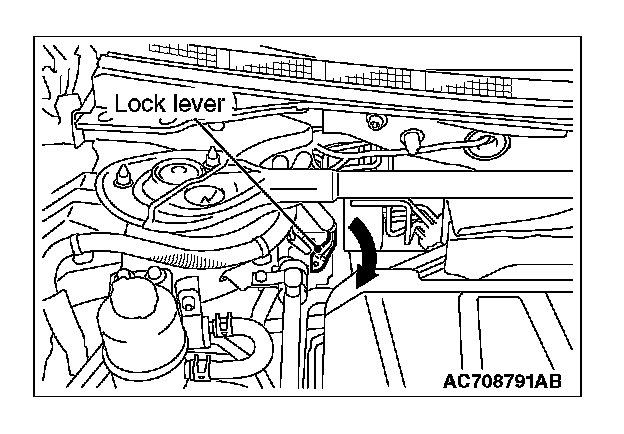

Operate the lock lever as shown in the figure to disconnect the ASC-ECU wiring harness connector.

[B] HYDRAULIC UNIT (ASC-ECU) REMOVAL

CAUTION:
^ Be careful when removing the hydraulic unit because it is heavy.
^ Never loosen the nuts and the bolts because the hydraulic unit cannot be disassembled.
^ Do not drop or shock the hydraulic unit.
^ Do not turn the hydraulic unit upside down or lay down the unit because the inner air becomes difficult to be bled.
