Silencer Application Locations

SILENCER APPLICATION LOCATIONS

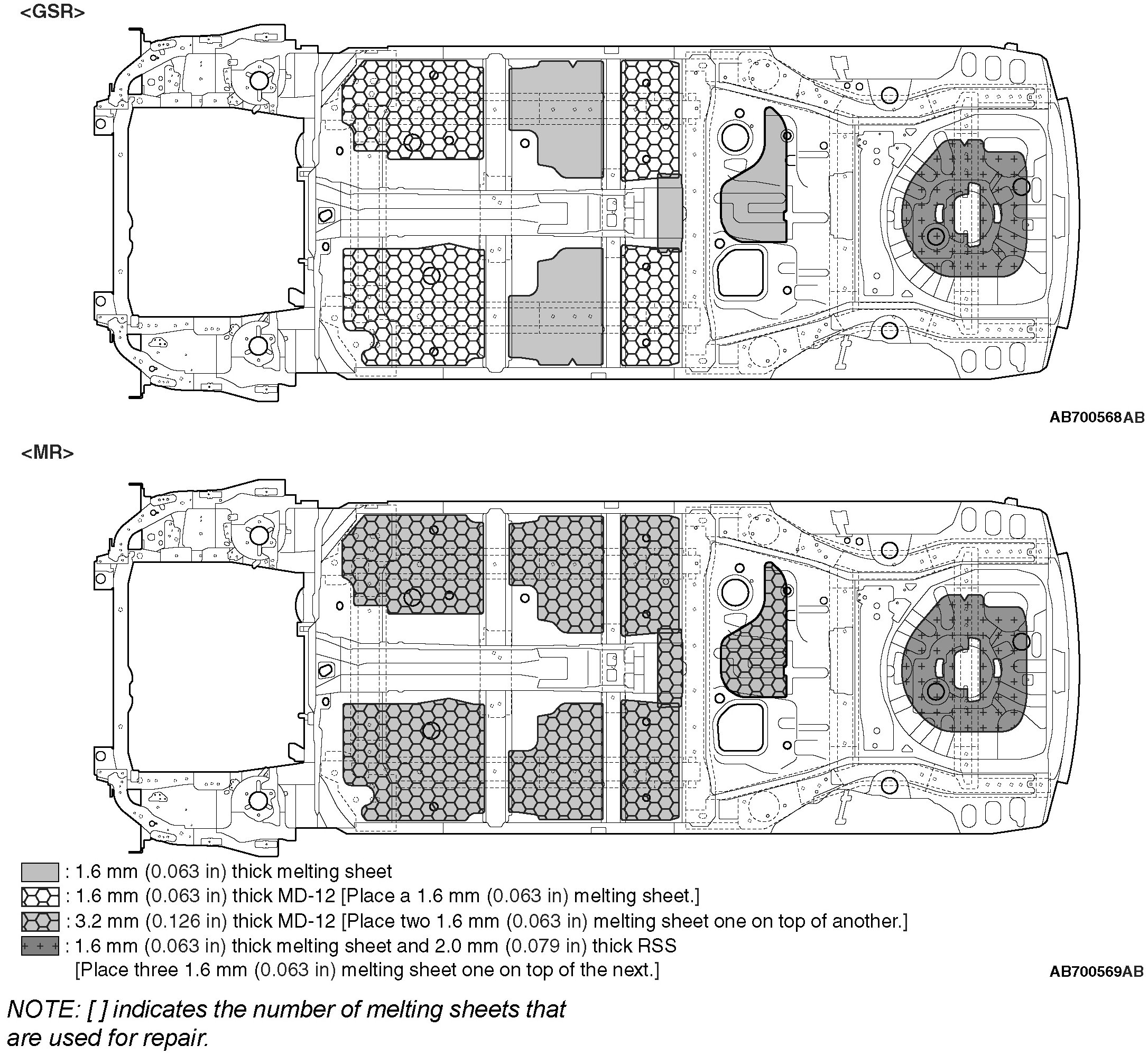

A silencer (MD-12, RSS and melting sheet) has been affixed on the upper surface of the floor for vibration damping.

NOTE:
- MD-12 is a high performance sheet composed of asphalt applied with mica and thermosetting resin for improving anti-vibration performance.
- RSS (Rubber Special Sheet) is a product name of Nihon Tokushu Toryo Co., Ltd. The product features the same performance as a steel sheet sandwich type and refers to a heat cured resin sheet that is molded into a sheet with a uniform thickness. It contains degenerating resin and filler with asphalt and rubber as the main contents.
