Seats: Testing and Inspection
INSPECTIONCONTINUITY TEST OF HEATED SEAT SWITCH

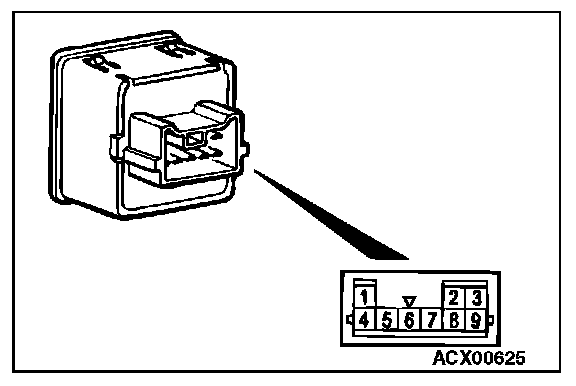

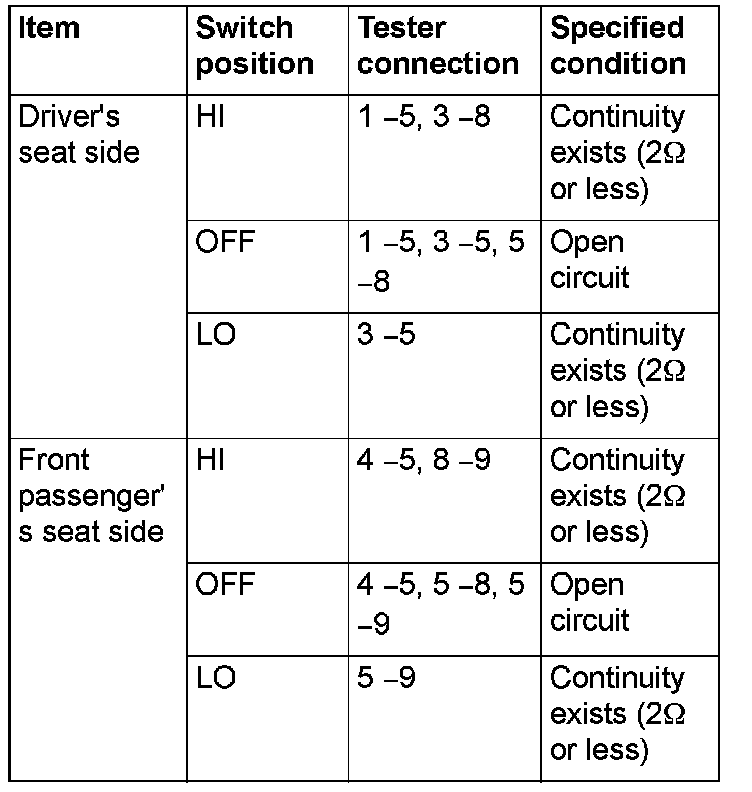

1. Check for continuity between terminals.
2. Check that the indicator is lighted at HI or LO when battery voltage is supplied to terminal 5 and terminal 8 is grounded.
3. Check that indicator is lighted when battery voltage is supplied to terminals 2 and terminal 6.
SEAT CUSHION HEATER CHECK

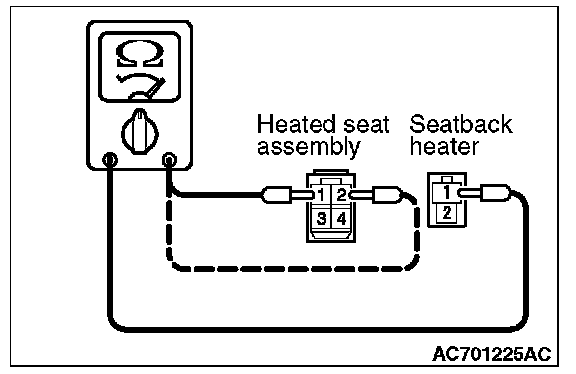

Measure the resistance between terminals.
Standard value: At room temperature 20 ° C (68 ° F)
Between heated seat assembly terminals 1 and seatback heater terminal 1: 3.84 ± 4.69 ohms
Between heated seat assembly terminals 2 and seatback heater terminal 1: 0.14 ± 0.18
SEATBACK HEATER CHECK

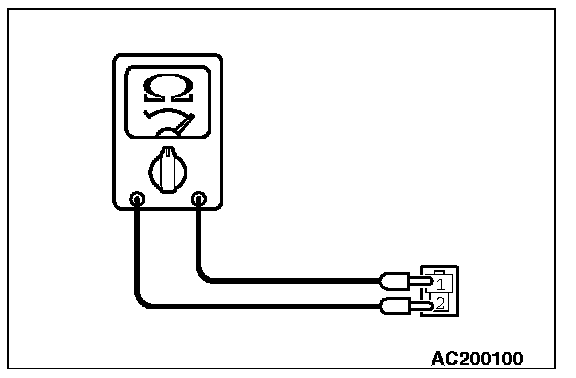

Measure the resistance between terminals.
Standard value: At room temperature 20 ° C (68 ° F)
Between terminals 1 and terminal 2: 5.40 ± 6.60 ohms

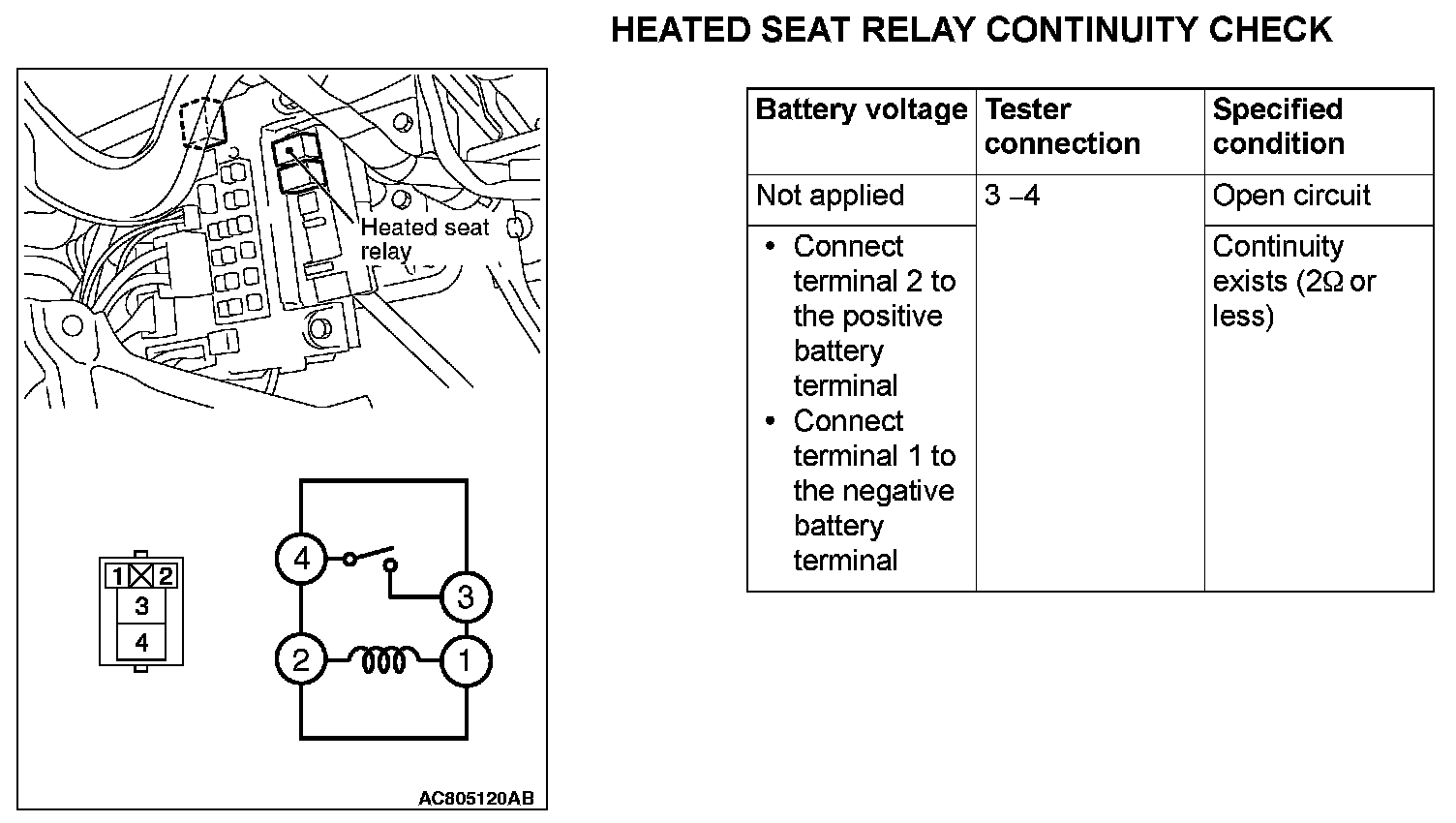

HEATED SEAT RELAY CONTINUITY CHECK
