Front Seat

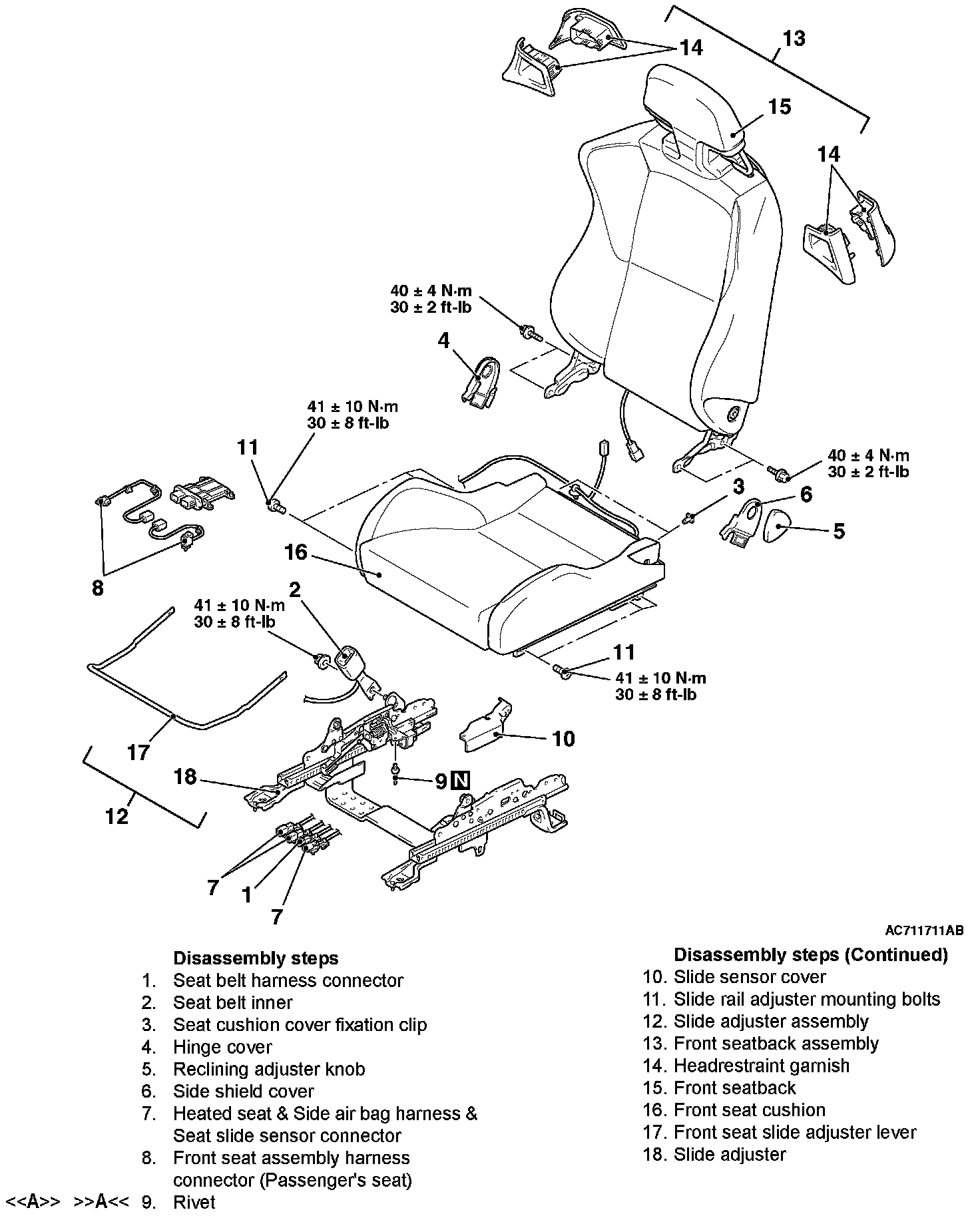

DISASSEMBLY AND ASSEMBLYDisassembly Steps 1-18:
DISASSEMBLY SERVICE POINT

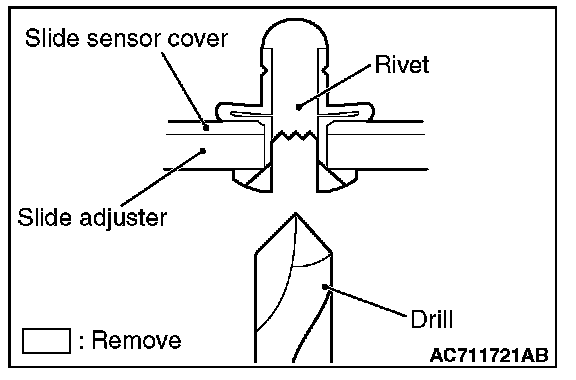

[[A]] RIVETS REMOVAL
Use a drill [6.0 mm (0.24 inch)] to break the rivet by drilling a hole, and remove the rivet from slide adjuster. When breaking it, be careful not to damage the slide adjuster.
REASSEMBLY SERVICE POINT
]]A[[ RIVETS INSTALLATION
Rivet the slide sensor cover to the slide adjuster according to the procedure below.
1. Insert the rivets into the slide sensor cover and slide adjuster.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in the position.
