Sunroof Lid Glass Operation Current Check

SUNROOF LID GLASS OPERATION CURRENT CHECK

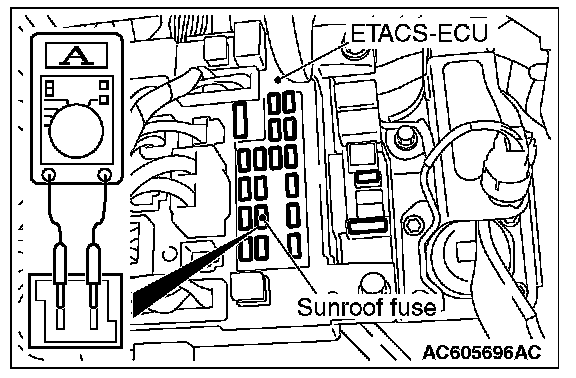

1. Remove the fuse of the sunroof, then connect the circuit tester as shown in the figure.
2. Turn ON the sunroof switch, then measure the operating current when the sunroof lid glass is halfway opened.

Standard value: 7 A or less [at 20 °C (68 °F)]

3. Check the following areas if the operating current exceeds the standard value:
- Sunroof installation, deformation and presence of any foreign substances.
- Drive cable installation.
- Tilting of sunroof lid glass.
