Removal and Replacement

SUNROOF ASSEMBLY REMOVAL AND INSTALLATION

Post-installation Operation:

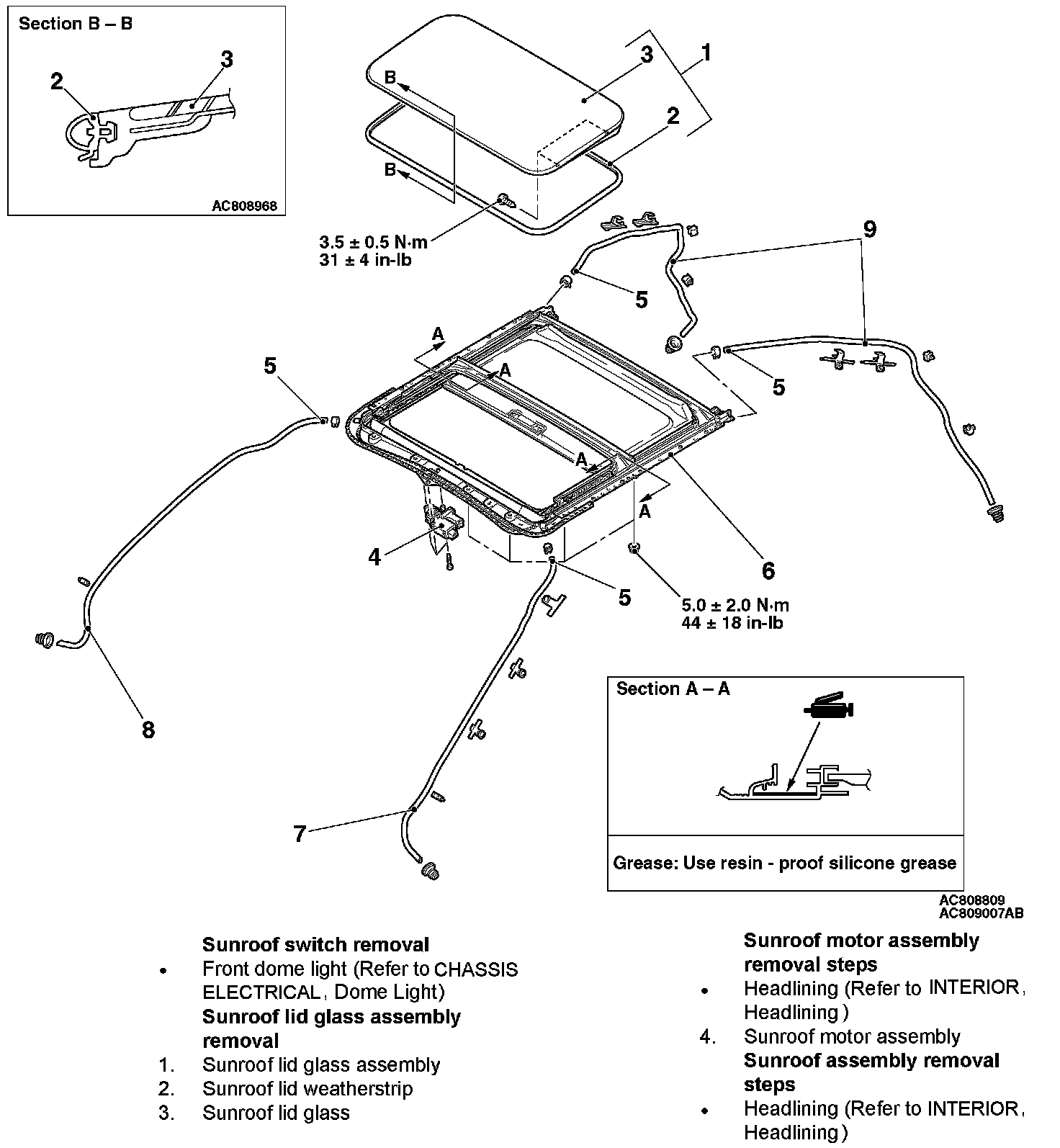

Removal Steps 1-9 (Part 1):

Removal Steps 1-9 (Part 2):

REMOVAL SERVICE POINT

[[A]] SUNROOF ASSEMBLY REMOVAL

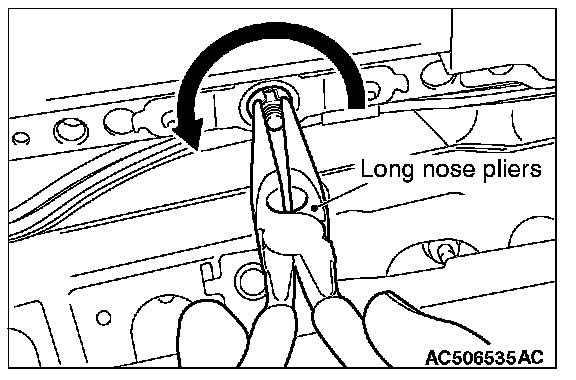

Use a pair of long nose pliers or the like to remove the sunroof assembly while turning it in the direction shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION







Install the grommet, and adjust the drain pipe projection as shown.
